Perc Poly Solar Module 72cells Serial 335/340/345/350W

5BB PID Free Poly solar panel-72cells


  • Certificate :TUV/CE/CEC/INMETRO/SEC/CQC/ISO/FIDE
  • Payment :T/T, L/C, Paypal, Western Union
  • Warranty :25 Years

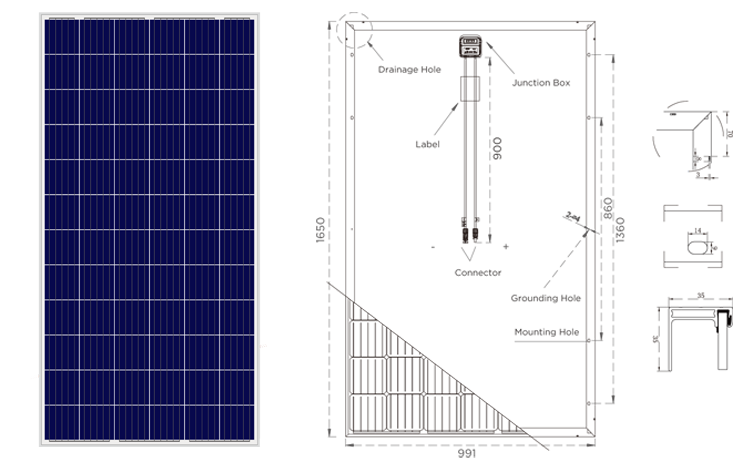

  • Dimensions :1956*991*40mm
  • Max.Power :IP67
  • Type :Up to 18.06%

High-Efficient Poly Crystalline Panel 72 cells 335w/340w/345w/350W Intergrated with PERC Technology use for all type solar application system



Electrical Characteristics (STC)

Module Type

DHP72-335

DHP72-340

DHP72-345

DHP72-350

Maximum Power (Pmax)

335W

340W

345W

350W

Open-circuit Voltage (Voc)

46.3V

46.5V

46.7V

46.9V

Maximum Power Voltage (Vmp)

37.6V

37.7V

37.9V

38.1V

Short-circuit Current (Isc)

9.39A

9.51A

9.62A

9.73A

Maximum Power Current (Imp)

8.91A

9.01A

9.10A

9.19A

Module Efficiency(%)

17.28%

17.54%

17.80%

18.06%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000W/m2, Cell Temperature 25Spectrum AM 1.5



72cells Packing Details

Container

20GP

40GP

40HC

pcs/pallet

27

27

27

pallet/container

10

24

24

pcs/container

270

648

696




First-class solar panel warranty Reliable quality

1.10 years material & technology guarantee

2. 25 years linear power output guarantee

3. 100% Double full EL inspection
4. 0-+5W  Positive power output guarantee


Product Characteristics


· Excellent PID free performance.

· 5 busbar solar cell adopts new technology to improve the efficiency of Mono solar panel , offers a better aesthetic appearance, making it perfect for rooftop installation.

· Higher solar panel conversion efficiency(up to 18.06%) benefit from Passivated Emmiter Rear Contact (PERC) technology.

· Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.

· Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

· Certified anti Salt-mist,anti ammonia corrosion performance,sand and storm test by TUV Rheinland and TUV Nord.
