Advantages of ODI shr ipl opt machine
Durable & Powerful Xenon lamp
ODI ipl uses UK Xenon tube, which guarantees its long lifetime. The lamp’s warranty is 80 000 shots, maximum lifetime is up to 200 000 shots.
Patented RVC(Real Value Calibration)
Real value calibration guarantees precise fluence to match the presetting power,and highly reduce ineffectiveness due to power attenuation. RVC technology makes Ultralite to provide more continuous and precise energy to skin within 80 000 shots flashing.
Big spot size with even energy distribution
It is authorized that the big spot size can make deeper penetration. With a big rectangular spot size of 15X50 mm, UK imported leading rank tube ensures even energy distribution and precise fluence emitting. It obviously increases treatment comfort and efficiency.
Advanced TEC cooling system
TEC is short for thermoelectric semiconductor cooling, offering more comfortable treatment. Unlike traditional IPL machine, water cooling system is only designed to improve the flashing repeating rate, but absolutely no any cooling influence on probe. Adjustable TEC cooling with minimum -4° Cprotects epidermis while hair follicle is acted.
Modular design for easy maintaining
ODI IPL adopts advanced modular design structure, which is not only ensures technical support to machine working, but also offers simple and convenient maintenance.
Technical Parameters of shr ipl opt machine
|
Model
|
OD-E7 shr ipl opt machine
|
|
Wavelength
|
530/640-1200(nm)
|
|
Spot size
|
10*50mm (Selective 15*50mm 50*70mm)
|
|
Handle
|
One handle / Two Hanldes (Optional)
|
|
Cooling system
|
semiconductor+air+water+cooling gel
|
|
IPL light energy
|
1-50(J/cm²)
|
|
Ipl Lamp
|
UK-imported IPL Lamp
|
|
Span Time of lamp
|
80.000 shots
|
|
Pulse Duration
|
1-10ms
|
|
Pulse NO.
|
1-6
|
|
Skin cooling
|
-4°c-10°c
|
|
Display
|
8"color touch screen
|
|
Output power
|
1500W
|
|
SHR width
|
1-10ms
|
|
SHR frequency
|
1-10HZ
|
|
Voltage
|
110V,60HZ or 220V,50HZ
|
|
Package size
|
L99*W63*H77cm (package)
|
|
Weight
|
55kg
|

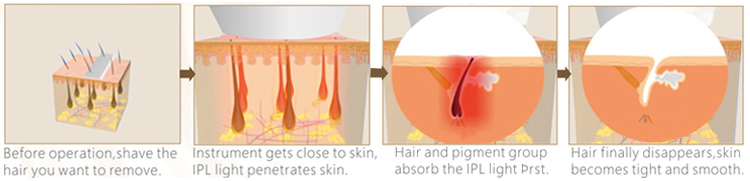

Working Principle of shr ipl opt machine
OPT,SHR, super hair removal, its principle is similar with ipl, but use much larger power source, and more capacitors, so the charge and discharge is much quicker, so send out light very fast, can send out light several times in one second, and the treatment is much quicker. The working theory is heating the dermis to a targeted temperature gradually,it injuries the hair follicles and stops re-growth effectively,at the same time avoiding injury to the surrounding tissue.A high repeating rate of single pulses are delivered deep into the dermis,getting high level power and therapeutically effective heat build-up,without damage and no pain virtually.
Treatment of shr ipl opt machine
A. Remove pigment, sun spot, age spot and acne;
B. Shrink the expansion of facial vascular;
C. Skin rejuvenation: Smooth skin, remove wrinkles and fine lines, restore flexibility and tone of skin;
D. Hair removal: Remove hair on any area of the body;
E. Enhance skin metabolism, skin whitening;
F. Resist face and body to become decrepit;

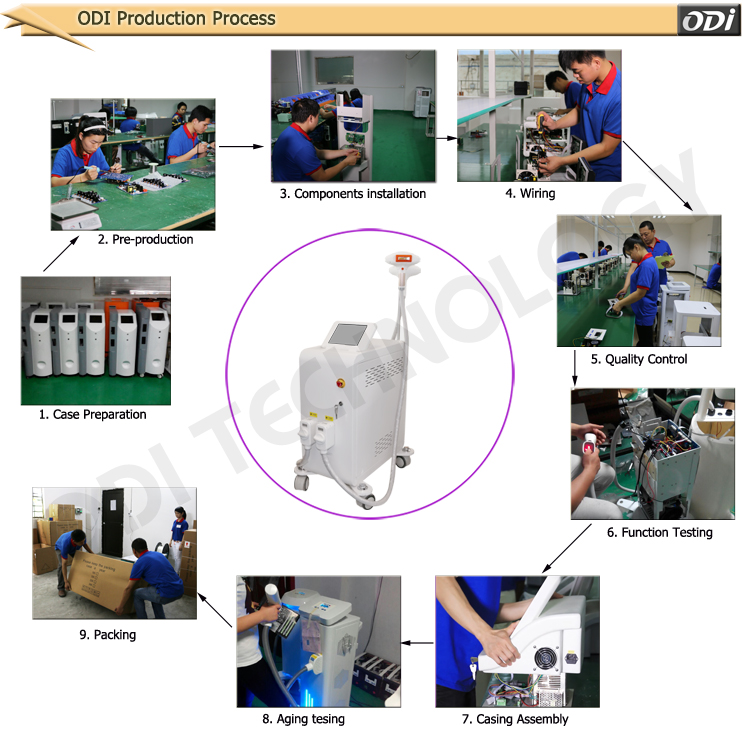

Production Process of shr ipl opt machine
-
ODI Laser have a group of skilled engineers, technicans and production of high quality staff and a sound and stringent production line, which always offer the newest and high quality machines for you.
-
ODI Laser promise that all of beauty machines must be tested well before sending out.
