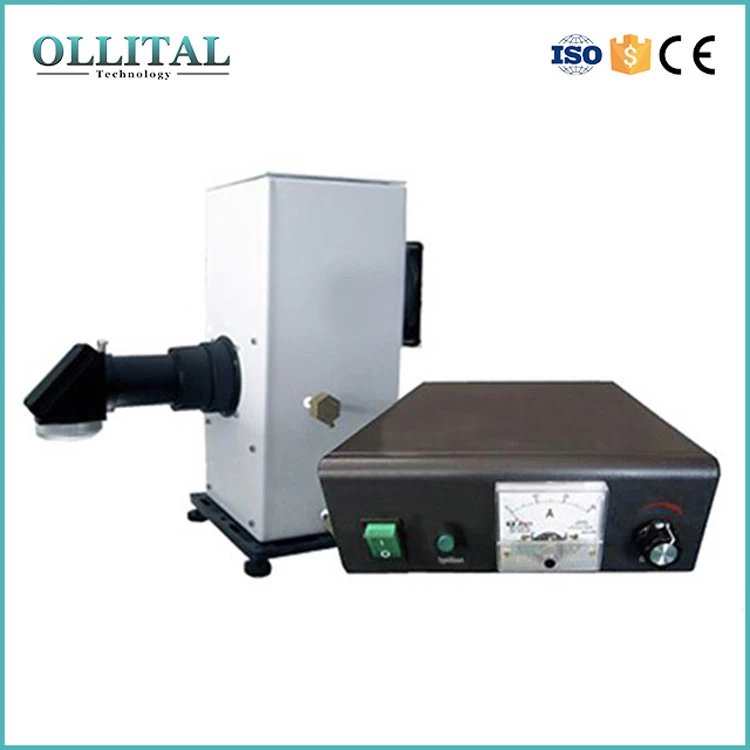

Photochemical Reaction Apparatus Photochemical Reactors With Xenon Lamp
★ Spectral range from UV to VIS(200-2500nm).
★ Optical axis height is 157-193mm.
★ Output beam diameter is 46mm.
★ Supports wide range of accessories.
★ Fan cooled housing
Short arc xenon lamp source
|
|
|
|
|
|
150 ~ 300W continuous adjustable
|
|
|
no less than 1500 h (full power operation)
|
|
|
|
|
|
|
Parallel light spot diameter
|
30 ~ 52 mm (according to the shot distance)
|
Parallel light divergence Angle
|
|
|
|
import metal fan + metal cooling block
|
|
|
ellipsoid total reflection
|
|
|
|
|
|
|
|
|
horizontal, vertical irradiation or arbitrary Angle exposure
(along the optical axis can be free rotation)
|
|
|
transmission rate ≥ 80%;Wavelength range:800 nm - 1100 nm
|
|
|
reflectivity ≥95%;Wavelength range:350 nm - 780 nm
|
Optical filter placed positon
|
|
|
|
special 300 w xenon lamp stability
|
OLLITAL series is mainly applied to research gas / liquid phases, fixed / simulated visible light, could reaction vessel load TiO2, Photochemical reaction under conditions of photocatalyst and so on. This series can provides samples of analytical reacting product and free radical, and to measure reacting kinetic constant, quantum yield; it is widely used in fields of Chemosynthesis, environment protection, and life science, etc.
