Photovoltaic Flat Tile Rook Bracket
This bracket including:
|
Item No
|
|
Description
|
|
HQ-S-CH07
|
|

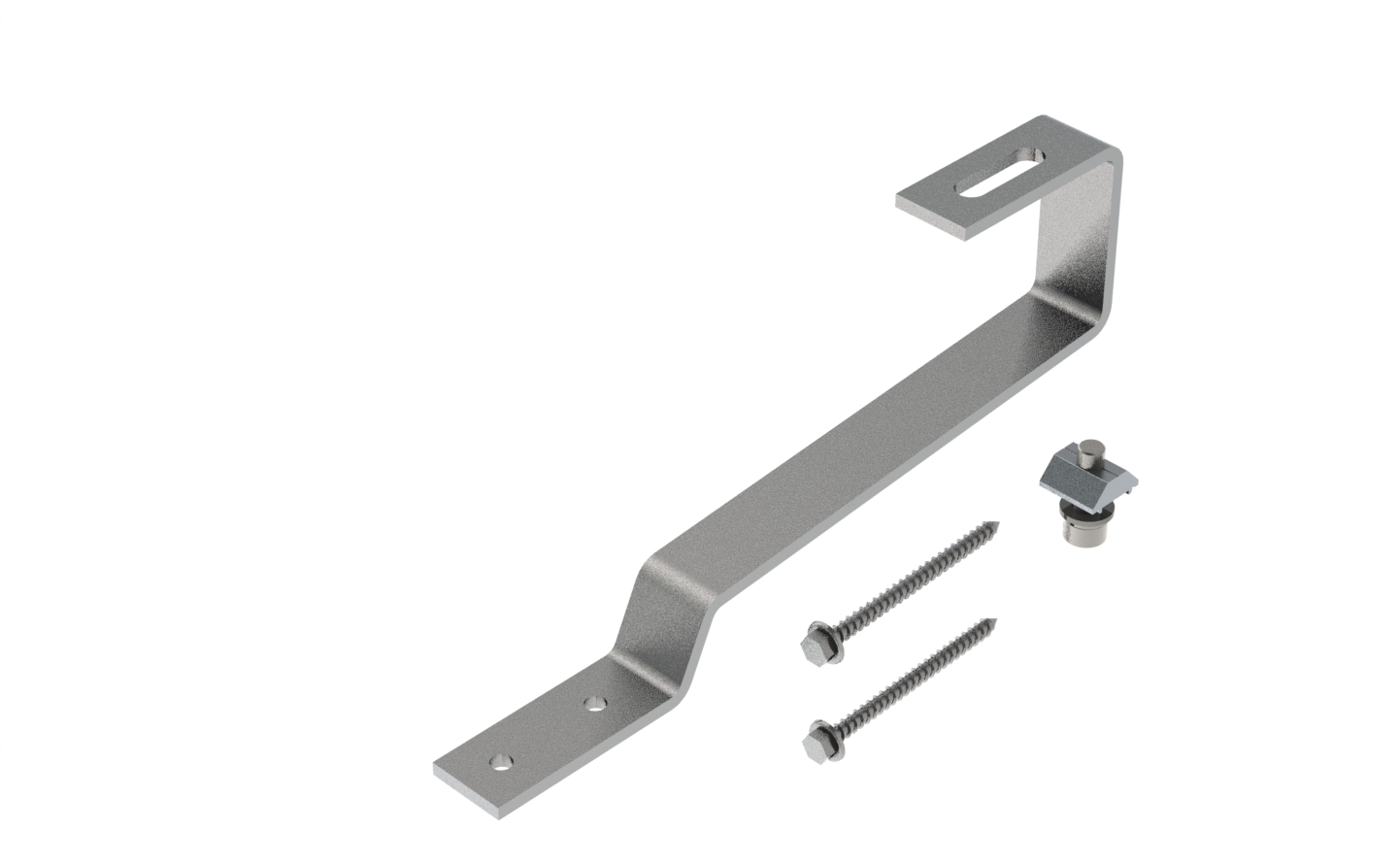

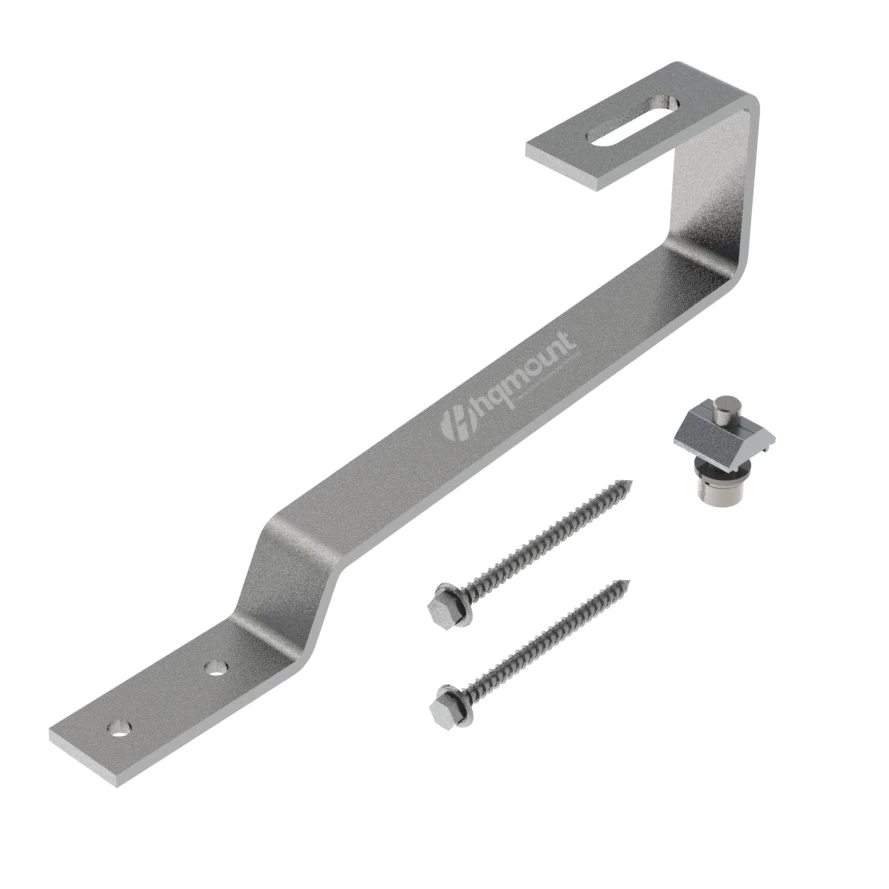

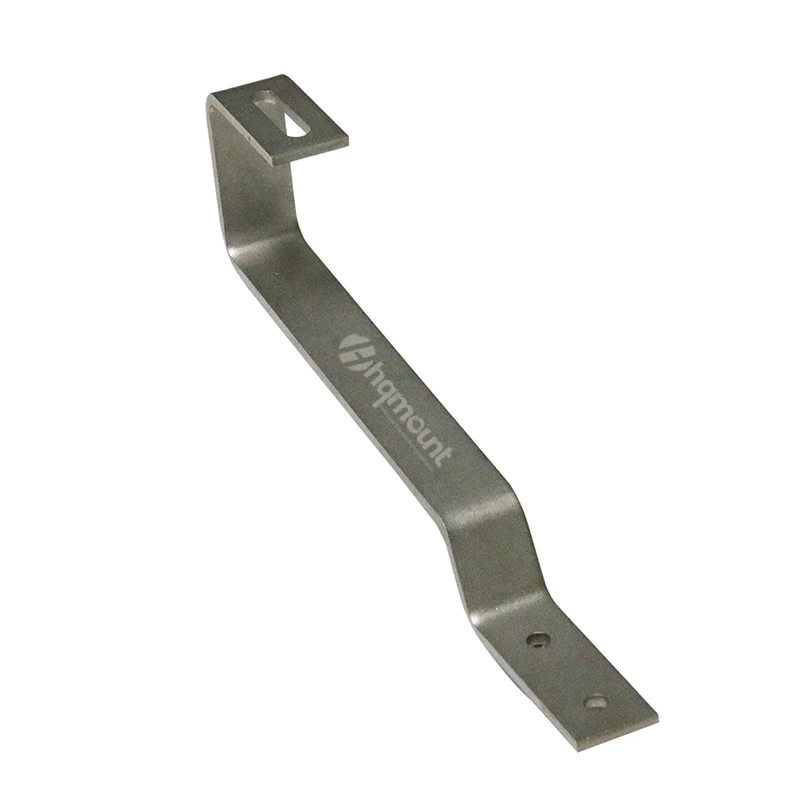

Stainless Steel 304 flat Carp Tile roof Hook with 2pcs sUS 410 wooden screws and Square nut.
The length and height of hook H07 are customized for the specific roof tile.
|
|
HQ-S-H42
|
|
Aluminum AL6005-T5 h42 Solar panel Profile with length 1000mm， 1250mm, 2000mm, 3000mm, 5000mm available. (Other types of aluminum rails are customized.)
solar Beam with H shape are easy to install with Hooks and solar panels.
|
|
HQ-S-SP42
|
|
Aluminum AL6005-T5 & SUS304 profile Splice with length 150mm.
Easy to fasten two solar aluminum profiles together with strong strength.
|
|
HQ-S-IC02
|
|
Aluminum AL6005-T5 & SUS304 solar Panel Mid Clamp for framed panels from 30mm-60mm.
|
|
HQ-S-EC03
|
|
Aluminum AL6005-T5 & SUS304 Solar Panel End Clamp For Framed Panels From 30mm-60mm.
|
HQMOUNT SGS Approved V2A Stainless Steel Metal Solar Mounting Long Roofing Hooks bracket are:
* Factory ready product, quick lead time
* manufacturer direct price without extra trading costs
* SGS, ISO, Patent approved to ensure quality issue
* 12 years warranty

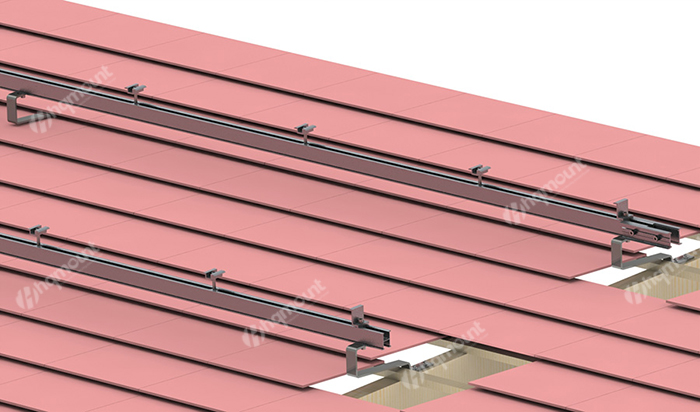

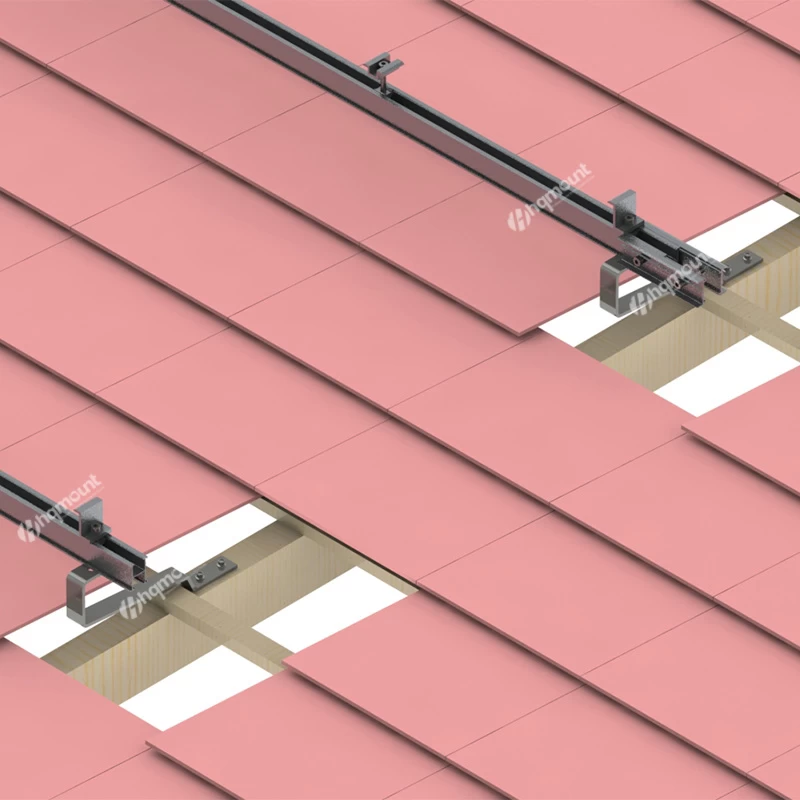

Installation
Step one: remove tiles
step two: fasten the flat tile hook to the purlin horizontal and steady
step three: repeat the above steps and keep all the hooks at the same line
step four: fasten the H beam to the solar hooks with square nut bolt
step five: fasten the solar panels on rails with mid clamps and end clamps
