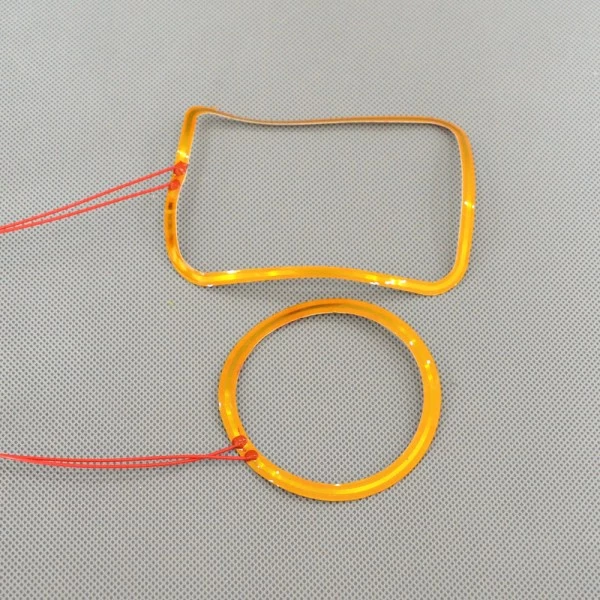

Characteristics of PI heating film:

Main material :(0.05-0.15mm)PI film+(0.03-0.1mm)nichrome+(0.05-0.15mm)PI film

Physical and electrical characteristics

Voltage range :0-600VAC/DC

Maximum operation temperature:200℃（Long term below 180℃ ）

Dielectric Strength :≥1500VAC/MIN

Ambient temperature range:-40℃~250℃

Insulation Resistance:≥100MΩ

Thickness: 0.3mm

Specifications of the products: custom made

Color:Yellow transparent

Recommended power density: 0.15~0.6W/cm²

Mechanical compressive strength :100KG/cm²

Density of maximum power:0-1W/cm²

Tension of guide line:≥80N

Working life: 5-10years

Tension of welding point:≥20N

Packing & Delivery :

PP Bag and Carton Box. or other required packing .

Samples can be shipped within 3 days.

Large quantity shipped within 10 days.
