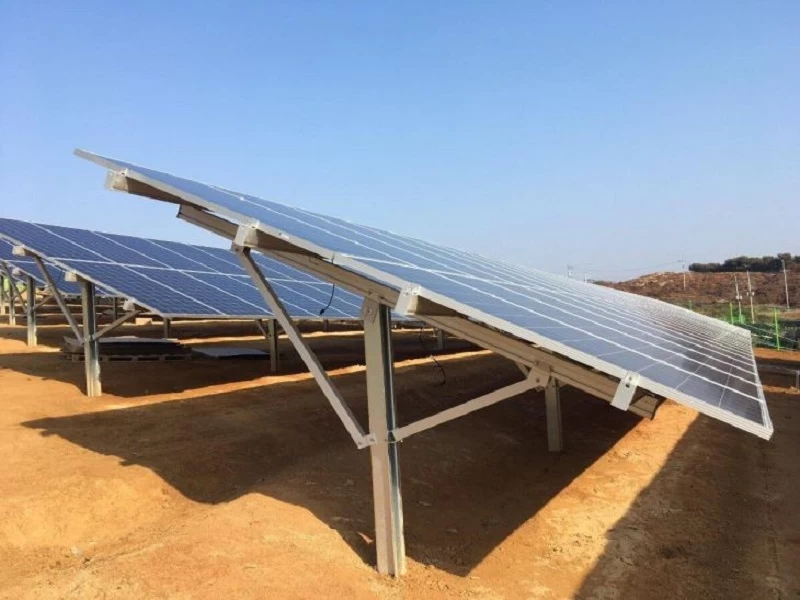

Pile Solar Ground Mounting System

Pile Solar Ground Mounting System is one kind of driven-pile system, servicing for large-scale MW solar farms.


  • Installation SiteGround
  • FoundationRamming Pile
  • Panel TypeFramed & Frameless
  • HS Code76109000 & 73089000
  • Tilt Angle0°~60°

Pile Ground Mounting System

Pile Solar Ground Mounting System is one kind of driven-pile system, servicing for large-scale MW solar farms.



Pole Ground Mounting



Material
   AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty







pile driven mounting mounting system


System Overview


frameless module solar mount






Highly pre-assembled before shipment, save your onsite labor cost


Check and test Structure strictly for the use in extreme weather and geographical conditions.


Well install Solar Ground Mounting System on mountainous/slope without extensive land leveling, saving installers more cost.


15 years' warranty, 25 years' life span




ground mounting system installation procedure


solar plant installation steps
