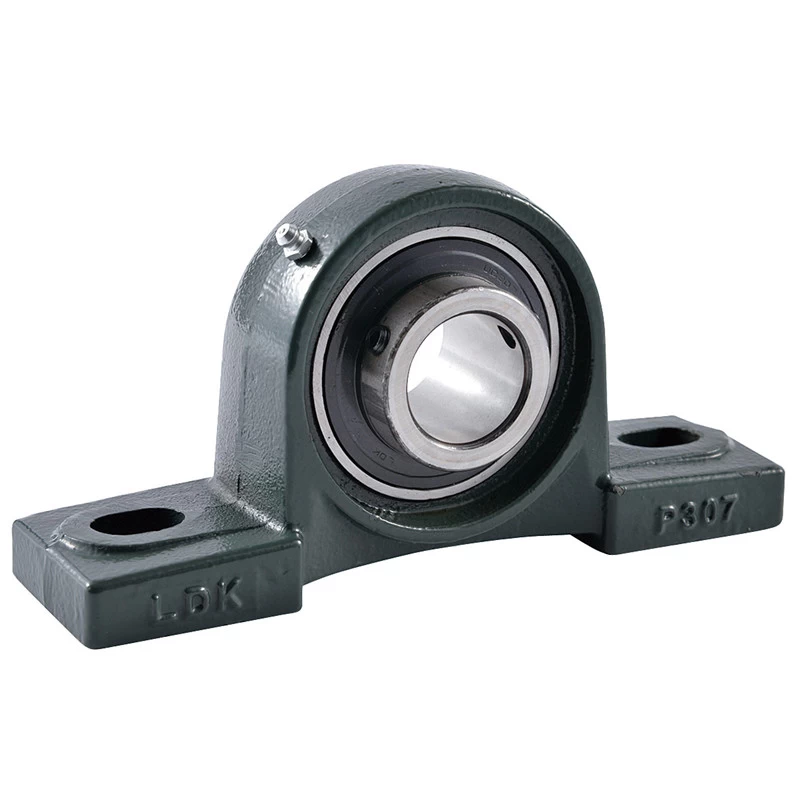

Unit No
|
Shaft d
|

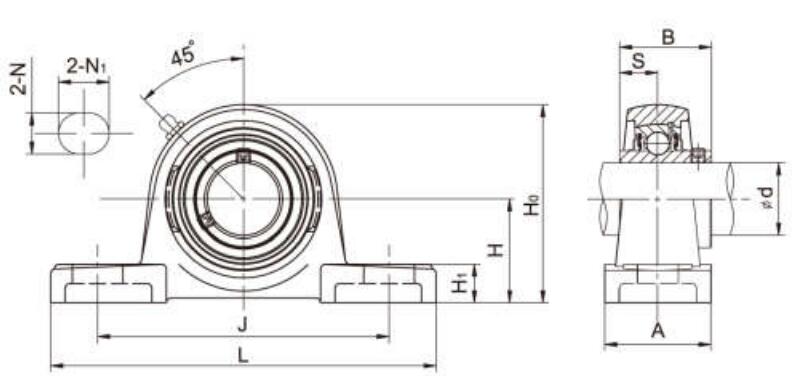

Dimensions (mm)
|
Bolt size (mm)
|
Weight (kg)
|
|
(mm)
|
H
|
L
|
J
|
A
|
N
|
N1
|
H1
|
Ho
|
B
|
s
|
|
UCP305
|
25
|
45
|
175
|
132
|
45
|
17
|
20
|
16
|
85
|
38
|
15
|
M14
|
1.40
|
|
UCP306
|
30
|
50
|
180
|
140
|
50
|
17
|
20
|
18
|
95
|
43
|
17
|
M14
|
1.80
|
|
UCP307
|
35
|
56
|
210
|
160
|
56
|
17
|
25
|
20
|
106
|
48
|
19
|
M14
|
2.80
|
|
UCP308
|
40
|
60
|
220
|
170
|
60
|
17
|
25
|
24
|
116
|
52
|
19
|
M14
|
3.08
|
|
UCP309
|
45
|
67
|
245
|
190
|
67
|
20
|
30
|
25
|
129
|
57
|
22
|
M16
|
4.10
|
|
UCP310
|
50
|
75
|
275
|
212
|
75
|
20
|
35
|
27
|
143
|
61
|
22
|
M16
|
6.00
|
|
UCP311
|
55
|
80
|
310
|
236
|
80
|
20
|
38
|
30
|
154
|
66
|
25
|
M16
|
7.40
|
|
UCP312
|
60
|
85
|
330
|
250
|
85
|
25
|
38
|
32
|
165
|
71
|
26
|
M20
|
9.40
|
|
UCP313
|
65
|
90
|
335
|
260
|
90
|
25
|
38
|
33
|
176
|
75
|
30
|
M20
|
10.00
|
|
UCP314
|
70
|
95
|
360
|
280
|
90
|
27
|
40
|
35
|
187
|
78
|
33
|
M22
|
12.00
|
|
UCP315
|
75
|
100
|
380
|
290
|
100
|
27
|
40
|
35
|
198
|
82
|
32
|
M22
|
14.00
|
|
UCP316
|
80
|
106
|
400
|
300
|
110
|
27
|
40
|
40
|
210
|
86
|
34
|
M22
|
18.00
|
|
UCP317
|
85
|
112
|
420
|
320
|
110
|
33
|
45
|
40
|
220
|
96
|
40
|
M27
|
20.00
|
|
UCP318
|
90
|
118
|
430
|
330
|
110
|
33
|
45
|
45
|
235
|
96
|
40
|
M27
|
24.00
|
|
UCP319
|
95
|
125
|
470
|
360
|
120
|
36
|
50
|
46
|
250
|
103
|
41
|
M30
|
26.50
|
|
UCP320
|
100
|
140
|
490
|
380
|
120
|
36
|
50
|
50
|
275
|
108
|
42
|
M30
|
34.30
|
|
UCP321
|
105
|
140
|
490
|
380
|
120
|
36
|
50
|
50
|
280
|
112
|
44
|
M30
|
36.60
|
|
UCP322
|
110
|
150
|
520
|
400
|
140
|
40
|
55
|
55
|
300
|
117
|
46
|
M33
|
42.50
|
|
UCP324
|
120
|
160
|
570
|
450
|
140
|
40
|
55
|
65
|
320
|
126
|
51
|
M33
|
53.50
|
|
UCP326
|
130
|
180
|
600
|
480
|
140
|
40
|
55
|
75
|
355
|
135
|
54
|
M33
|
72.10
|
|
UCP328
|
140
|
200
|
620
|
500
|
140
|
40
|
55
|
75
|
390
|
145
|
59
|
M33
|
89.10
|
Notes:1.Grease fittings avaiable at 90° positions.
2.Bearing housing solid base optional,add suffix SB as designation.
