Pillow Block Bearing Units UCAK2


UCAK Standard duty,Wider inner ring bearing, Low center height housing,Setscrew locking,Cast gray iron housing.

Cast ductile iron housing available upon request.



Facebook Twitter Pinterest LinkedIn 分享

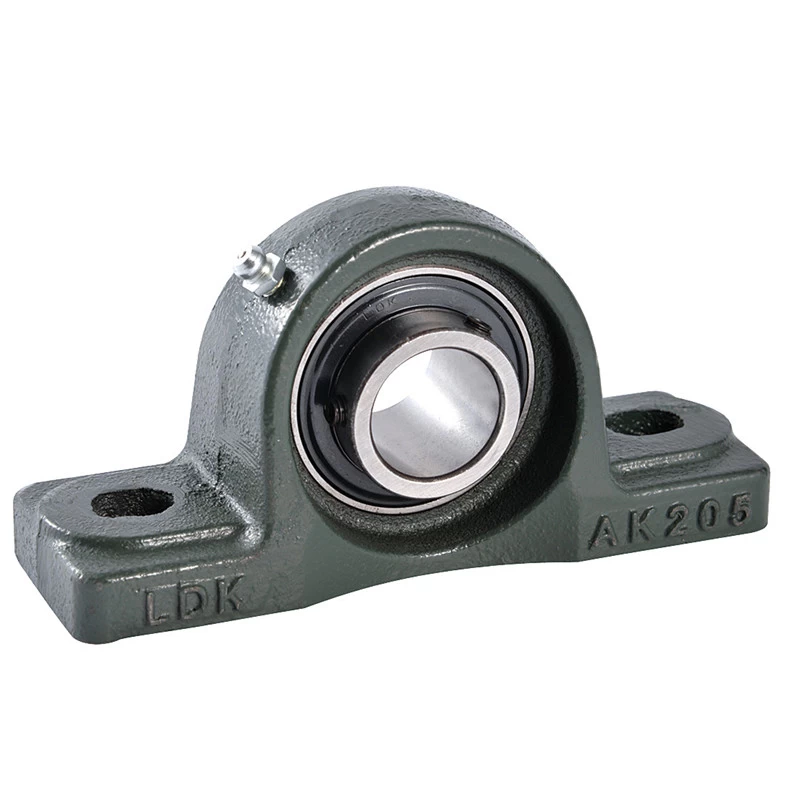

Cast iron Houseing Units UCAK205

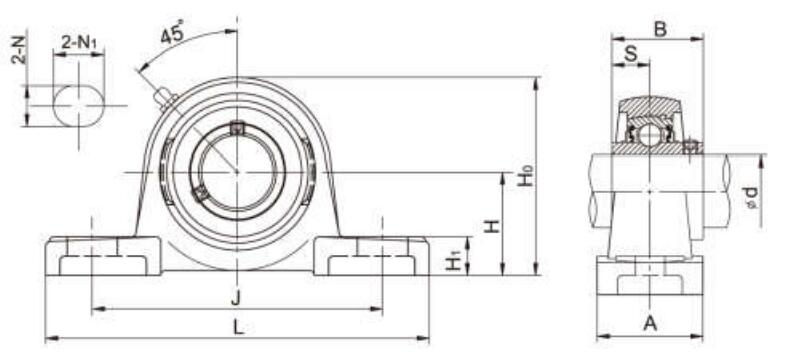

Unit No. Shaft Dia Dimensions (mm) Bolt Weight
d H L J A N N1 H1 Ho B s Size (mm) (kg)
(in) (mm)
UCAK201   12 27 121 89 35 12 16 13 54 26 10 M10 0.74
UCAK201-8 1/2   27 121 89 35 12 16 13 54 26 10 M10 0.74
UCAK202   15 27 121 89 35 12 16 13 54 26 10 M10 0.74
UCAK202-10 5/8   27 121 89 35 12 16 13 54 26 10 M10 0.74
UCAK203   17 27 121 89 35 12 16 13 54 26 10 M10 0.74
UCAK204  20 31.8 133 98 41 12 16 14.3 64 31 12.7 M10 0.77
UCAK204-12 3/4   31.8 133 98 41 12 16 14.3 64 31 12.7 M10 0.77
UCAK205   25 33.3 140 105 45 12 16 16 68 34 14.3 M10 0.91
UCAK205-13 13/16   33.3 140 105 45 12 16 16 68 34 14.3 M10 0.91
UCAK205-14 7/8   33.3 140 105 45 12 16 16 68 34 14.3 M10 0.91
UCAK205-15 15/16   33.3 140 105 45 12 16 16 68 34 14.3 M10 0.91
UCAK205-16 1   33.3 140 105 45 12 16 16 68 34 14.3 M10 0.91
UCAK206   30 39.7 160 121 48 15 19 17 80 38.1 15.9 M12 1.27
UCAK206-17 1-1/16   39.7 160 121 48 15 19 17 80 38.1 15.9 M12 1.27
UCAK206-18 1-1/8   39.7 160 121 48 15 19 17 80 38.1 15.9 M12 1.27
UCAK206-19 1-3/16   39.7 160 121 48 15 19 17 80 38.1 15.9 M12 1.27
UCAK206-20 1-1/4   39.7 160 121 48 15 19 17 80 38.1 15.9 M12 1.27
UCAK207   35 46 167 127 48 15 19 1S 92 42.9 17.5 M12 1.59
UCAK207-20 1-1/4   46 167 127 48 15 19 1S 92 42.9 17.5 M12 1.59
UCAK207-21 1-5/16   46 167 127 48 15 19 1S 92 42.9 17.5 M12 1.59
UCAK207-22 1-3/8   46 167 127 48 15 19 1S 92 42.9 17.5 M12 1.59
UCAK207-23 1-7/16   46 167 127 48 15 19 1S 92 42.9 17.5 M12 1.59
UCAK208   40 49.2 181 140 54 15 19 19 100 49.2 19 M12 2.06
UCAK208-24 1-1/2   49.2 181 140 54 15 19 19 100 49.2 19 M12 2.06
UCAK208-25 1-9/16   49.2 181 140 54 15 19 19 100 49.2 19 M12 2.06
UCAK209   45 52.4 190 146 54 15 19 21 106 49.2 19 M12 2.33
UCAK209-26  1-5/8    52.4 190 146 54 15 19 21 106 49.2 19 M12 2.33
UCAK209-27 1-11/16   52.4 190 146 54 15 19 21 106 49.2 19 M12 2.33
UCAK209-28 1-3/4   52.4 190 146 54 15 19 21 106 49.2 19 M12 2.33
UCAK210   50 55.6 203 159 57 15 19 22 113 51.6 19 M12 2.68
UCAK210-29 1-13/16   55.6 203 159 57 15 19 22 113 51.6 19 M12 2.68
UCAK210-30 1-7/8   55.6 203 159 57 15 19 22 113 51.6 19 M12 2.68
UCAK210-31 1-15/16   55.6 203 159 57 15 19 22 113 51.6 19 M12 2.68
UCAK210-32 2   55.6 203 159 57 15 19 22 113 51.6 19 M12 2.68
UCAK211   55 61.9 232 181 60 20 24 25 125 55.6 22.2 M16 3.62
UCAK211-32 2   61.9 232 181 60 20 24 25 125 55.6 22.2 M16 3.62
UCAK211-33 2-1/16   61.9 232 181 60 20 24 25 125 55.6 22.2 M16 3.62
UCAK211-34 2-1/8   61.9 232 181 60 20 24 25 125 55.6 22.2 M16 3.62
UCAK211-35 2-3/16   61.9 232 181 60 20 24 25 125 55.6 22.2 M16 3.62
UCAK212   60 68.3 241 190 64 20 24 29 138 65.1 25.4 M16 4.61
UCAK212-36 2-1/4   68.3 241 190 64 20 24 29 138 65.1 25.4 M16 4.61
UCAK212-37 2-5/16   68.3 241 190 64 20 24 29 138 65.1 25.4 M16 4.61
UCAK212-38 2-3/8   68.3 241 190 64 20 24 29 138 65.1 25.4 M16 4.61
UCAK212-39 2-7/16   68.3 241 190 64 20 24 29 138 65.1 25.4 M16 4.61
UCAK213   65 68.3 248 194 70 22 29 27 141 65.1 25.4 M20 6.42
UCAK213-40 2-1/2   68.3 248 194 70 22 29 27 141 65.1 25.4 M20 6.42
UCAK213-41 2-9/16   68.3 248 194 70 22 29 27 141 65.1 25.4 M20 6.42
UCAK214   70 82.6 294 232 72 22 32 29 160 74.6 30.2 M20 7.18
UCAK214-42  2-5/8    82.6 294 232 72 22 32 29 160 74.6 30.2 M20 7.18
UCAK214-43 2-11/16   82.6 294 232 72 22 32 29 160 74.6 30.2 M20 7.18
UCAK214-44 2-3/4   82.6 294 232 72 22 32 29 160 74.6 30.2 M20 7.18
UCAK215   75 84.1 304 241 74 22 32 32 165 77.8 33.3 M20 8.86
UCAK215-45 2-13/16   84.1 304 241 74 22 32 32 165 77.8 33.3 M20 8.86
UCAK215-46 2-7/8   84.1 304 241 74 22 32 32 165 77.8 33.3 M20 8.86
UCAK215-47 2-15/16   84.1 304 241 74 22 32 32 165 77.8 33.3 M20 8.86
UCAK215-48 3   84.1 304 241 74 22 32 32 165 77.8 33.3 M20 8.86



Notes:1.Grease fittings avaiable at 90° positions.

         2.Bearing housing solid base optional,add suffix SB as designation.
