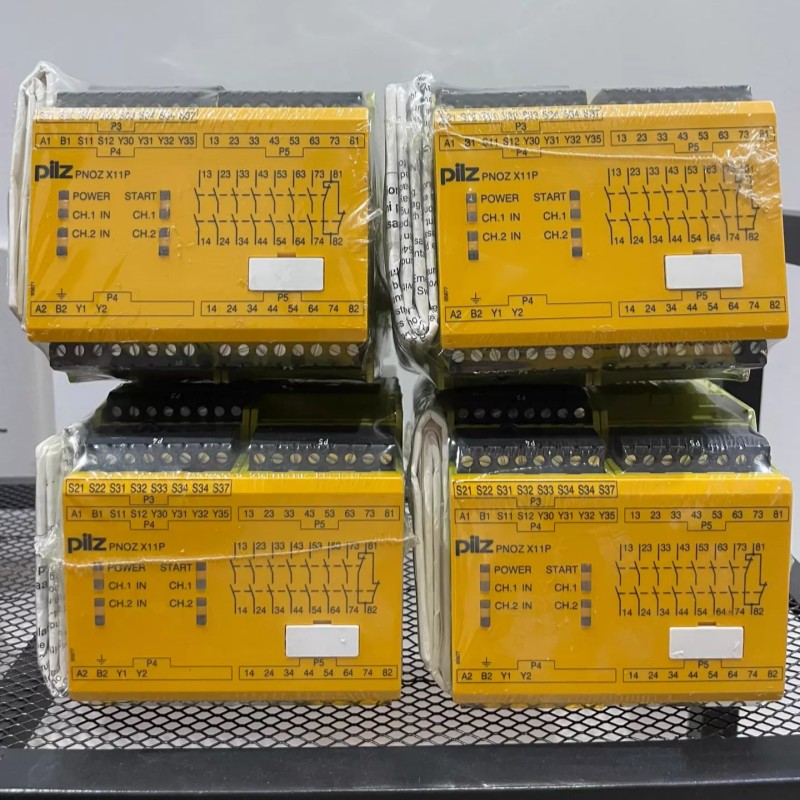

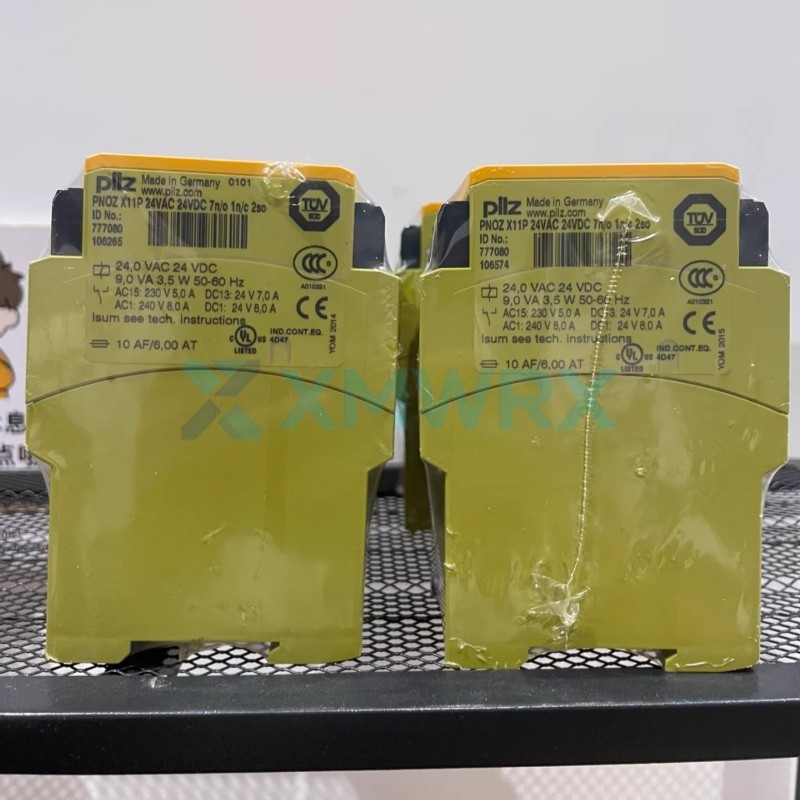

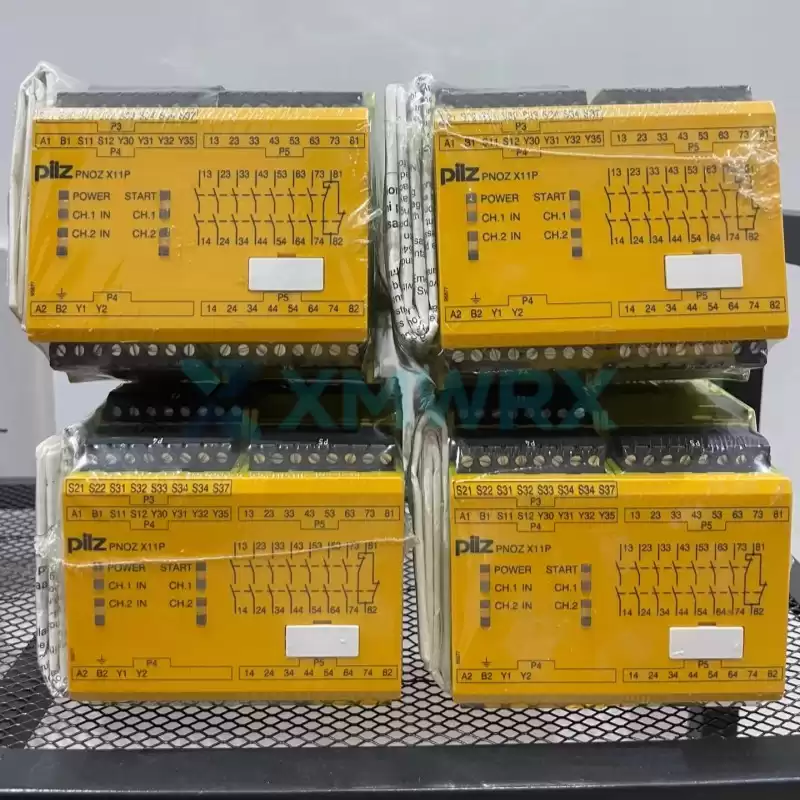

Pilz 777080 PNOZ X11P 24VAC 24VDC 7n/o 1n/c 2so Independent safety relay

Core Features

• ✓  Safety Monitoring: Connects to emergency stop buttons, safety door switches, safety light curtains, etc., safely cutting off dangerous circuits when an anomaly is triggered.
• ✓  Contact Configuration: Equipped with multiple safety contacts (typically normally open) and auxiliary contacts, supporting redundant circuit design to ensure high system-level reliability.
• ✓  Environmental Adaptability: Utilizes an industrial-grade flame-retardant housing and metal base, providing excellent shock resistance, dustproofing, and interference resistance, suitable for harsh industrial environments.
• ✓  Compact Design: Employs a compact design, requiring minimal space in the control cabinet, shortening installation and commissioning time, and simplifying the commissioning process.
•

Q: How exactly do I use the diagnostic functions of this relay?

A: The diagnostic functions of Pilz safety relays are designed to help engineers quickly locate faults and restore equipment operation. For the relay you inquired about, its diagnostic functions are primarily achieved through three levels: visual diagnostics via panel LED indicators, in-depth diagnostics via external software/network, and reset testing.

Q: Which communication protocols does this relay support?

A: The 777080 (PNOZ X11P) is a pure hardware logic safety relay and does not have a communication interface. If your project requires communication functionality, it is recommended to choose the PNOZmulti2 or other intelligent safety controller series that support communication protocols.

Q: What are the advantages of PNOZmulti2 compared to X11P?

A: As a small programmable safety controller launched by Pilz, PNOZmulti2 has significant advantages over the traditional PNOZ X11P safety relay in terms of flexibility, integration, diagnostic capabilities, and engineering efficiency.
