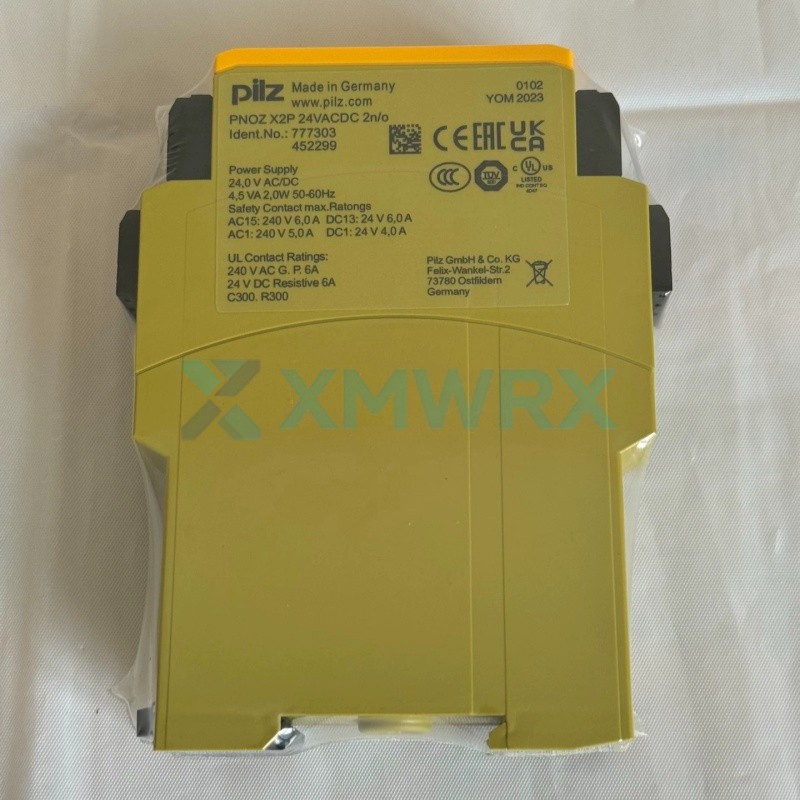

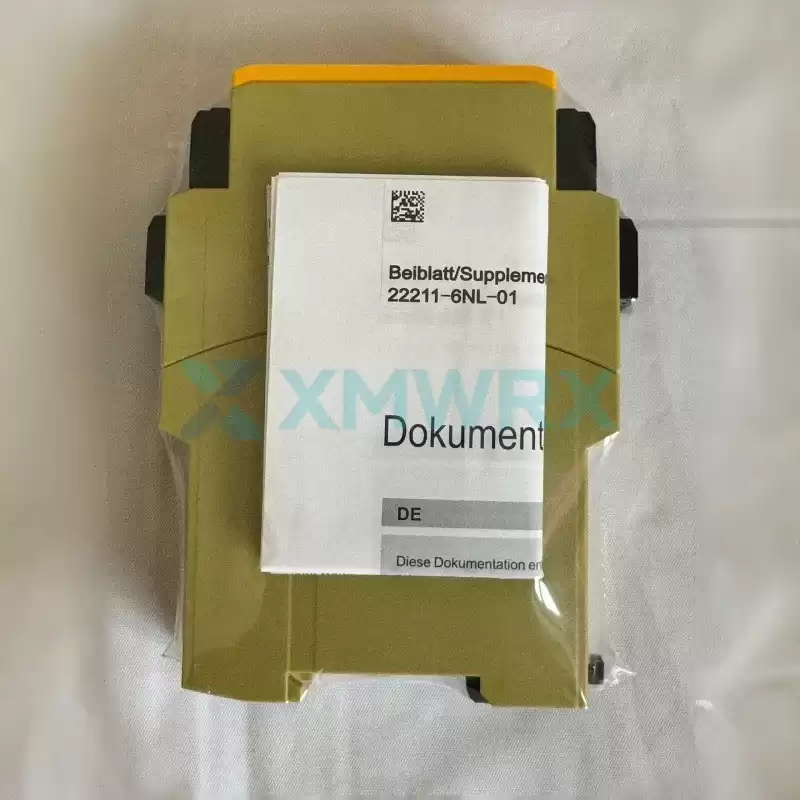

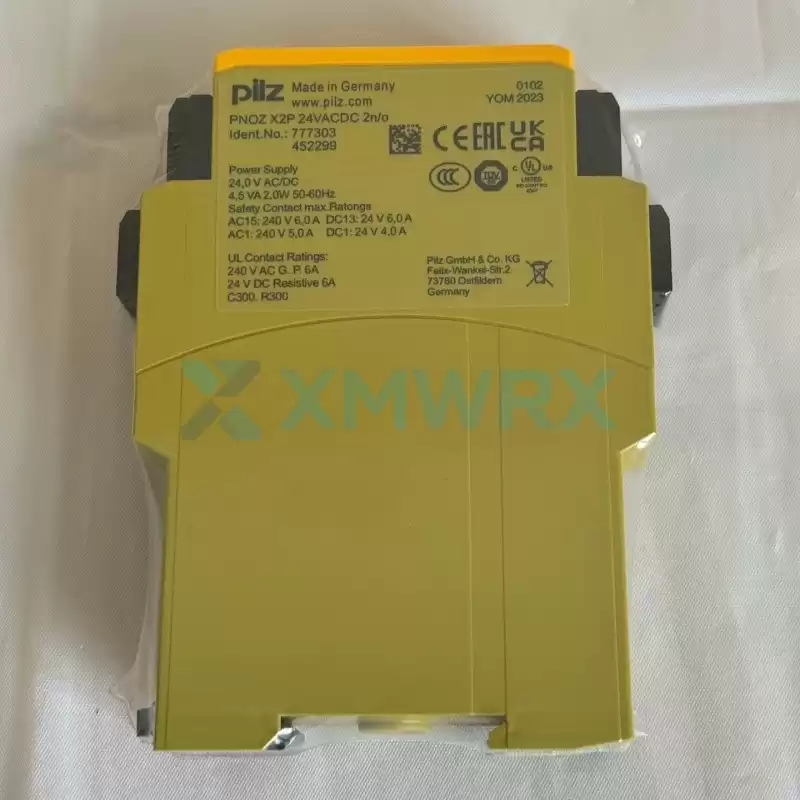

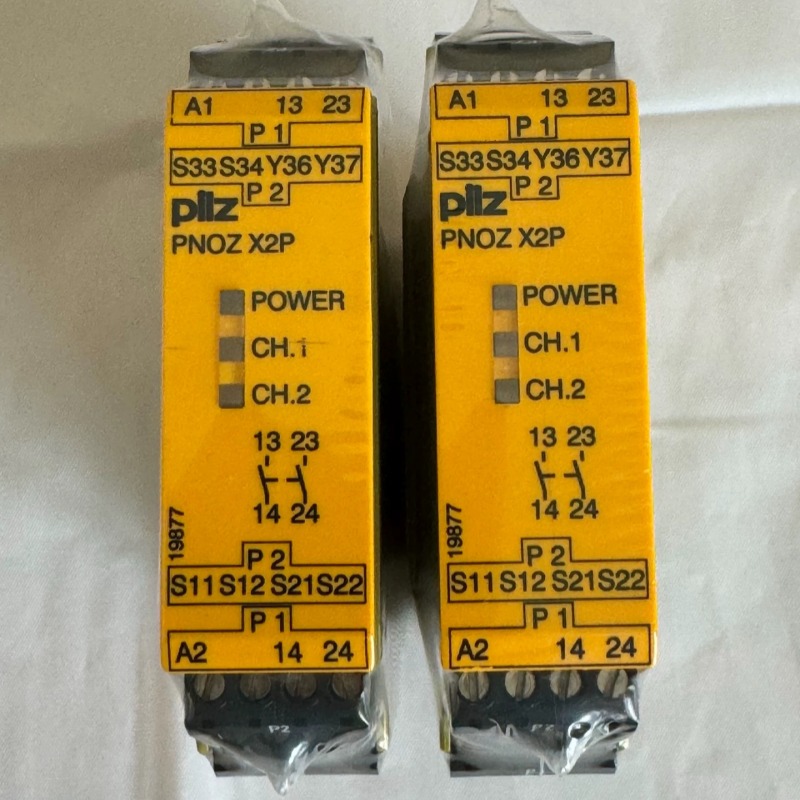

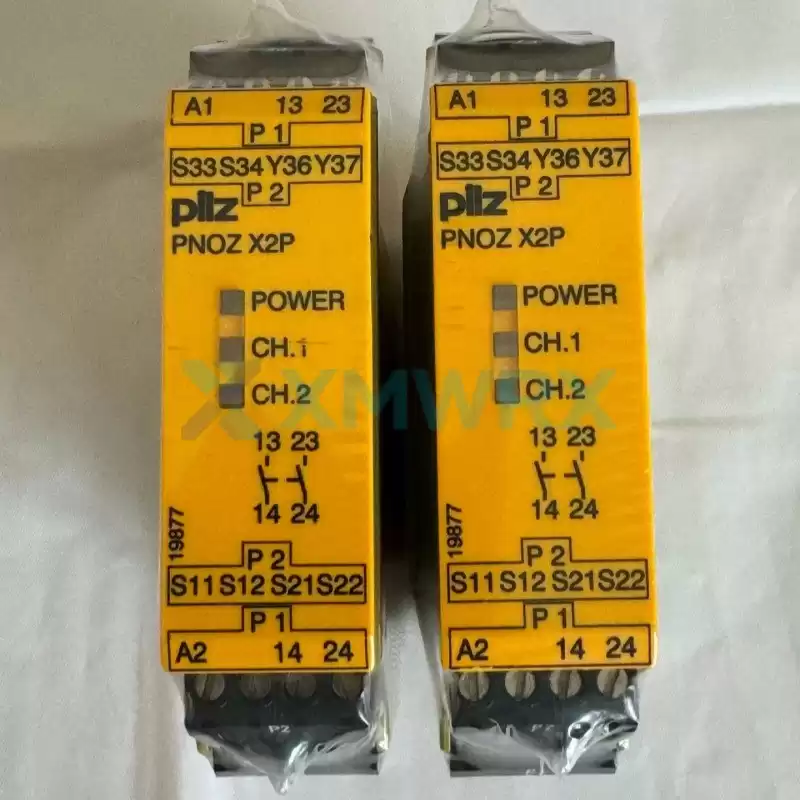

Pilz 777303 PNOZ X2P 24VACDC 2n/o Safety relay

Core Features

• ✓  Power Supply Voltage: 24V AC/DC (AC/DC compatible)
• ✓  Safety Output: Provides 2 normally open (N/O) safety contact outputs.
• ✓  Input Channels: Supports 1 or 2-channel wiring and features short-circuit detection between contacts.
• ✓  Starting Modes: Supports automatic start, manual start, and monitored manual start to meet various safety control requirements.
• ✓  Load Capacity: Maximum control current is 6A under AC1/DC1 standards; maximum control current is 5A under AC15 standards.

Q: What are the core advantages of this safety relay?

A: The core advantage of the PILZ 777303 (PNOZ X2P) safety relay lies primarily in how it differentiates itself from ordinary relays, thus providing ultimate safety in industrial environments. Simply put, its advantages can be summarized as "fail-safe design" and "extreme engineering ease of use."

Q: What are its specific wiring methods?

A: The PNOZ X2P (777303) safety relay offers highly flexible wiring options to adapt to various safety control needs. Its wiring mainly consists of four core parts: power supply, safety input, reset/start, and safety output. Please contact me for more detailed information.

Q: What are the common faults of this relay?

A: In practical use, common faults of the PNOZ X2P (777303) usually fall into the categories of "failure to reset/failure to engage," "false alarms/frequent tripping," and "abnormal indicator lights." Often, the relay error is not due to a faulty relay itself, but rather to problems with external wiring, external devices, or parameter settings.
