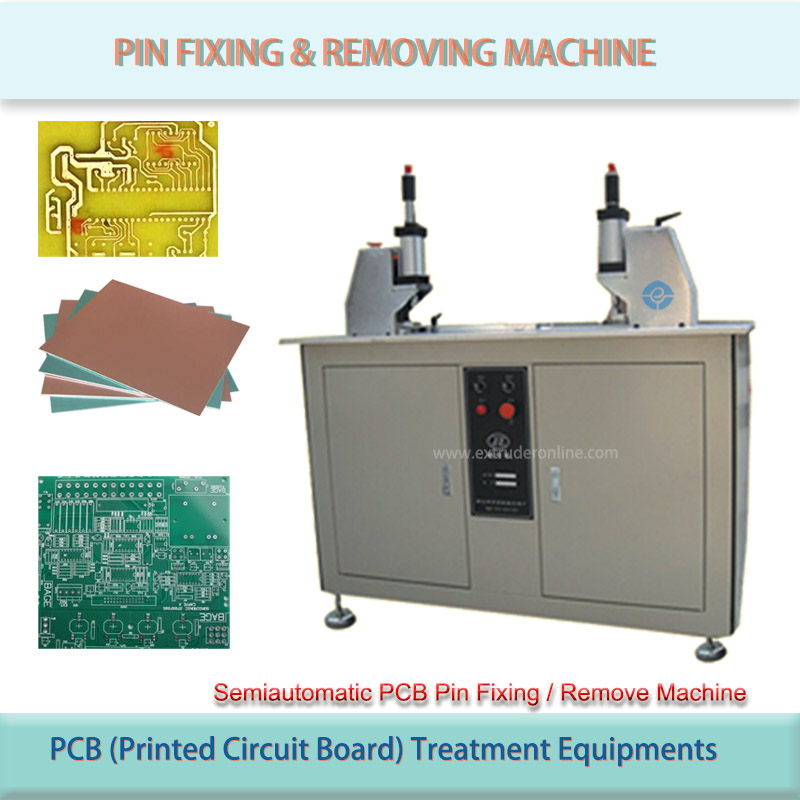

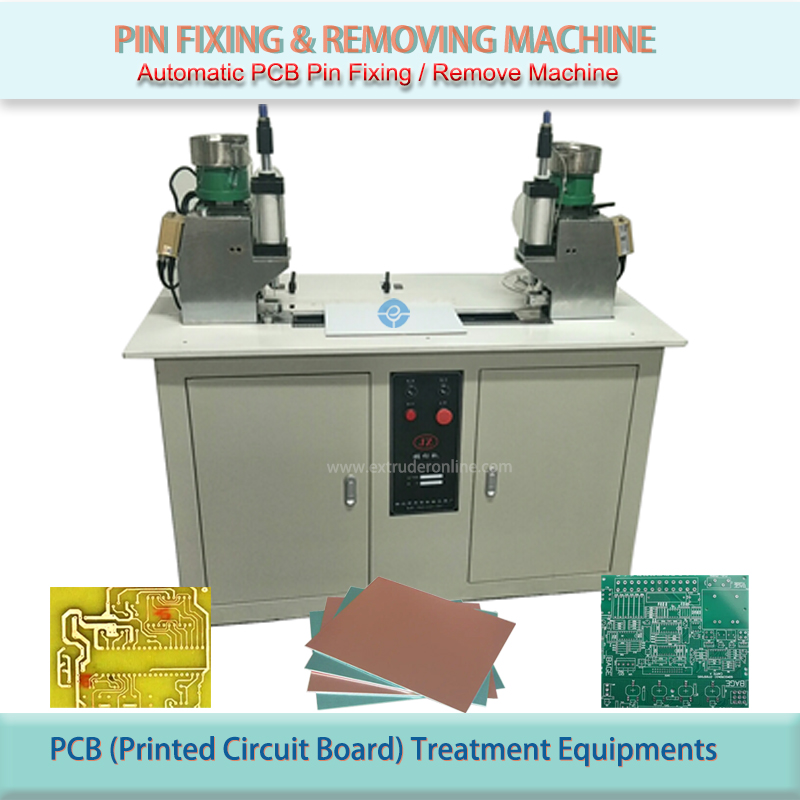

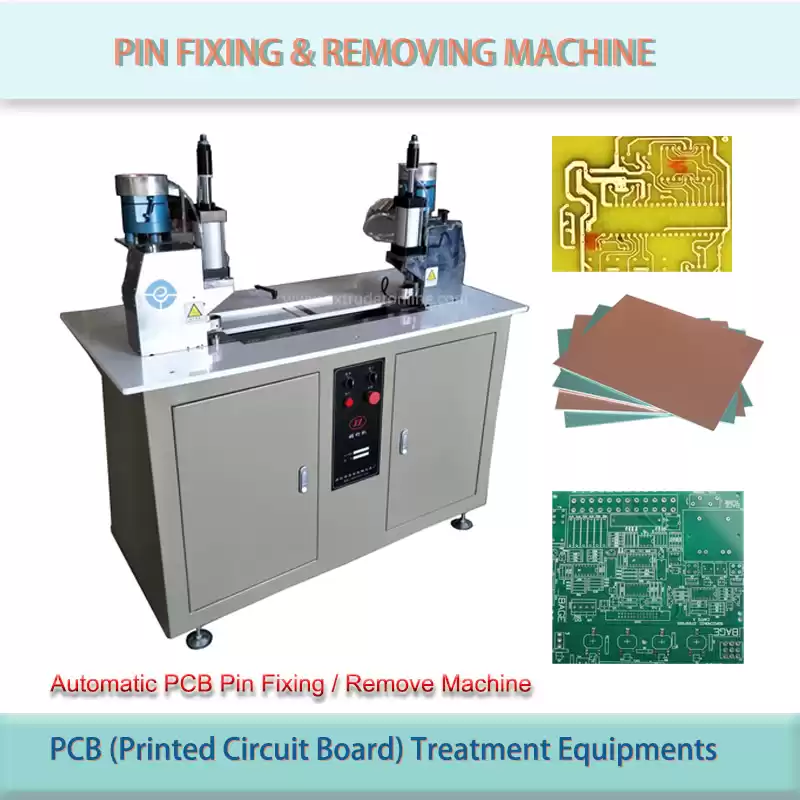

PIN FIXING & REMOVING MACHINE FOR PCB CCL BOARD

This machine is for multi-pieces of PCB pin fixed or removed each other  for driling or doing other treatment.

HS CODE:  8465920000 OR 8479899990

Brand: JZ

Technical Parameter:

The machine is specially designed for machining positioning holes before CNC drilling press drills holes and the drill press is used for producing double-sided printed circuit boards.

The machine is capable of holes drilling, pin fixing and removing automatically.

Distance of two positioning holes: Max.  500mm/ Min.  90mm

Printed board size: Min.    100mmX100mm

Rotating speed of main shaft: 20,000 rpm – 30,000 rpm   (steplessly adjustable)

Hole diameter: Φ3.0—Φ4.5mm

Spring chuck of main shaft: Φ3.175

Electrical supply and power: single phase 220V/50HZ，1.0KW

Compressed air: air pressure 0.5mPa, air consumption: 0.15m³/second
