Typical 10.08×4.5×3.4mm DIP crystal
1. RoHS compliant Lead free soldering
2. Typical Frequency: 8MHz,12MHz,16MHz, 20MHz,25MHz,27MHz,28MHz,40MHz
3. low profile for close PCB stacking
4. Typical application: Automotive, bluetooth,wireless,computers,Modems,communications,set-top box,DECT/WDCT
Electrical Parameters
|
Item
|
Electrical Specification
|
|
Min.
|
Type
|
Max.
|
Units
|
|
Nominal Frequency
|
8.000
|
MHz
|
|
Mode of Vibration
|
Fundamental
|
|
Frequency Tolerance
|
-10
|
-
|
10
|
ppm
|
|
Operating Temperature Range
|
-20
|
-
|
70
|
℃
|
|
Frequency Stability
|
-30
|
-
|
30
|
ppm
|
|
Storage Temperature
|
-40
|
-
|
85
|
℃
|
|
Load capacitance
|
-
|
12
|
-
|
pF
|
|
Equivalent Series Resistance
|
-
|
-
|
60
|
Ω
|
|
Drive Level
|
-
|
-
|
100
|
μW
|
|
Insulation Resistance
|
500
|
-
|
-
|
MΩ
|
|
Shunt Capacitance
|
-
|
-
|
5
|
pF
|
|
Aging Per Year
|
-
|
-
|
5
|
ppm
|
|
Package type
|
HC-49S
|

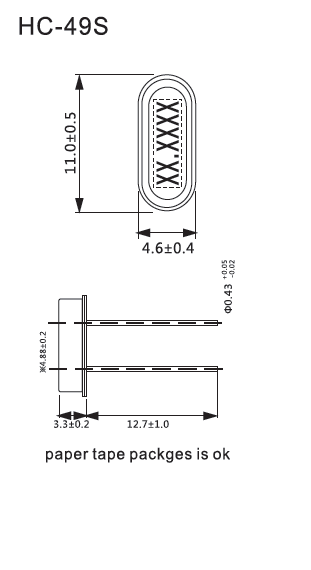

Dimensions
