Pins Common Cathode/Anode 3 Digit 7 Segment Display LED China Supplier

Basic Info.


Digit Number Three Emitting Color All Color
Circuit Common Common Cathode/Anode Chips Material Algainp
Power Comsumption 50MW Display Size 0.28" ~ 4"
Forward Voltage If=20mA 2.5V Max Reverse Current Vr=5V 50μa
Peak Forward Current 60 Ma Luminous Intensity If=20mA 42mcd Max
Operating Temperature -20° to 80°C Storage Temperature -30° to 85°C
Origin China Transport Package Carton/Pallet
Production Capacity 1.5 Billion Dots/Month HS Code 8531200000
MOQ 1000 pcs, negotiable




Pins Common Cathode Three Digit 7 Segment LED Display



It is a all size seven segment LED display, uses high glow LED chip, with both common cathode or common anode, all color display and stable current input, which can display different number.

It is a three digit seven segment led display, which has advantage like energy-saving, long life and environmental protection.



Small Size Segment LED display

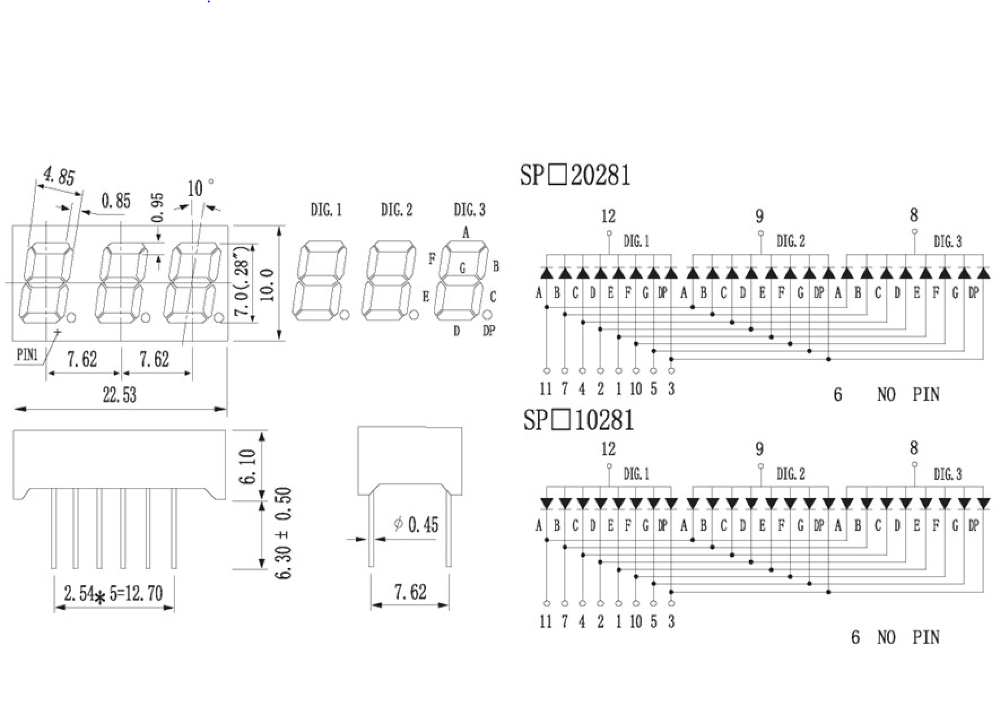

Product Parameters
Digit height 0.28 inch (0.28 inch ~ 4 inch available)
Dimensions 22.53*10*6.1mm
Digit quantity 3 Digit
Available Emitting Color Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green
Surface Color Black/Gray (white epoxy)
Epoxy Colors Red, Milky, Blue, Green and more
Polarity Common Anode/Common Cathode
Connector Pin
Operating Temperature -20-80°C
Requirements On Environmental Protection ROHS HSF

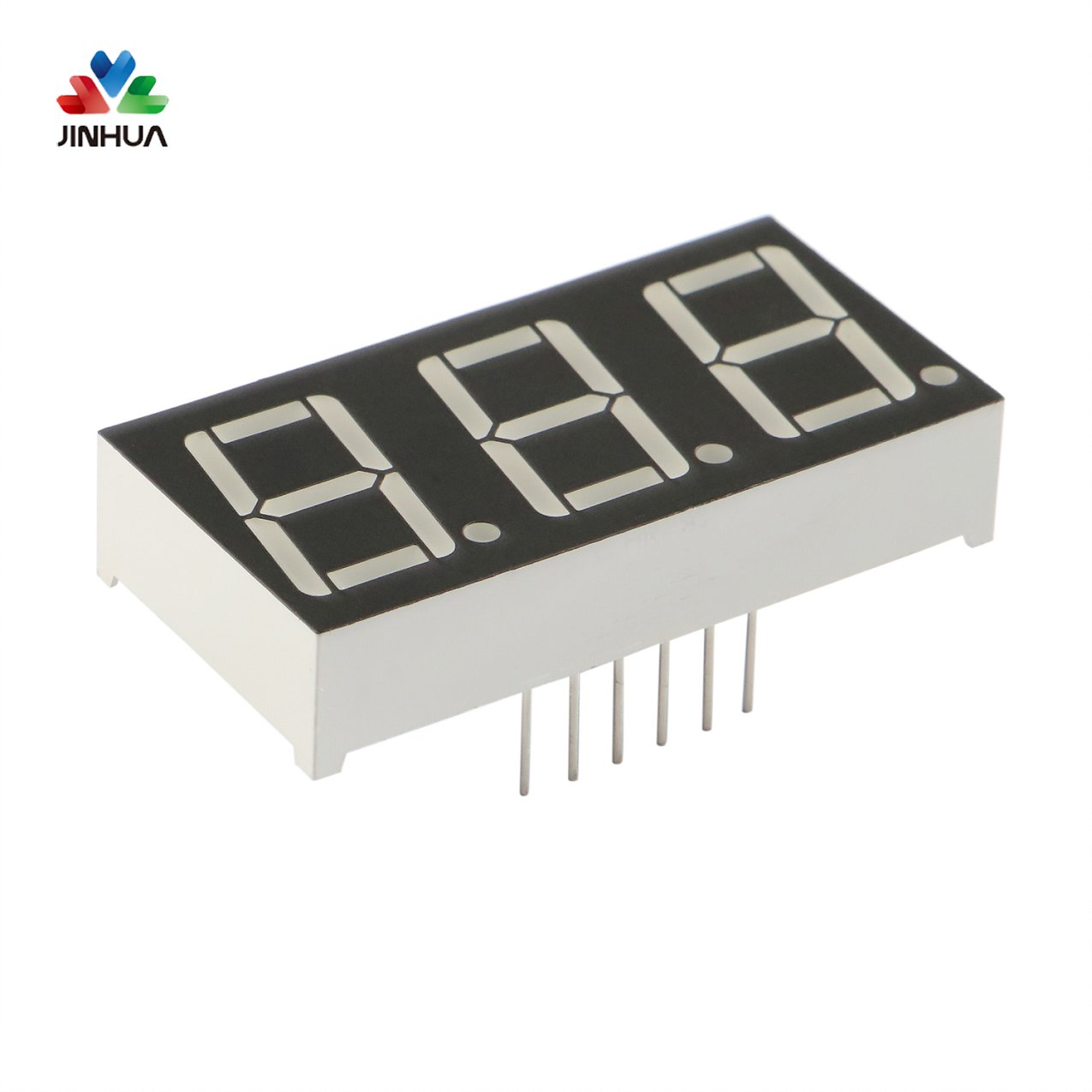

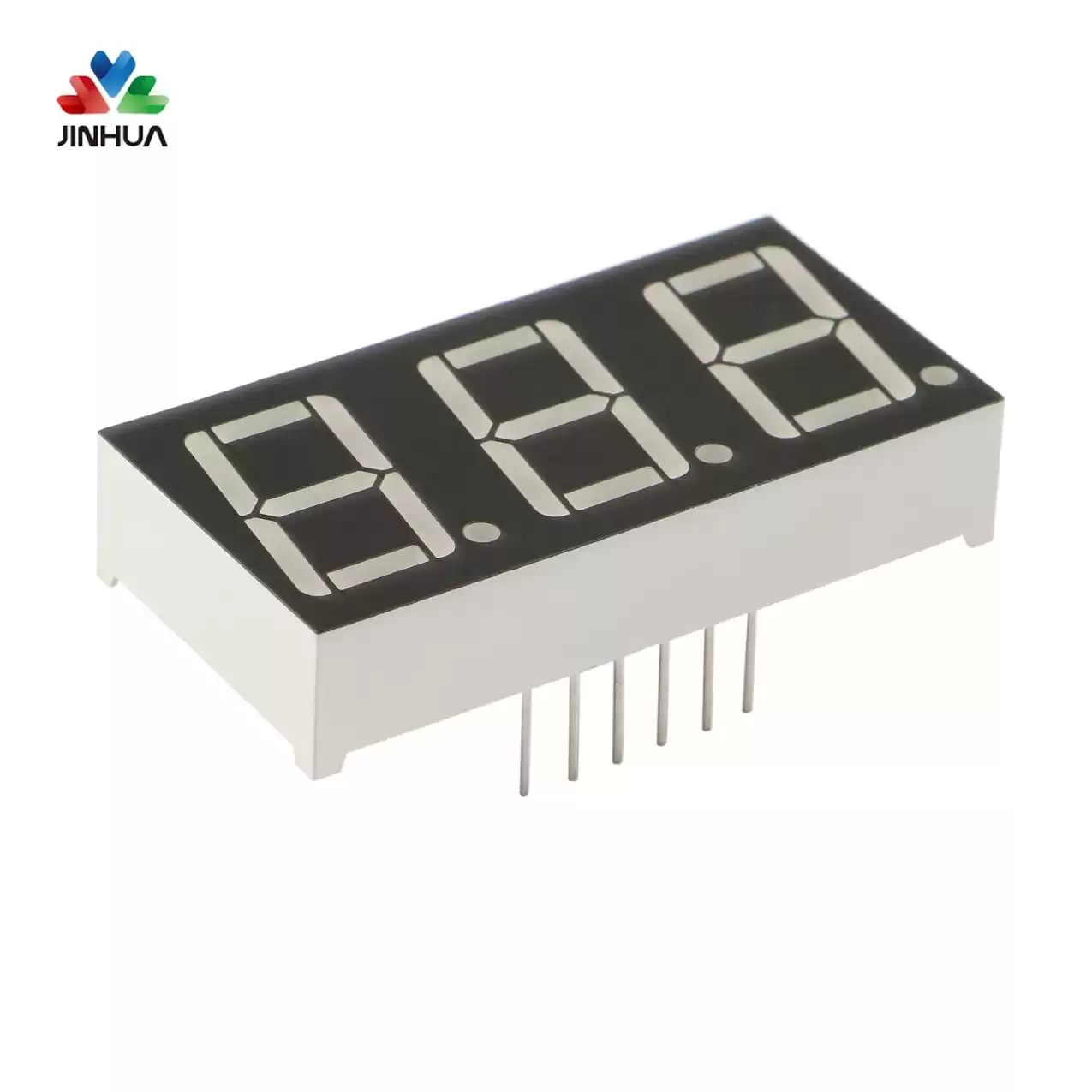

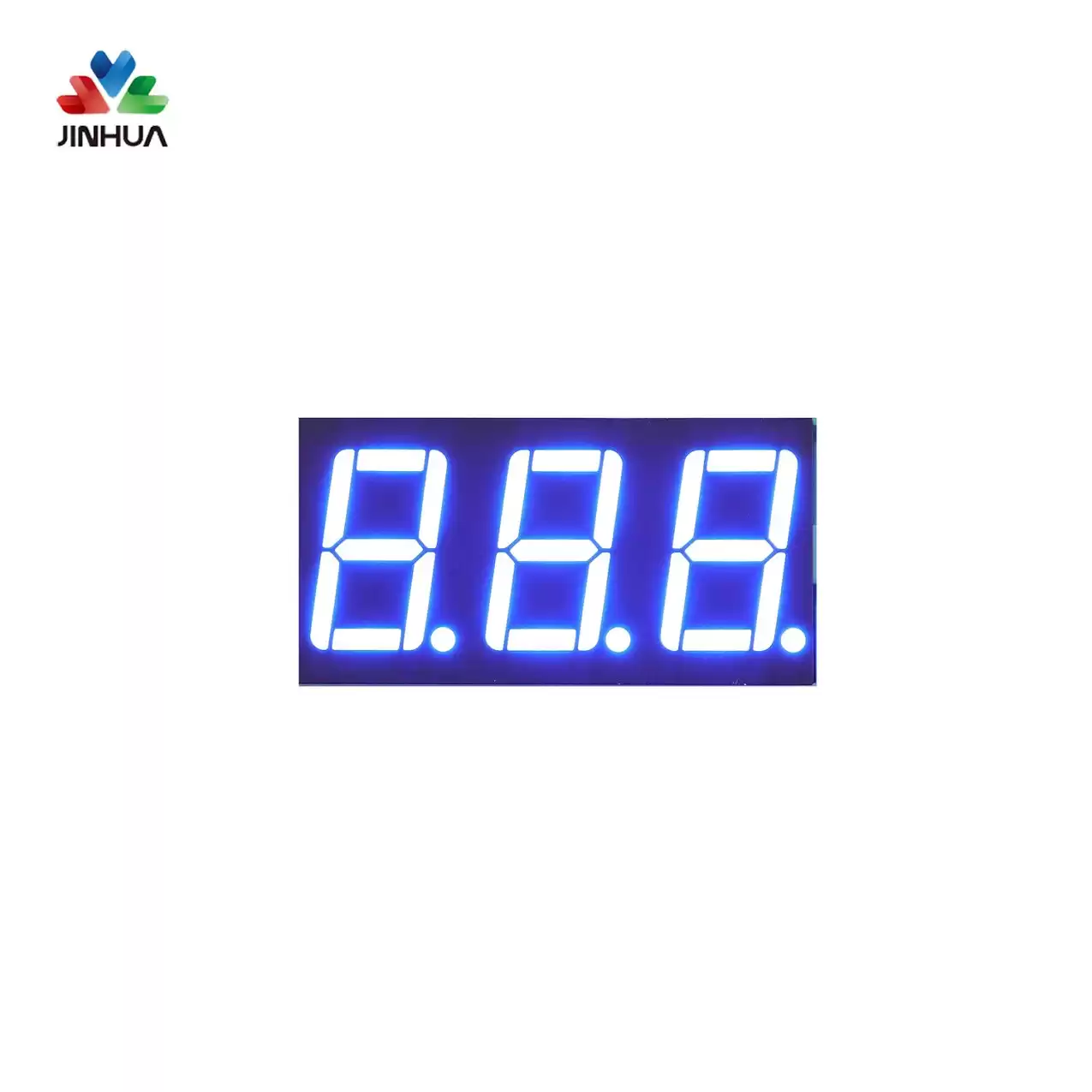

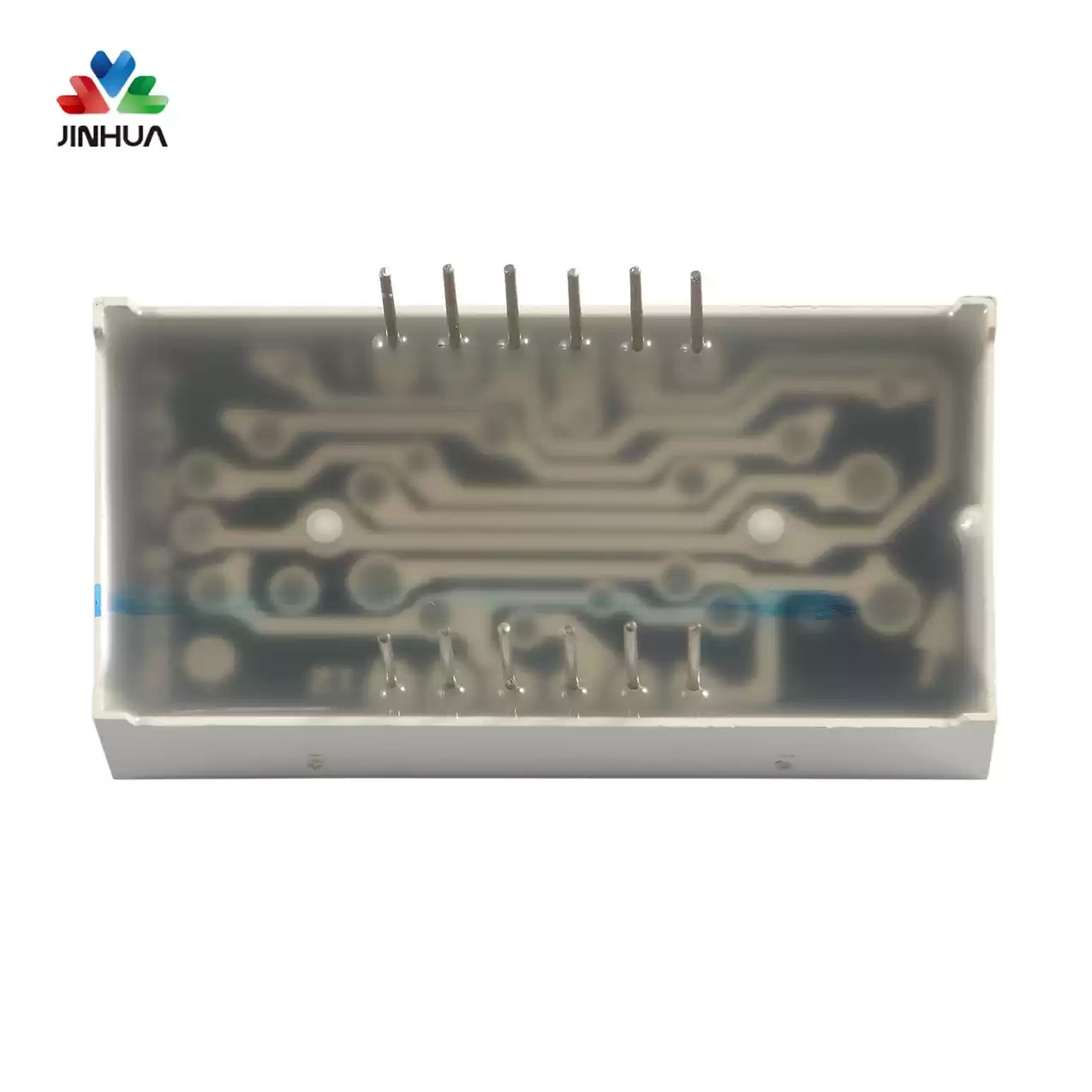

Detailed Picture


Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

7 Segment LED Displays are used extensively in many industrial, commercial and scientific applications, including ATMs, POS terminals, kiosks, security systems, lottery and gambling gaming machines, medical equipment, factory automation, digital advertisement signage, transportation information, and marine equipment.

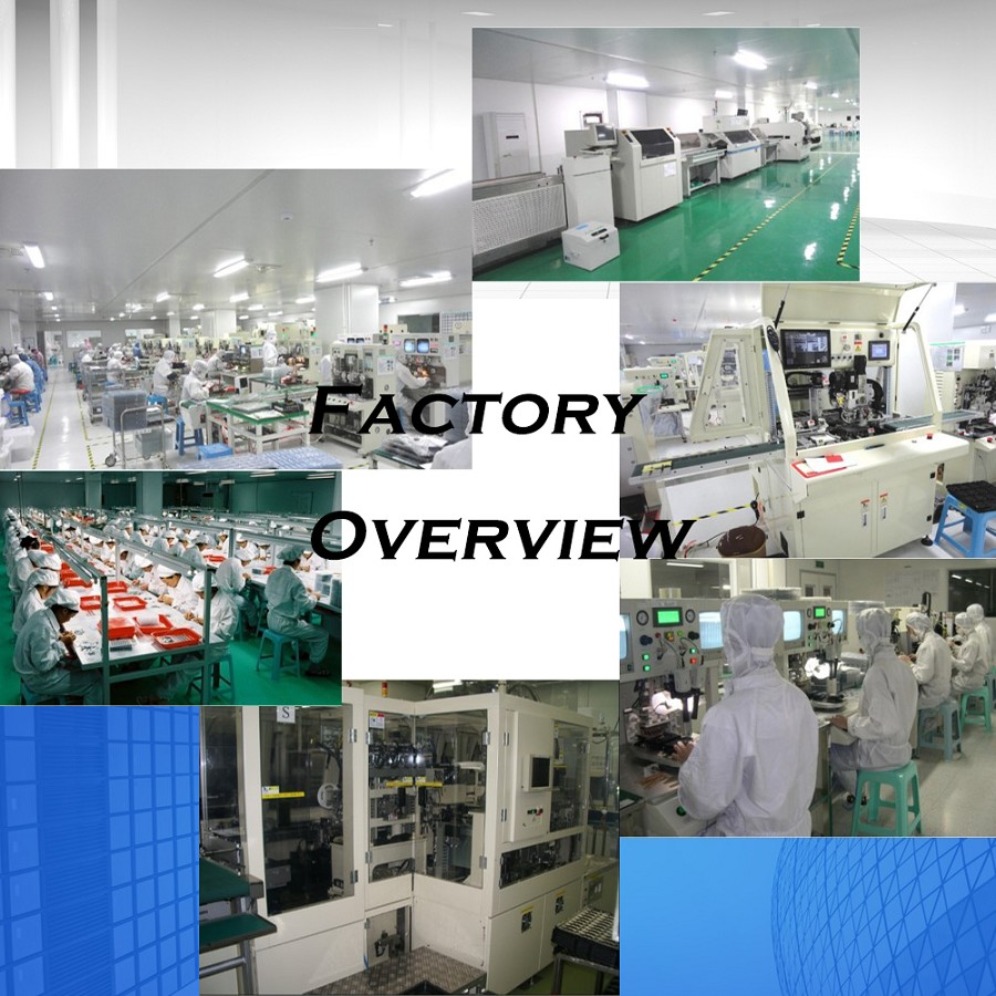

Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
