Pins Dot Matrix LED Panel 1.1" China Supplier

Basic Info.

Dot Number 5x7 Emitting Color All Color
Circuit Common Common Cathode/Anode Chips Material Algainp
Forward Voltage If=20mA 2.5V Max Display Size All size, customized
Peak Forward Current 60 Ma Reverse Current Vr=5V 50μa
Operating Temperature -20° to 80°C Luminous Intensity If=20mA 42mcd Max
Origin China Storage Temperature -30° to 85°C
Production Capacity 1.5 Billion Dots/Month Transport Package Carton/Pallet
MOQ 1000 pcs, negotiable HS Code 8531200000

Pins Dot Matrix LED Panel 1.1" China Supplier

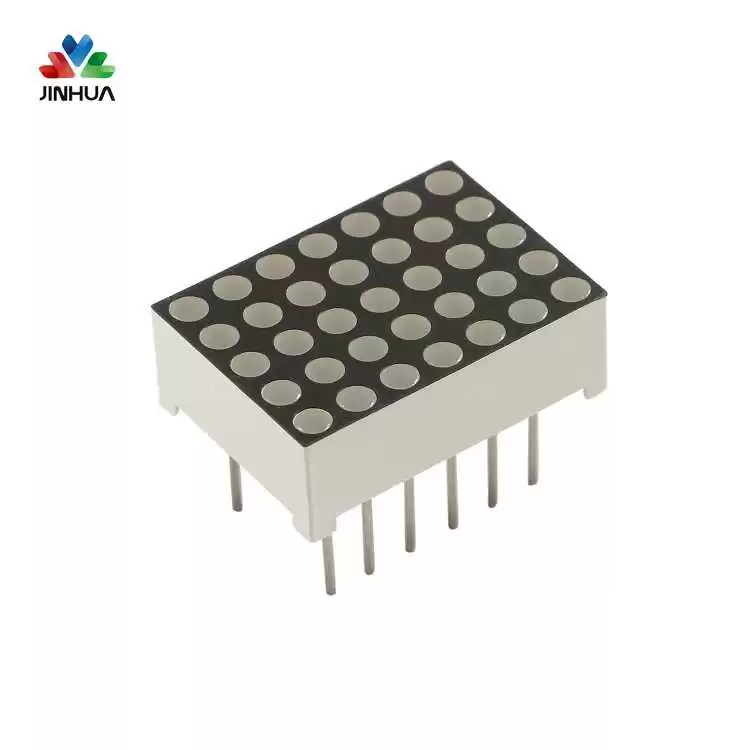

It is a 1.1" dot matrix custom LED display with 5x7 dot arrangement.

This kind of products come with the advantages like low power input, high glow and good price.


Small Size dot matrix LED screen

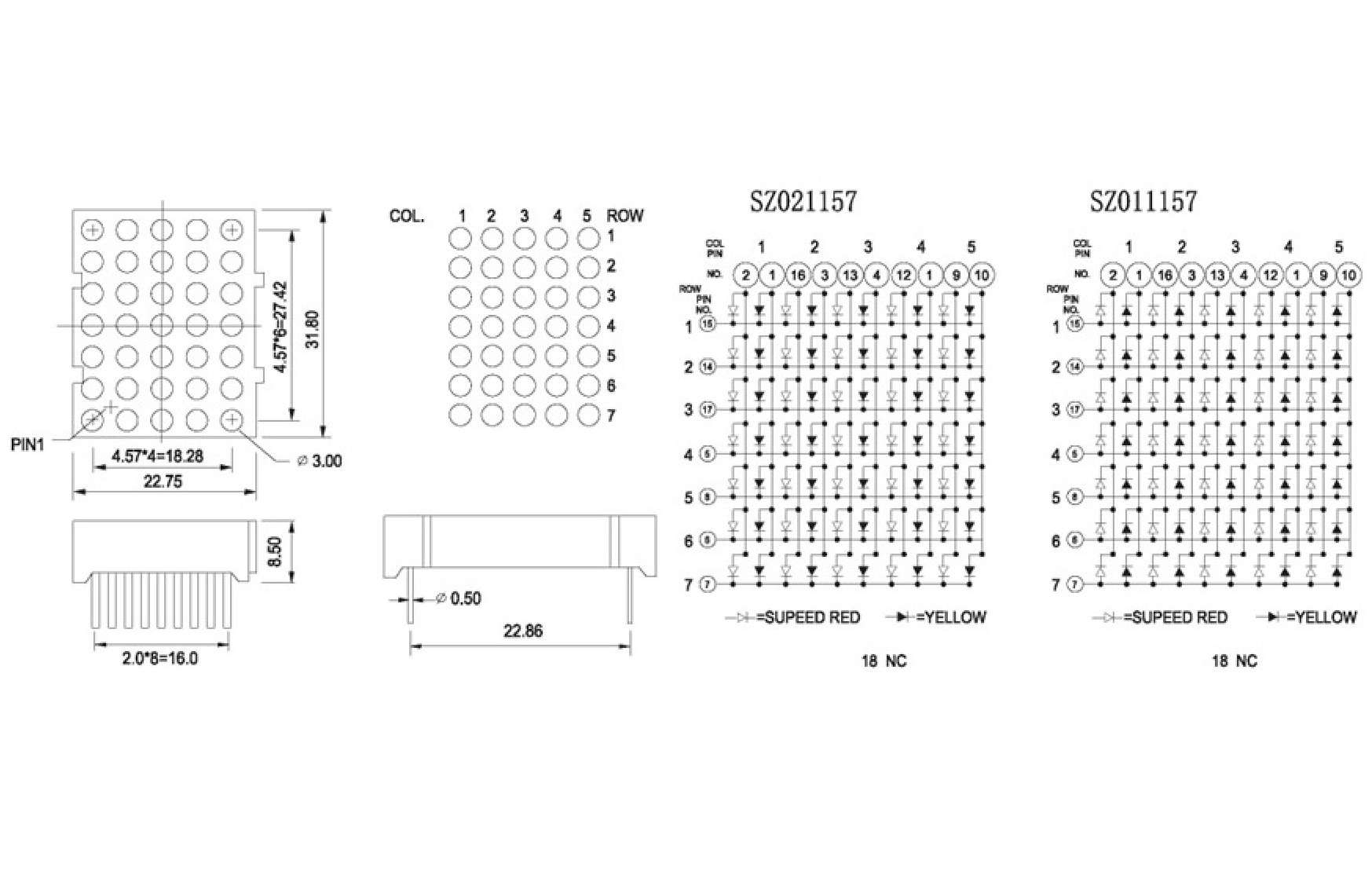

Product Parameters
Digit Size 1.1 Inch (other size available, customized)
Dimensions 31.8 x 22.75 x 8.5mm
Digit Distribution 5 Row x 7 Line
Available Emitting Color Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green
Surface Color Black/Gray (white epoxy)
Epoxy Colors Red, Milky, Blue, Green and more
Polarity Common Anode/Common Cathode
Connector Pin
Operating Temperature -20-80°C
Requirements On Environmental Protection ROHS HSF

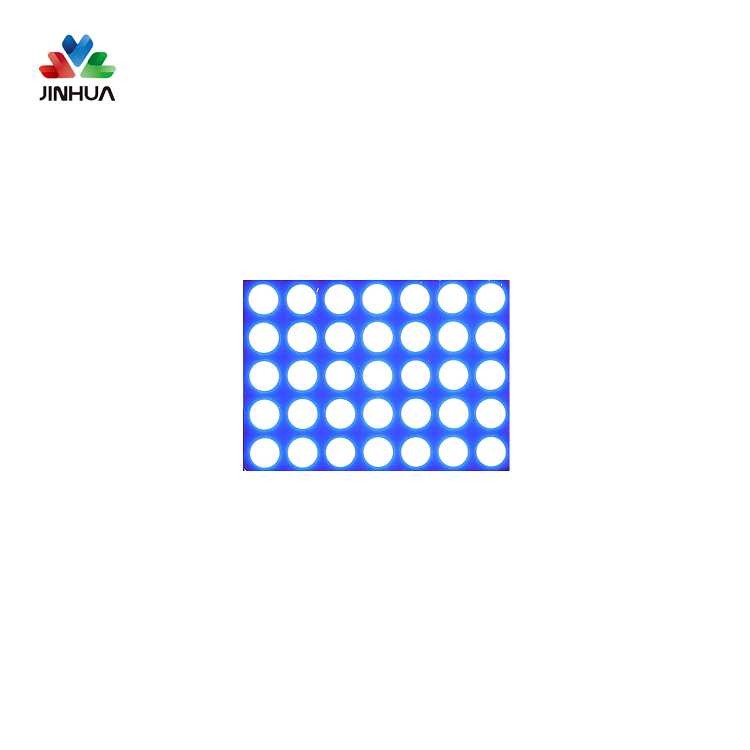

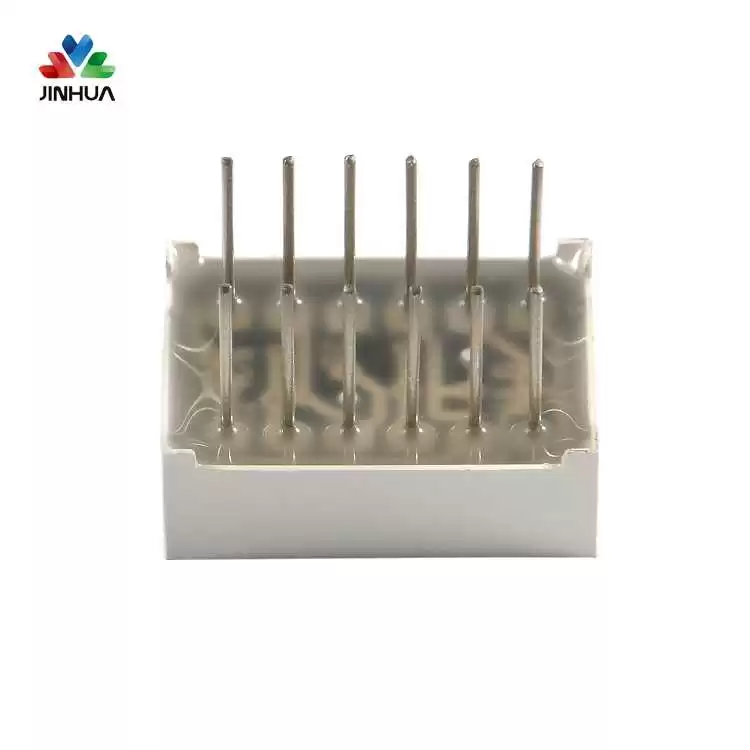

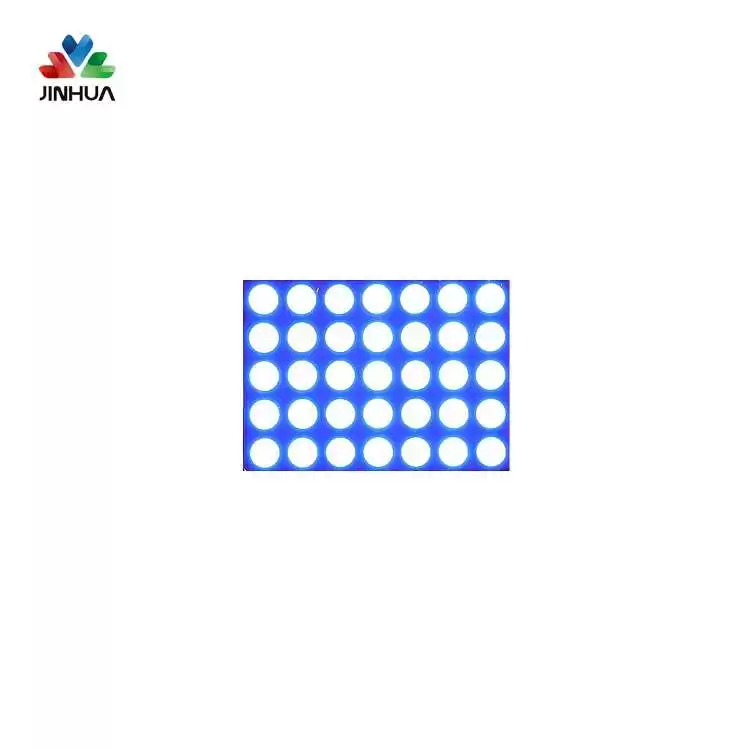

Detailed Picture

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature

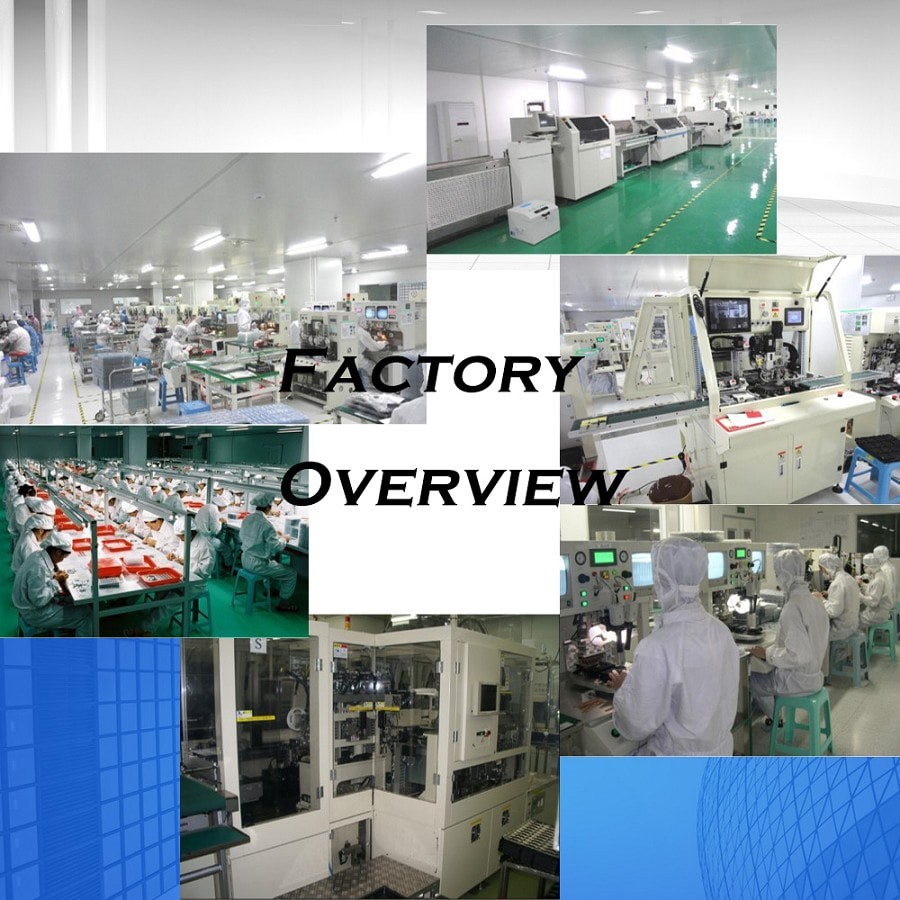

Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.


Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
