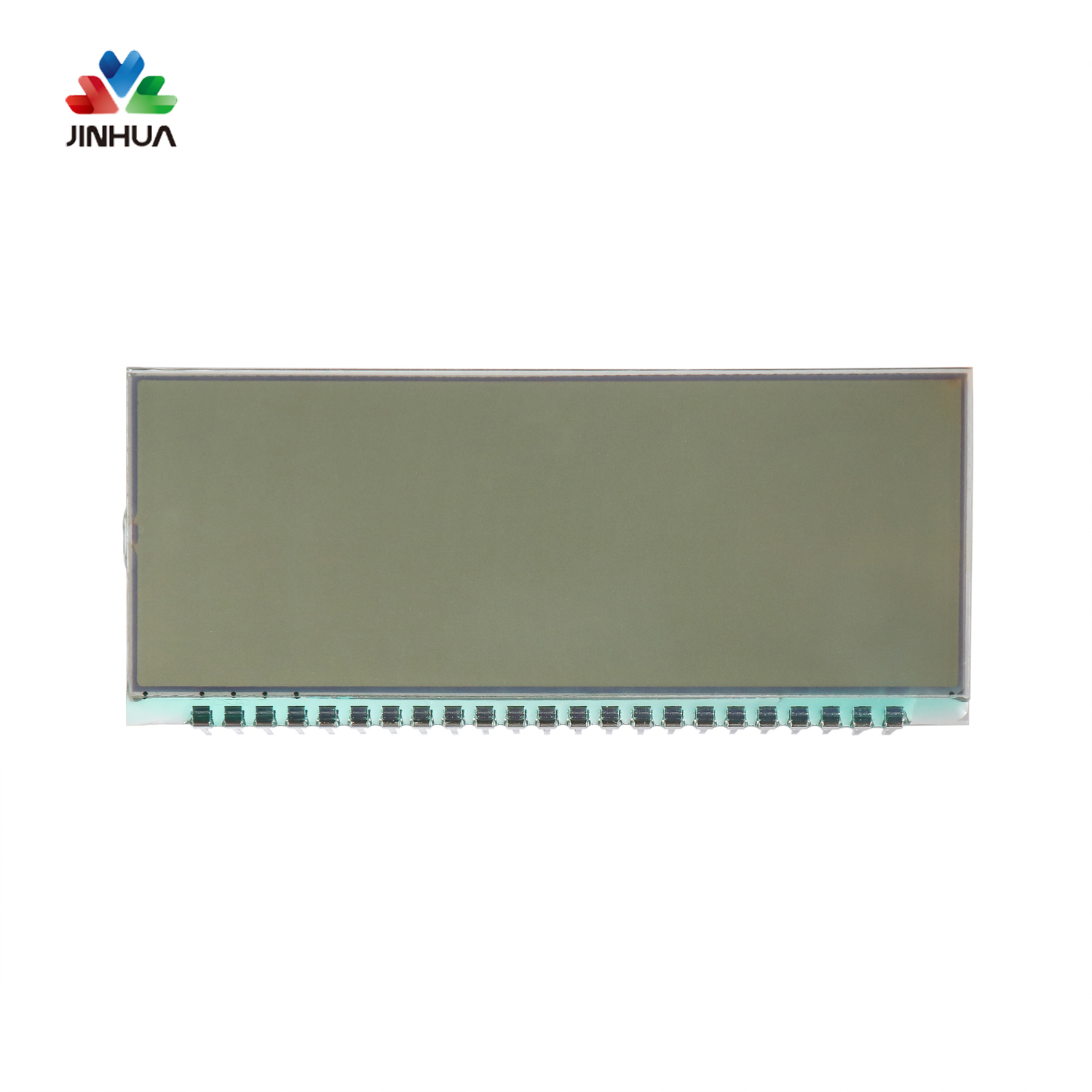

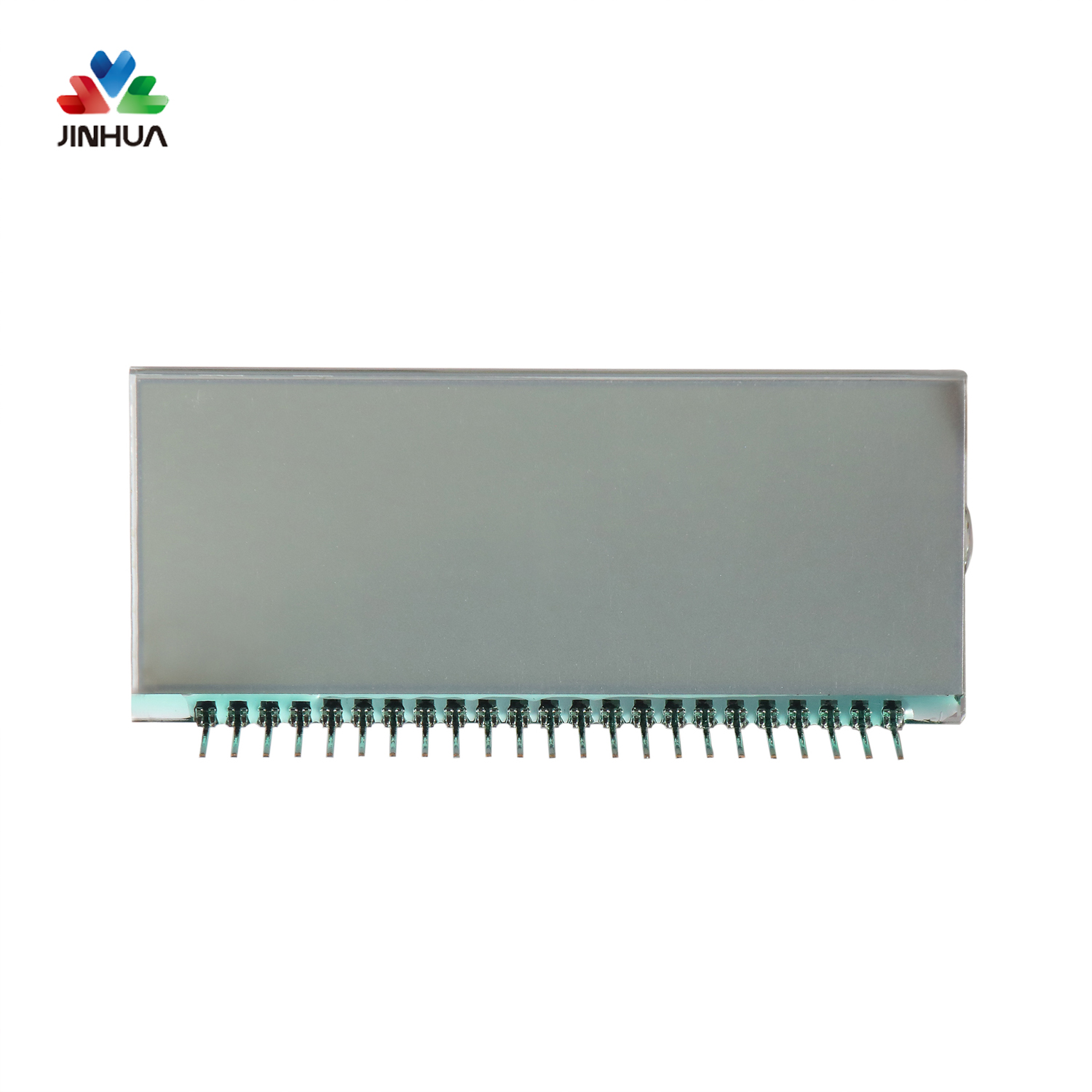

Pins Positive Transflective 6 O'Clock FSTN Segment LCD Screen Factory Price

Basic Info.


Display Type Transflective VA 24.3x66mm
View Angle 6 O′clock VDD 3V
Duty 1/4 Bias 1/3
Connector Pin Operating Temp. -10°~50°C
Environmental Protection RoHS HSF Interface None
Control IC None Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable




Pins Positive Transflective 6 O'Clock FSTN Segment LCD Screen Factory Price

It is a FSTN transflective segment LCD screen product. As metioned transflective, it means a LCD with an optical layer that transmits and reflects light. Under high brigtness the display performances mainly as a reflective display with the contrast being with brightness constantly.

The Jinhua Electronics company is capable of providing all kinds of translfective segment LCD screen.



Segment LCD Screen
Product Parameters
LCD Type FSTN
Display Type Transfletive
Display Mode Positive
View Angle 6 o'clock
VA 24.3x66mm
Driving Condition VDD 3.3V
Duty 1/4
Bias 1/3
Connetor Pin
Display Technology COG
Control IC None
Interface None
Operating Temperature -10-50°C, custom
Requirements On Environmental Protection ROHS HSF

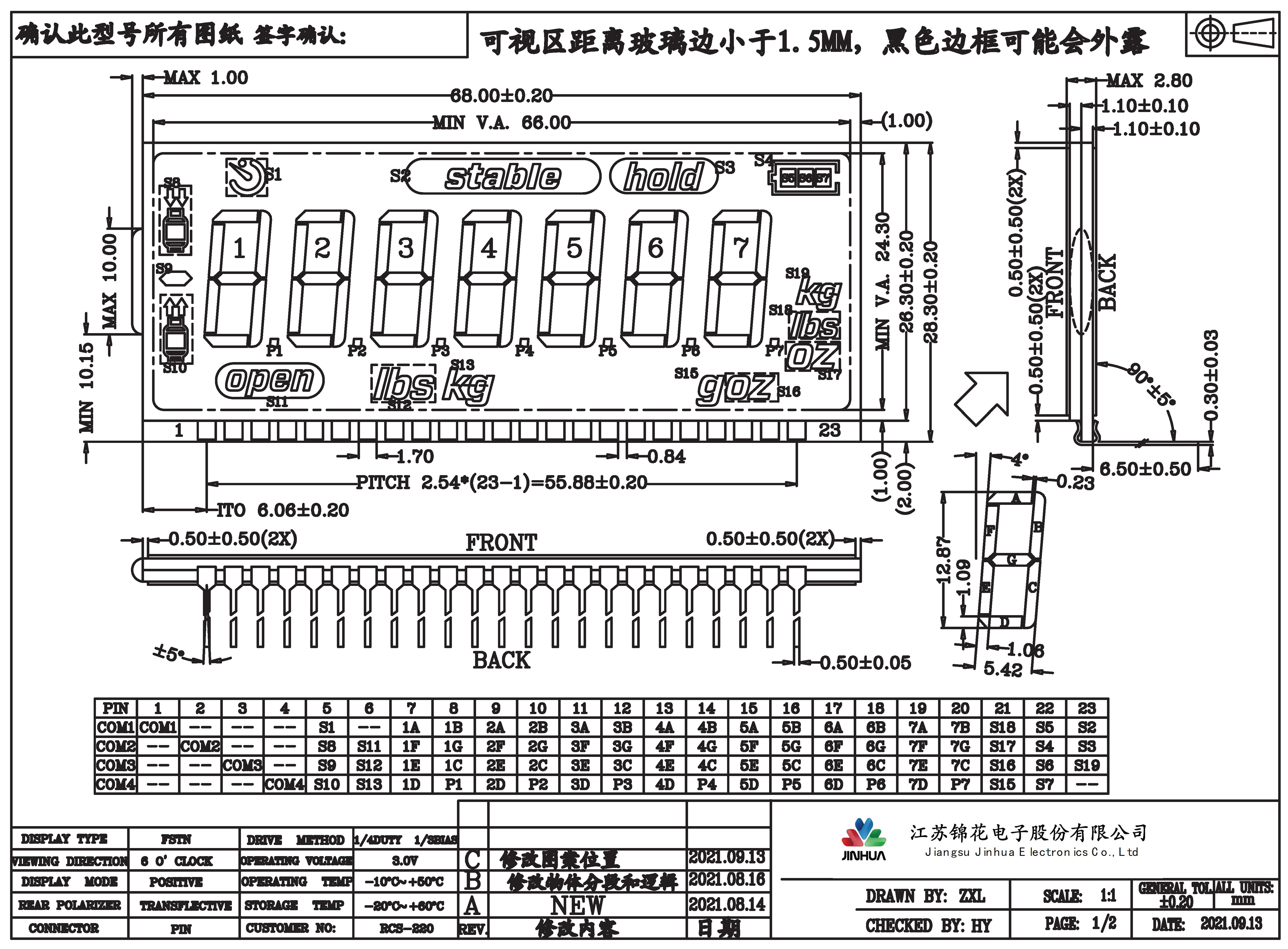

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

FSTN Segment LCD display is consist of many parts like LCD glass, PCB, IC, pin, FPC, etc. And it's extensively applied to many ocassion such as communication&hand-held devices, smart home products, fiscal products, automotive products, medical equipment, instrumentation products, industrial equipment, meter&measuring devices, etc.



Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
