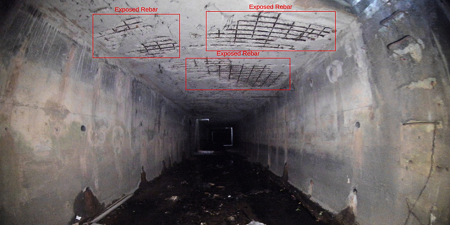

It is mainly used for pipeline crack inspection, pipeline blockage inspection, etc., and is matched with the inspection and detection result analysis software of the UAV platform developed by the company. It can automatically generate inspection reports, improve the efficiency of pipeline inspection and reduce costs.
Fully automatic flight with high efficiency

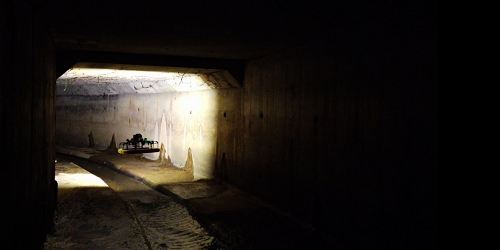

Autonomous flight can be achieved through vision and lidar navigation, which greatly improves patrol efficiency. At the same time, it is equipped with CH₄ , SO₂ , H₂S , O₂ and other gas sensors, as well as 4K wide-angle detection cameras and other equipment to collect data and information, with high operating efficiency.
In conjunction with the inspection and test result analysis software developed by the company's drone platform, it is possible to calibrate the location of photo data, select defect labels, and filter data, and automatically generate an inspection report that can be opened on a web page or Microsoft Word.

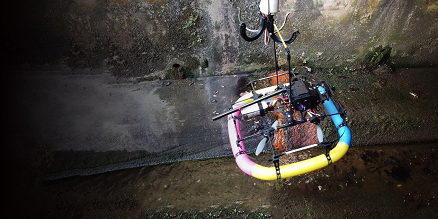

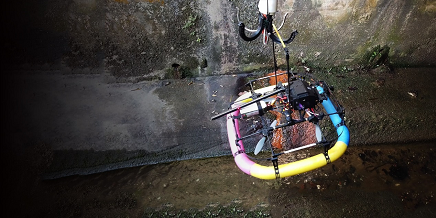

The drone has functions such as one-button start and one-button separation, which makes surface operations and downstream recovery more convenient, improves the efficiency of pipeline inspections and reduces costs.
High intelligence and high security

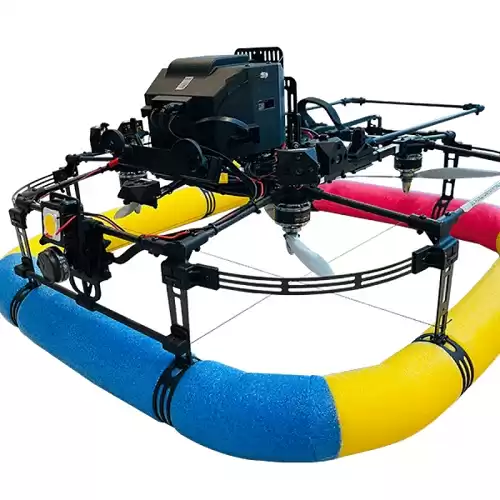

The drone uses visual SLAM technology, which can perfectly achieve autonomous obstacle avoidance. In emergency situations, it will automatically land on the ground. If the landing site is on water, it can float on the water through the protection frame, which has a self-protection function.
Load capacity
Vision and LiDAR navigation, gas sensors, 4K wide-angle detection cameras, and more.
Performance Indicators
Flight speed (automatic): 1m/sec
Flight time: 12 minutes
Camera resolution: 4208×3120 LED lighting ≥2400 lumens
Detection sensor system
Applicable minimum pipe section: 2m×1.5m or 2.4m (width, height or diameter)
Safety features: autonomous obstacle avoidance, low battery return and landing, floating on water, rotor protection
Dimensions: 647mm×767mm×435mm
Applicable maximum pipeline length 500m
Weight (including battery) 2.9kg
