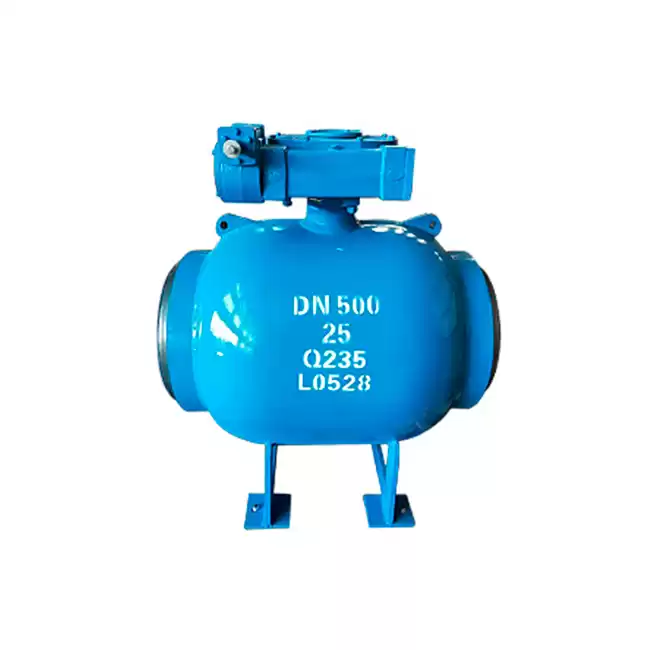

Pipeline Full Weld Ball Valve DN500 PN25 P245GH(Q235B)

ISO17292 FB Trunnion Full Weld Pipeline Ball Valve

DN500,PN25,P245GH,A105+PTFE,Gear Box

Manufacture STAVAL Factory Offers.


  • Working Temp.-196°C to +600°C
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Material RangeA105, P245GH, Q235B, 20# Steel, QT450
  • ConstructionFull Weld, Solid/Hollow/Sleeve Ball
  • BoreFull Bore, Reduce Bore
  • SeatSoft Seat, Metal Seat, PMSS Seat

Feature

Fire Safe Design, Anti Static Design, Anti Blowout Stem

Key Specification

Type

Ball Valve

Size

DN500

Pressure

PN25

Construction

3Pcs, Full Bore, Trunnion, Side Entry, Full Welded,

Connection

BW End

Body/Bonnet Material

QT450 (P245GH, Q235, 20#)

Ball Material

A105 (Sleeve Ball No Steel Welded Inside)

Stem Material

A182 F6A

Seat Material

PTFE

Bolt/Nut

B7/2H

Design Standard

ISO 17292

Face to Face Dimension

EN558

End Connection

ASME B16.25

Fire Safe

API607

Inspection & Test Std.

API598

Temperature Range

-29℃~+120

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
