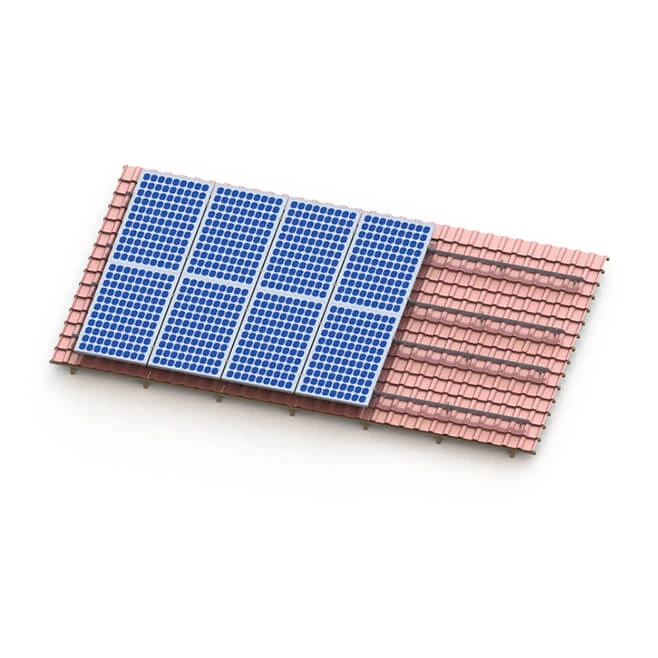

Product Name: Pitch tile roof mounting system
Product Description:
Yanglin Pitched Tile Roof Mounting is suitable for installing framed or frameless modules flushed to pitch roof. Special design and pre-assembled clamp make installation easy, as follow are some advantage:
Feature:
Light Weight, Convenient and Durable.
Install Site: Pitch Tile Roof
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5 & Stainless Steel 304
Warranty: 10 years warranty; 25 years service life.
Installation Guide:
Step 1: Remove tile and fix tile hook on beam by M6.3 x 80mm wood screw.
Step 2: Fix solar rail on tile hook and lock tightly by M8x25mm T module set.
Step 3: Put solar panel on rail and fix with inter clamp or end clamp until finished.
Do solar panels damage roof
tiles? As long as your solar panels are installed correctly, they will
not damage the exterior of the roof or the infrastructure. If you work
with a qualified licensed professional and your roof is in good
condition, your Tile Roof Solar Mounting will not compromise the
integrity of your roof.
Compnents List:
