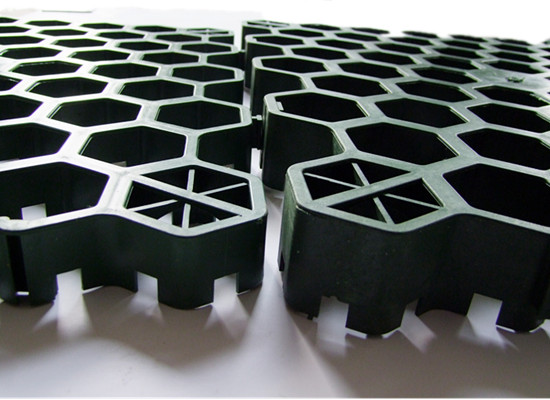

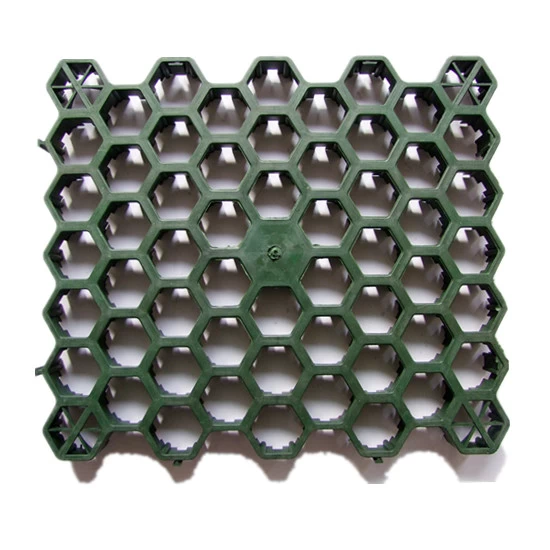

Plastic Grid Paving For Construction

Plastic grid paving can be filled with soil and grassed or turfed as the octagonal honeycomb cell structure and open base promotes unrestricted root growth, or can be filled with gravel giving a high quality decorative look.


  • Total Volume0.1CBM/sqm
  • Size465x535x50mm
  • ColorDark Green
  • MaterialHDPE
  • Press Strength180tons/sqm

Plastic Grid Paving For Construction Specification:

 Item Code  LK-450B1
 Material  HDPE
 Size(L x W x H)  465 x 535 x 50mm
 Color  Dark Green
 Grass Grid Details

Features and Benefits



  • Manufactured from 100% recycled plastics, eco-friendly grass grids;
  • Flat plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change;
  • Perfect greening, provides more than 95% grass area;
  • High compressive strength and durable,the plastic grass grids is permanent and long lasting;
  • Fast and easy to install, maintenance with low cost;
  • Permeability drainage performance, high water culvert.

 Compressive Strength  180tons/sqm
 Working Temperature  Dimensionally stable for -40℃ to 90℃
 Weight  4.6kg/sqm
 Afforests Rate  95%~100%
 Porosity  90%
 Moisture Absorption  0.1%
 Environmental Compatibility  Non toxic, harmless to plants, animals, and microorganisms, inert material, groundwater neutral
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified
 Packing  Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
 MOQ  100sqm
 Shipping

 About 20 days after receipt the deposit.

 FOB Xiamen, appointed shipping-terms and port accept.

 Application:

  • Helicopter landing pads;
  • Overflow grass car parking lot;
  • Fire truck access paths/fire lanes;
  • Handicap access routes;
  • Erosion control;
  • Golf buggy/trolley paths;
  • Emergency vehicle access roads through fields;
  • Modern factory building;
  • Truck maintenance and equipment yards;
  • Construction entrance soil stabilization;
  • Residential driveways;

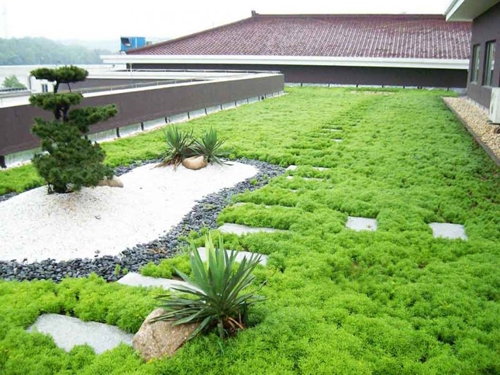

  • Roof garden greening etc.

Manufactured from 100% recycled HDPE material, Leiyuan Plastic Grid Paving are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.


Plastic Grid Paving provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.

Driveway Gravel Grid Construction:

Leiyuan Driveway Gravel Grid: High Strength, Long Life Service !
