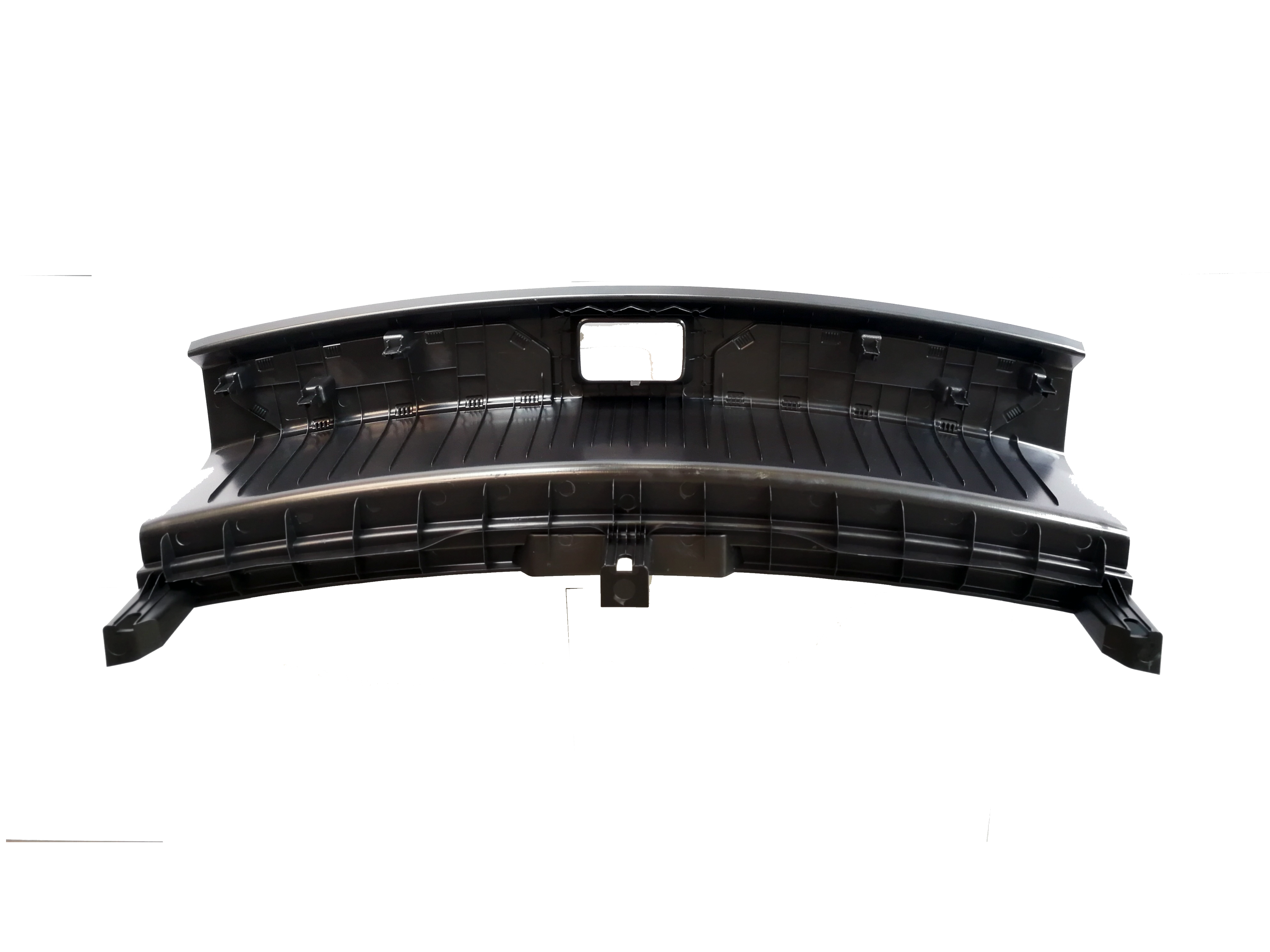

Product Introduction: Plastic Rear Trunk Trim Of Auto is produced by PP+EPDM Resin material which is compliance with Rohs requirement. it is Easy to install and beautiful exterior look.To make cars more stereoscopic sense, more eye-catching, and get unique charm.
Production process: Injection molding

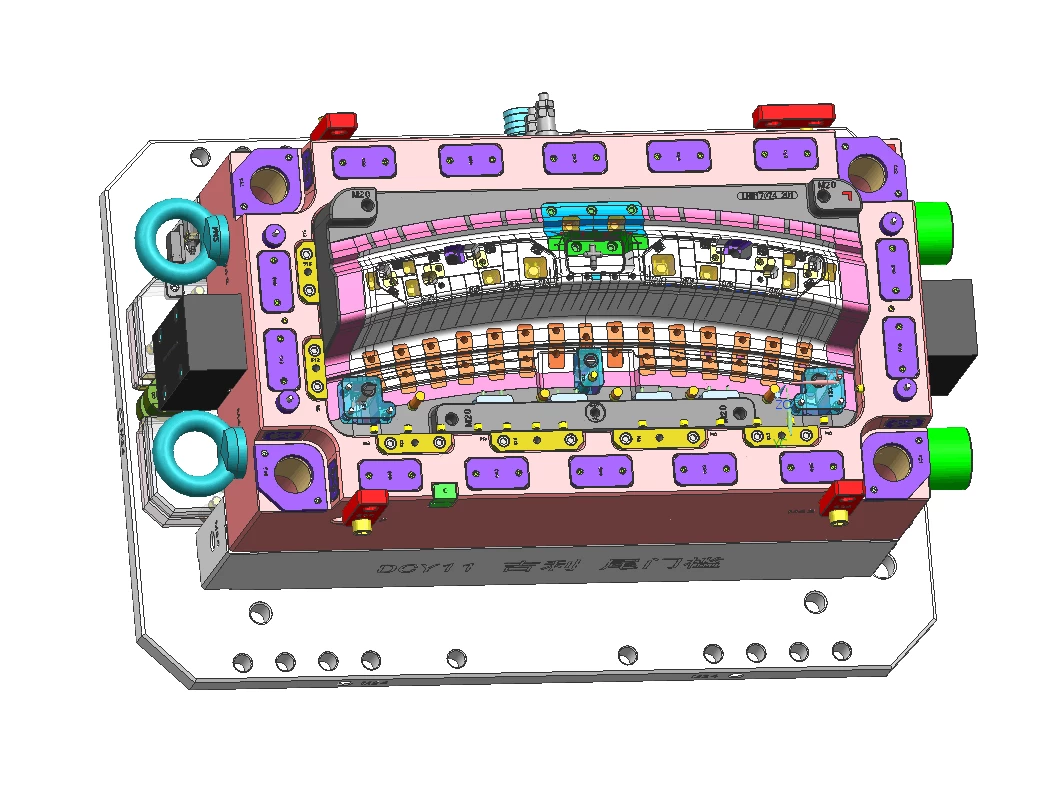

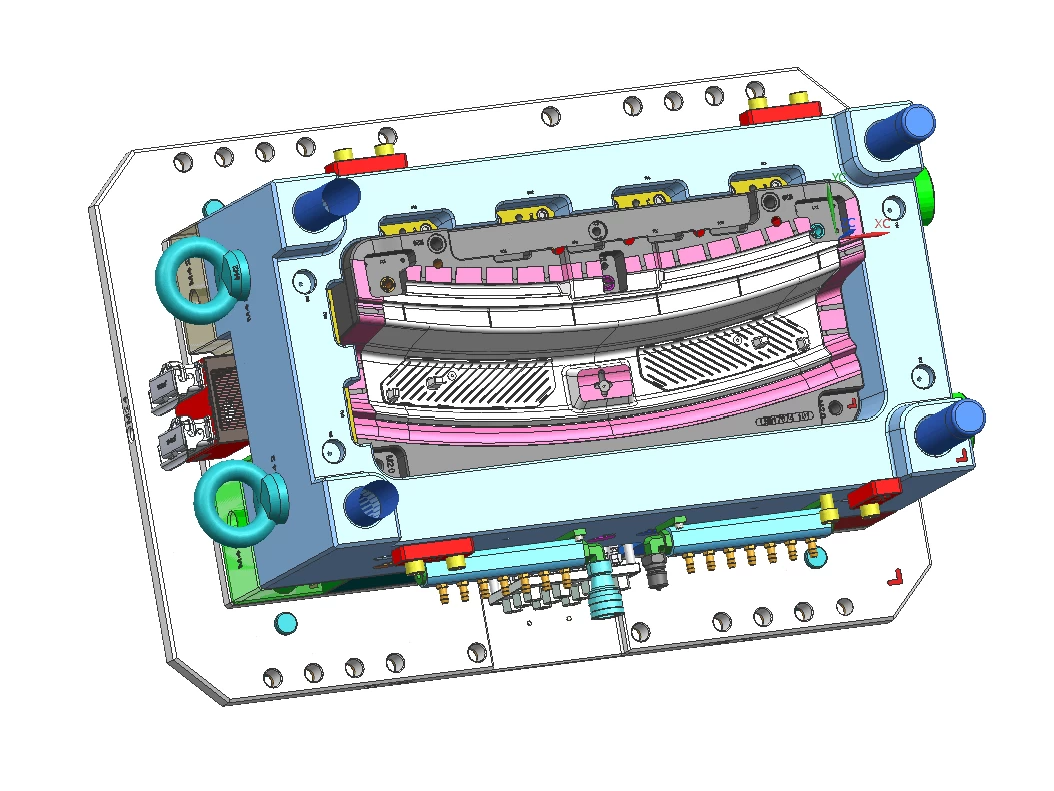

Injection Tool information:1 cavity tool with YUDO hot runner ,tool material is P20H
Major market:North America, Europe
what kenmold can do:Design according to client's drawing/samples and requirements. Various textures available can be produced.

Part size：780X220X200 mm

Plastic material: PP+EPDM Resin material is compliance with Rohs requirement.

Cavity No: 1X1

Steel material：P20H/718H

Hot runner: YUDO hot runner 3 drops valve gate with time control

Mold size: 1300X900X1100mm

Mold weight: 5380 KG

Special Mold structure: ejection on both cavity and core side.
