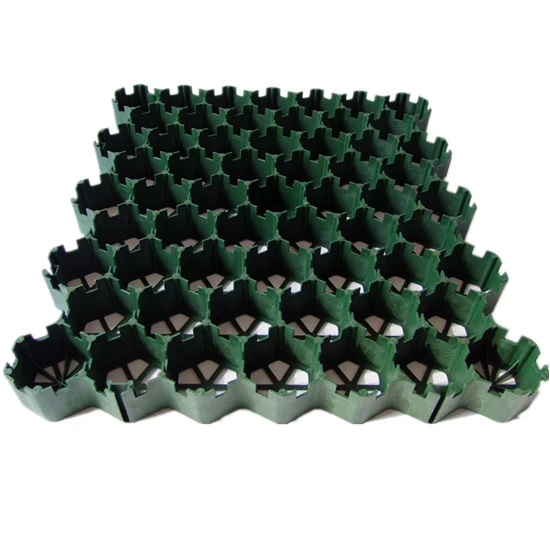

Plastic Reinforced Grass System for Parking

Leiyuan offers a comprehensive selection of plastic grass system with a interlocking grid system which is very easy to install and suited for varying applications. Our grass grid is 100% plastic grids, light weight, high strength and durable, which making them ideal for both domestic and commercial purposes throughout the world.


  • MaterialHDPE
  • ColorGreen
  • Size465x535x38mm
  • Total Volume0.035CBM/sqm
  • Press Strength120ton/sqm

PLASTIC REINFORCED GRASS SYSTEM FOR PARKING

Leiyuan offers a comprehensive selection of plastic grass system with a interlocking grid system which is very easy to install and suited for varying applications. Our grass grid is 100% plastic grids, light weight, high strength and durable, which making them ideal for both domestic and commercial purposes throughout the world.



APPLICATION:

Leiyuan is a leading manufacturer of plastic grass system which are uniquely designed and manufactured for:

  • Industrial and construction sites
  • Grass driveways and grass shoulder
  • Overflow grass car parking lot
  • Fire truck access paths/fire lanes
  • Handicap access routes
  • Pedestrian paths
  • Golf buggy/trolley paths
  • Emergency vehicle access roads through fields
  • Modern factory building
  • Noble living communities
  • Truck maintenance and equipment yards
  • Construction entrance soil stabilization
  • Residential driveways
  • Roof garden greening etc.


PLASTIC GRASS SYSTEM PRODUCT DETAILS

Item No.

MZ-438

MZ-450

MW-438

MW-450

Size

465x535x38mm

465x535x50mm

465x535x38mm

465x535x50mm




Apply Place

pedestrian areas;

 on verges;

 footpaths;

 access roads;
 emergency access lanes;
 car parks;
 vehicle hardstandings;

 Gravel Road(light vehicle);
 pedestrian areas;
 on verges;

 Gravel Road;
 access roads;
 emergency access lanes;
 car parks;
 vehicle hardstandings;

Pressure Strength

 1176KN/sqm(120ton/sqm)

 1764KN/sqm(180ton/sqm)

 1584KN/sqm(160ton/sqm)

 1964KN/sqm(200ton/sqm)

Weight

 3.65kg/sqm

 4.55kg/sqm

 4.05kg/sqm

 5.5kg/sqm

Material

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

Durability

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

Working Temterature

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

Anti HCL

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

Anti NaOH

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

Thermal Aging

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

Anti UV

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

Package

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

Loading Capacity

940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container

700sqm=1x20ft container

1420sqm=1x40ft container

1628sqm=1x40HC container

940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container

700sqm=1x20ft container

1420sqm=1x40ft container

1628sqm=1x40HC container



REQUEST AN INQUIRY OR SAMPLE

FEATURE AND BENEFITS

Our reinforced grass system come with many features and benefits, which include:

1). Manufactured from eco-friendly 100% ground protection products.

2). Fast and easy to install, maintenance with low cost

3). Perfect greening, provides more than 95% grass area

4). Permeability drainage performance, high water culvert

5). Allows grass grid to grow with easy and binds firmly

6). Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure

7). High compressive strength(up to 200 tonnes/m2)

6).Light weight, durable, maintenance free, the plastic grass grids is permanent and long lasting

8). Grass grids has an open cell structure allowing unrestricted healthy grass root growth

9). Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
