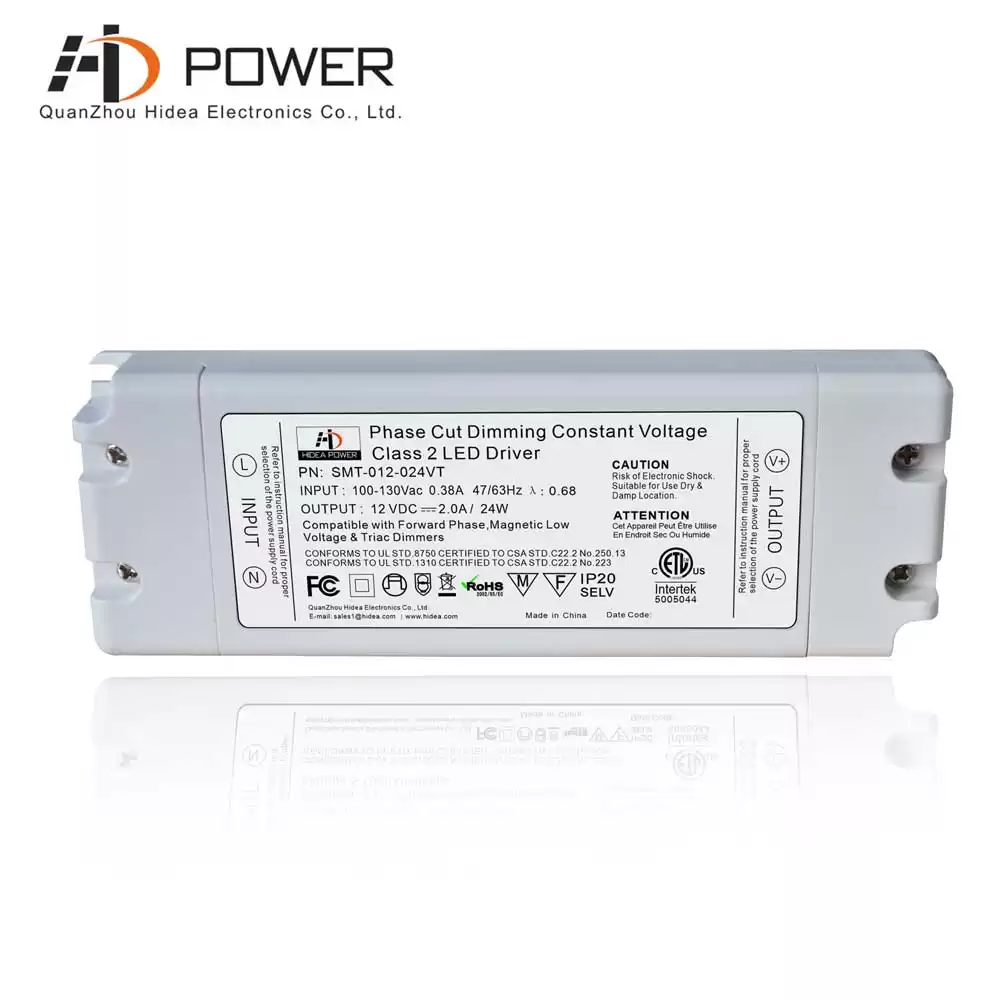

This triac dimmable 24W LED Driver has Short Circuit/Over Loading/Over Current/Over Temperature design.Can be well connected with most TRIAC lighters on the market to achieve smooth
Specification
|
Model
|
SMT-012-024VT
|
SMT-024-024VT
|
|
output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
2.08A
|
1.04A
|
|
Rated power
|
24W
|
|
input
|
Voltage Range
|
100~130VAC / 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor (Typ.)
|
PF≥0.65
|
|
Efficiency(Typ.)
|
>81%
|
>84%
|
|
AC Current(Typ.)
|
0.9A
|
0.9A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
others
|
Net. Weight
|
0.68kg=0.21kg(driver)+0.47kg(J10)
|
073kg=0.21kg(driver)+0.52kg(J12-2)
|
|
Size
|
350*77*26mm(L*W*H)
|
350*77*37mm(L*W*H)
|
|
Packing
|
430*375*150mm 20PCS/CTN
|
430*375*190mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3. Loading should be 5-100%.
|

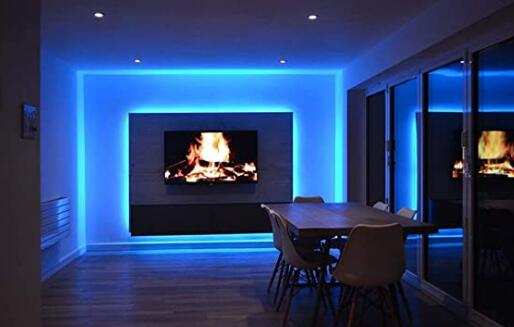

Compatible Light Type
Easy to installed Lepro 50ft strip lights: with back adhesive and flexible strip design, it can stick on any dry and flat surface. Using the 24 watt led power supply dimmable driver to meet dimming requirement.
