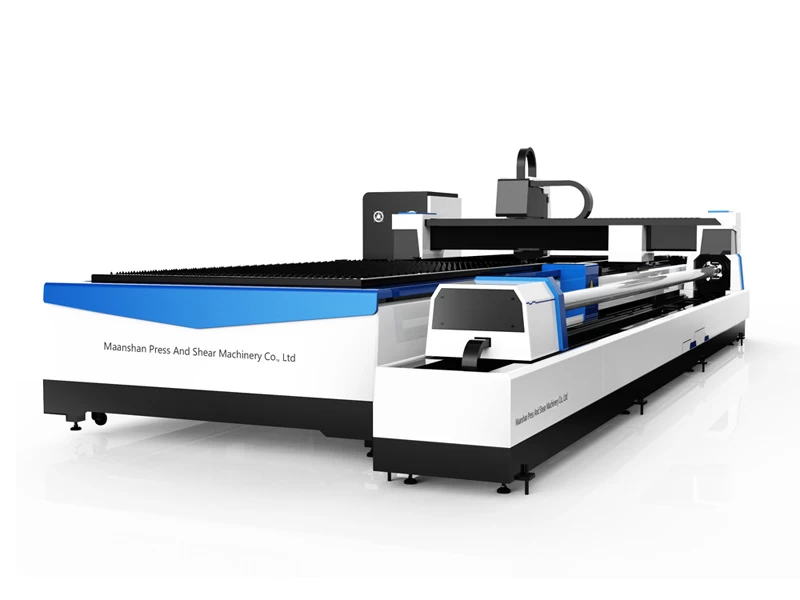

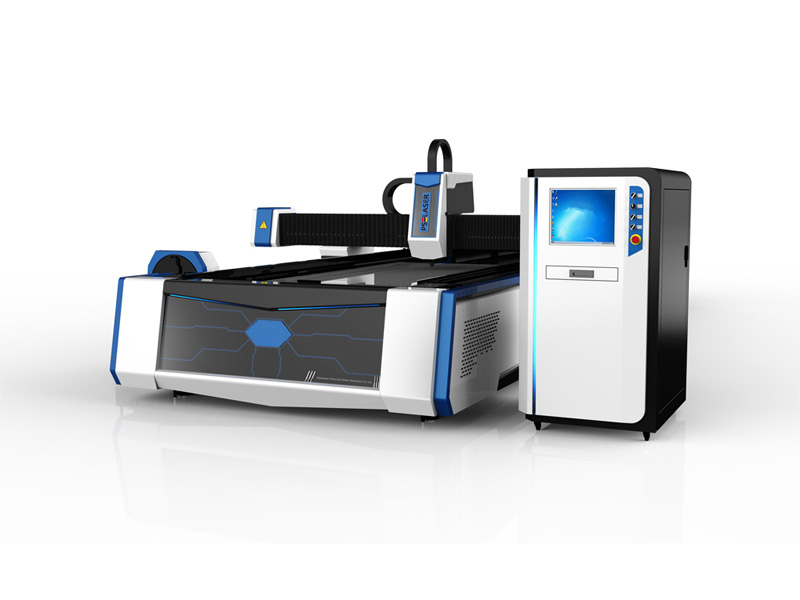

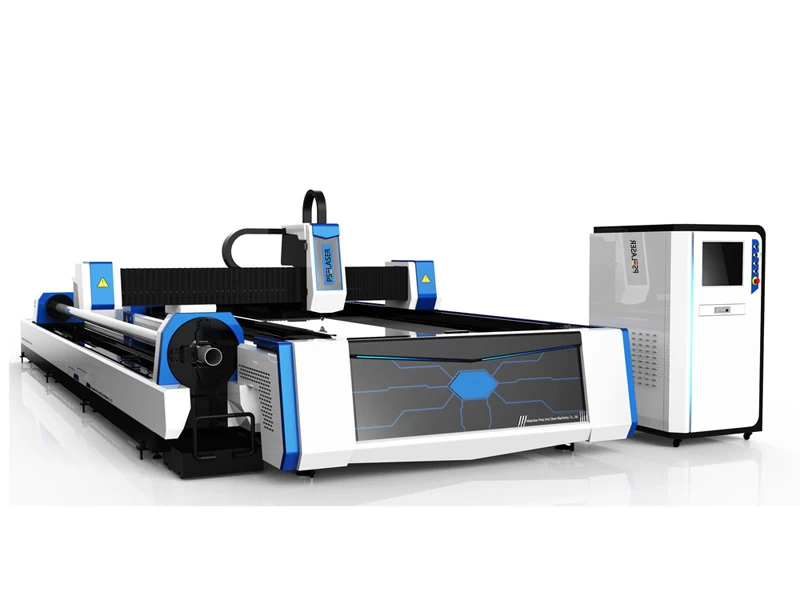

Product Item: Plate And Tube CNC Fiber Laser Cutting Machine
Metal Tube CNC Laser Cutting Machine Configuration List:
|
Fiber Laser Source
|
Raycus/IPG
|
|
Fiber Laser Cutting Head
|
Raytools/WSX
|
|
Servo Drive System
|
Schneider/ Delta
|
|
Liner Guider System
|
Lapping/THK
|
|
Transmit System
|
Dual Rack & Pinion type
|
|
Pneumatic Component
|
SMC/AirTac
|
|
ElectricSystem
|
Schneider
|
|
Motor Reducer
|
Motovario
|
|
Nesting Software
|
Cypcut
|
|
Exhaust Blower
|
Included
|
|
Water Chiller Unit
|
S&A
|
Pneumatic Chuck Clamping
1.Flexible and adjustable, improve efficiency
2.Suitable for various shapes of tube
3.Optional 3m or 6m tube cutting.
Steel plate welding:
1. High precision CNC fixed working table.
2. CNC Fiber Laser Cutting Machine use Gantry welding machine tool with high temperature heat treatment and aging treatment to ensure a smooth and high-speed cutting equipment reliability.
Fiber Laser Source:
1. Fiber Laser Module
2. Low Energy Consumption: Save energy and protect environment
3. Photoelectric conversion rate is up to 25-30%
4. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine
5. Lifetime is more than 100,000 hours
6. Almost free maintenance.
Cutting Parameter:
Laser cutting replaces
traditional mechanical knives with invisible beams, and has the
characteristics of high precision, fast cutting, not limited to cutting
pattern restrictions, smooth cuts, and low processing costs. In
addition, we also have two head laser cutters for sale, you can contact
our two head laser cutter supplier for more machine information and
purchase.
Laser Tube Cutting Machine Product Parameters:
|
Model
|
PS3015
|
PS4020
|
PS6020
|
PS6025
|
|
Working Area (L*W)
|
3000*1500 mm
|
4000*2000 mm
|
6000*2000 mm
|
6000*2500 mm
|
|
Laser Output Power
|
8000w/6000w/4000w/3000w/2000w/1500w/1000w
|
|
X/Y-axis positioning accuracy
|
± 0.05 mm
|
|
X/Y-axis repositioning accuracy
|
± 0.02 mm
|
|
X/Y-axis Max. linkage speed
|
130 m/min
|
Cutting Samples:
