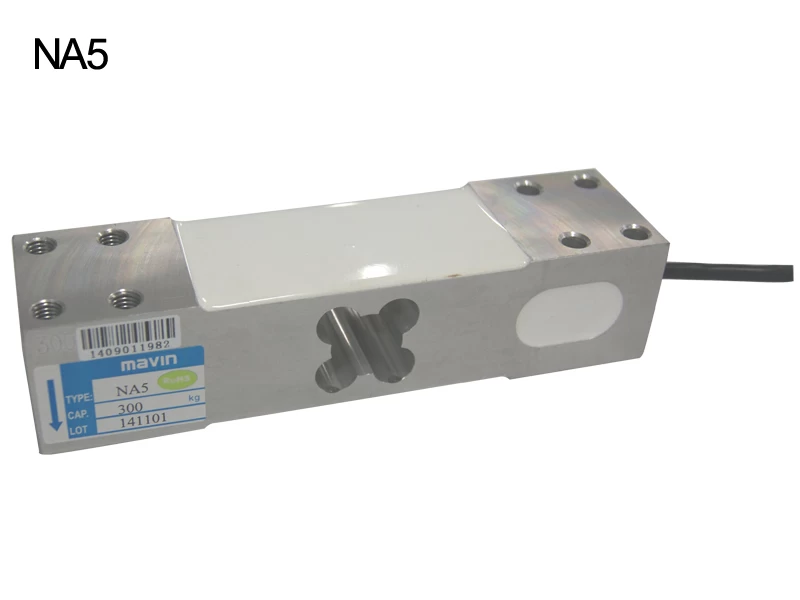

Single Point Platform Load Cell NA5
The NA5 parallel beam load cell is manufactured from high quality aluminum alloy and its design provides for high accuracy weight measurement,
Key Features：
Wide
range of capacities:100kg-800 kg
Potted
and silicone sealed construction
Calibrated
to national standards
Long
term, reliable operation
Usage & Applications：
Weighing
platforms up to600mmx600mm
Bagging,
filling and dosing systems
Checkweighers
Small
buckets and hoppers
Big
bag (FIBC) filling
Medical
scales

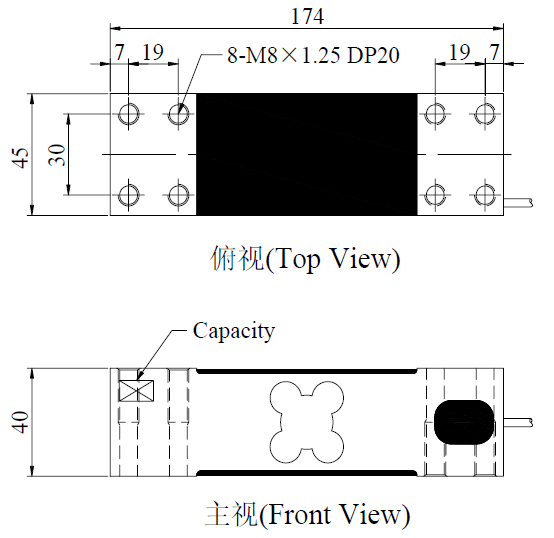

Dimension：
NA5 Specification：
|
Rated Capacities
|
60，100，200，250，300，500，800（kg）
|
|
Rated Output
|
2.0 mV/V±5%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ5×2m
|
|
Recommended Platform Size
|
500×600 mm；600×600 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
