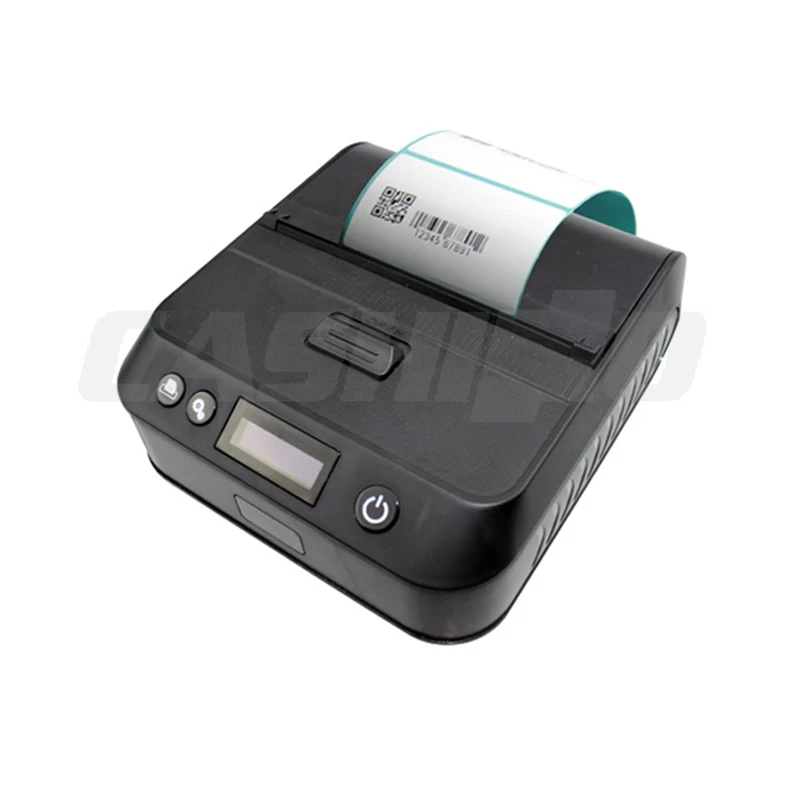

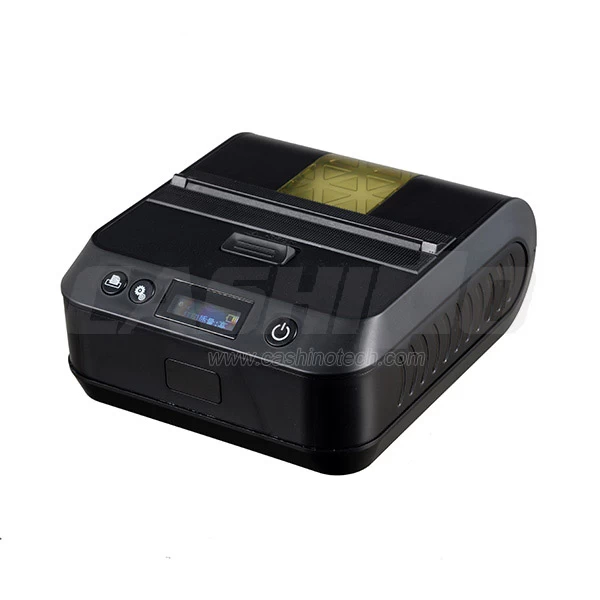

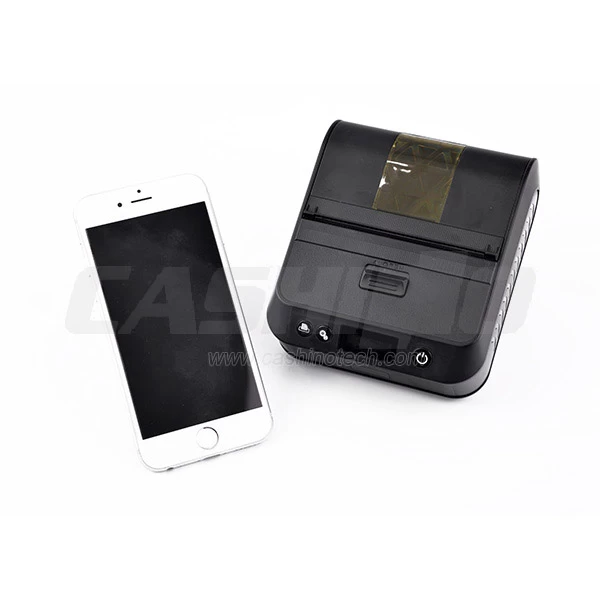

PLP-3 80mm mobile thermal label printer

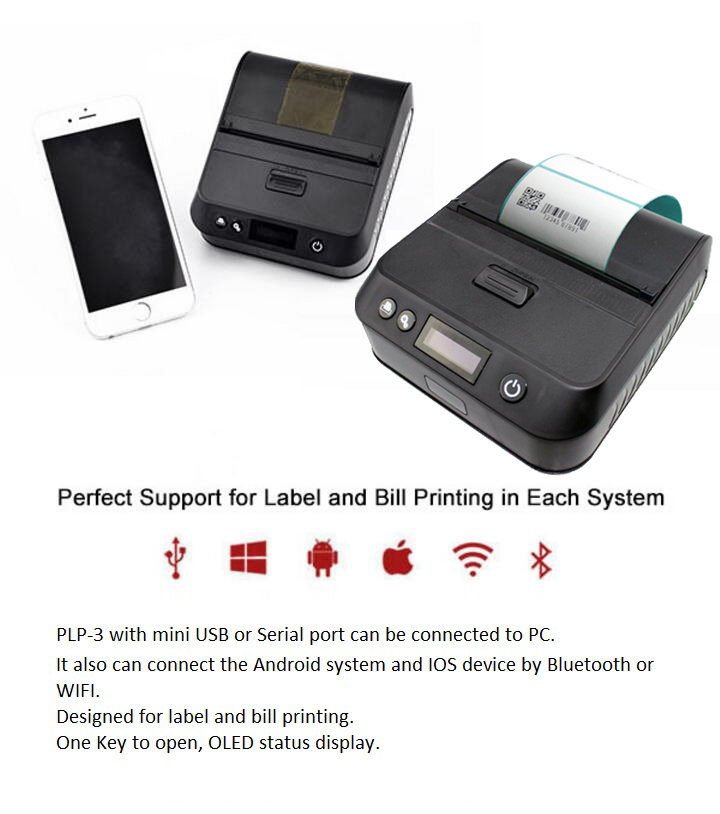

The PLP-3 can print not only thermal receipt paper but also thermal label paper. It is widely used in warehouse, logistic, shipping industry etc. With the light and portable design, you could take it out easily. Our battery power is 2000mA, 7.4V rechargeable LIthium battery. Thus it can operate as long as 8 hours continuously.
Feature:
1). USB,Bluetooth interface
2). Support android, windows driver and SDK
3). Low battery indicator(7.4V,2000mAh)
4). Provide label edit app (only Android)
5). OLED operation display
6). Campatible ESC/POS, CPCL,TSPL printing command set
7). Support label printing, also support various blank and pre-printing ticket printing.
Specification:
| MODEL |
PLP-3 |
| Print |
print mode |
Thermal line printing |
| Printing speed（Max.) |
50mm/s(label); 90mm/s(ticket) |
| Resolution |
203dpi(8dots/mm) |
| Effective printing width |
72mm |
| Paper spec. |
Paper Type |
Thermal paper/Thermal label roll |
| Paper Thickness |
Ticket:0.055-0.09mm; Label :0.10-0.16mm |
| Paper Width |
25-80mm |
| Paper Diameter |
40mm(Max.) |
| Roll Core Inner Diameter |
13mm(min) |
| Paper supply method |

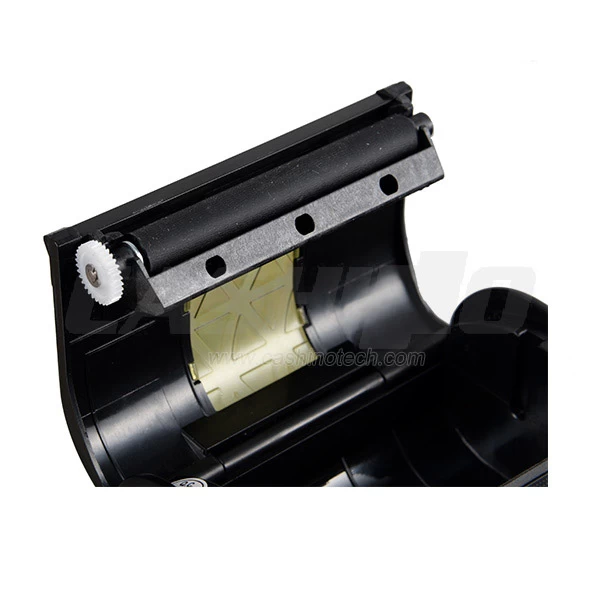

Drop-in easy loading |
| Reliability |
TPH |
50km(12.5% print ratio) |
| Detection |
Cover opend ,paper ending,paper gap, black mark(optional) |
| Barcode |
1D |
EAN-13,EAN-8,CODE39,CODE93,CODE128,CODEBAR,ITF,UPC A,UPC-E |
| 2D |
QR CODE,PDF417 |
| Text and graphic support |
Figure, symbol, graph, curve, icon, multi-languages |
| Command set |
ESC/POS,TSPL,CPCL |
| Driver/SDK |
Windows Driver, Linux Driver, Android SDK,Label editor app(android) |

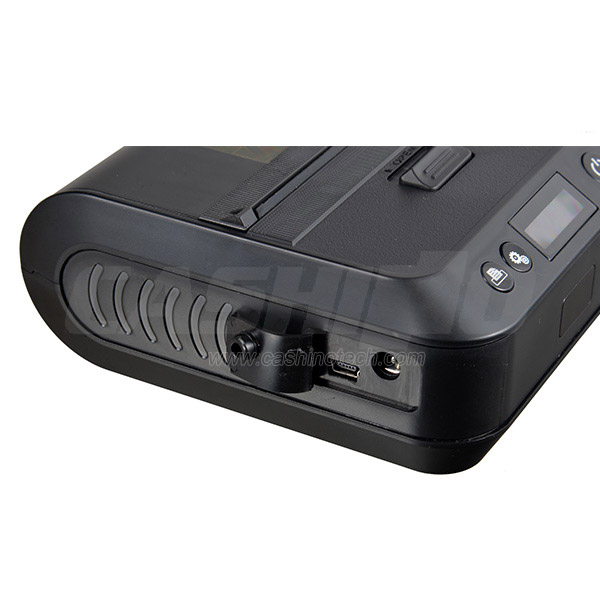

| Interface |
Wire |
Mini USB |
| Wireless |
Dual bluetooth |
| Battery |
2000mAh |
| Recharge adapter |
12V ,1A AC/DC charger |
| Accessories |
Standard accessories |
Li-ion battery, AC adapter, mini USB cable, paper roll |
| Optional accessories |

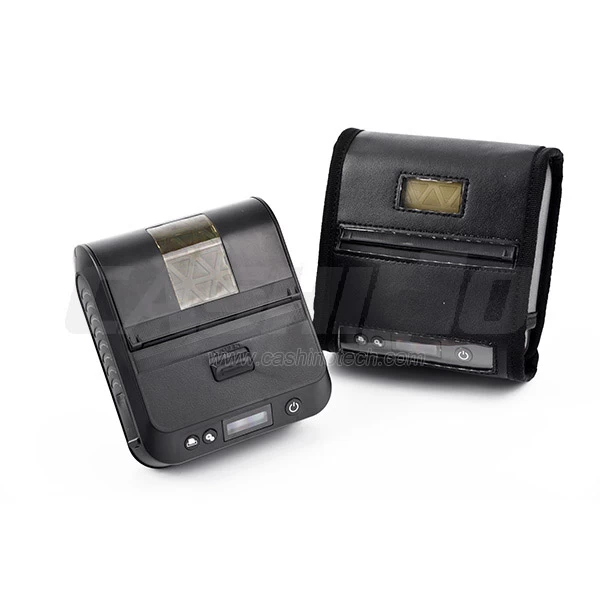

Protective Case, CD,user manual |
| Temperature |
Operating:0℃~50℃ |
| Storage:-20℃ ~ 60℃ |
| Humidity |
Operating:10%RH~80%RH |
| Storage:10%~90%RH |
Applications:
1). Mobile POS/Retail
2). Parking lot
3). Logistics delivery
4). Ship/ onboard transportation
5). On-site repaire/ Installation
6). Warehouse/ Rear service
7). Utility billing/ Meter rading
Company Information:
We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, thermal label panel mount printers, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.
Certificates:
Our Services:
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
