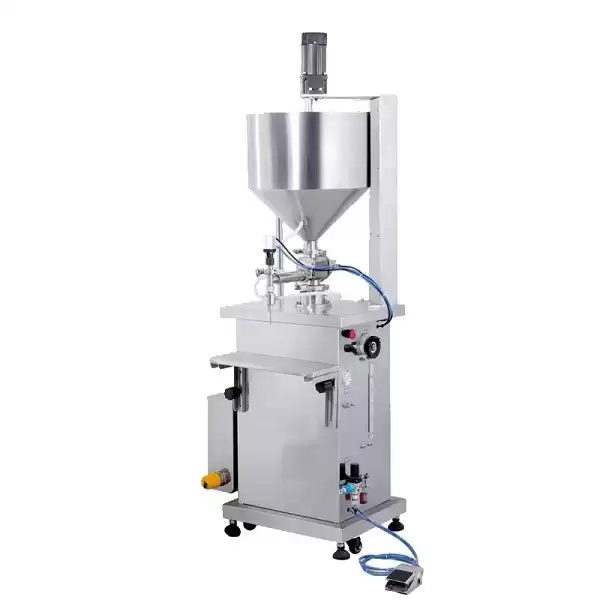

Pneumatic Paste Heat-Preservation Filling Machine

This heated hopper filling machine is suitable to measurably fill the ointment materials with high viscosity and poor flow ability.It does the filling pneumatically, vertical filling machine's hopper and the cylinder both are thermally preserved with electrically heated circulating water.The hopper is equipped with a frame mixing system.The heated filling machine is easy to clean and operate,conforming to GMP standards.



Pneumatic Paste Heat-Preservation Filling Machine

Customized And OEM Service Available

heated mixing filling machine


Product Description

Our heated mixing and filling machine for Pneumatic parts adopt Taiwan Air tac brand piston and Japan SMC. Piston of cylinder and material jar adopt tetra polyethylene and 304&316L stainless steel. Filling volume and filling speed can be controlled, high filling precision.

The hopper of this hot filling machine is equipped with a frame mixing system.The machine is easy to clean and operate,conforming to GMP standards.




Technical Parameter

Model

MZH-I-10

Mixing power

220V  0.09(kw)

Raw water pump power

220V  0.37(kw)

Heating power

                   5000 (kw)

Filling volume

10-120ml(can be adjusted as customer request)

Filling mouth

1

Dimension

650×580×2100(mm)

Bottle height

adjustable(mm)

Bottle diameter

adjustable(mm)

Capacity

20-40bot/min

Filling precision

±1.5%

Air source pressure

0.8Mpa

Working pressure

0.6 MPa≦
