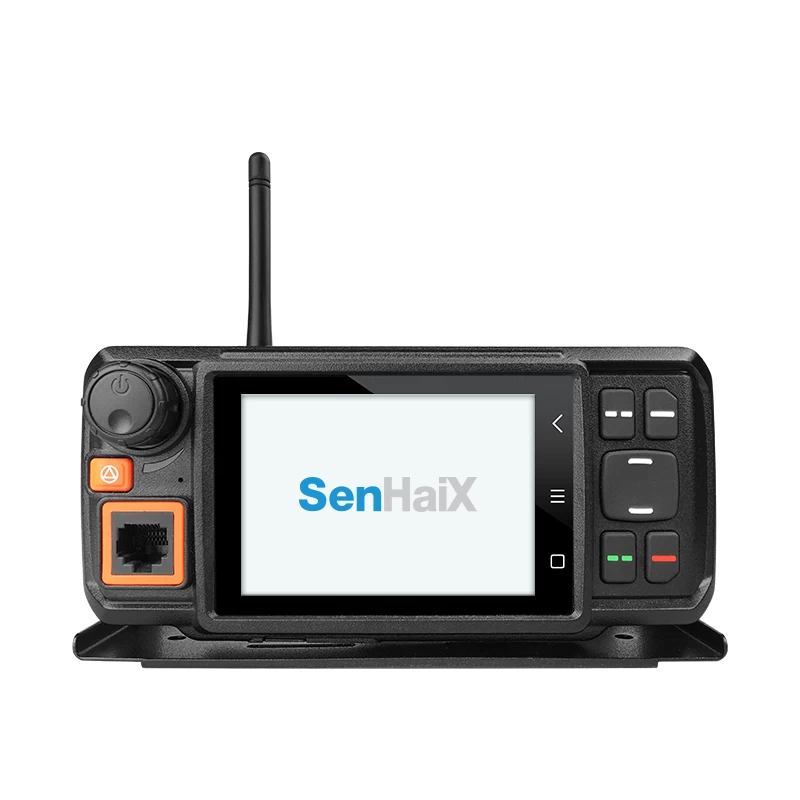

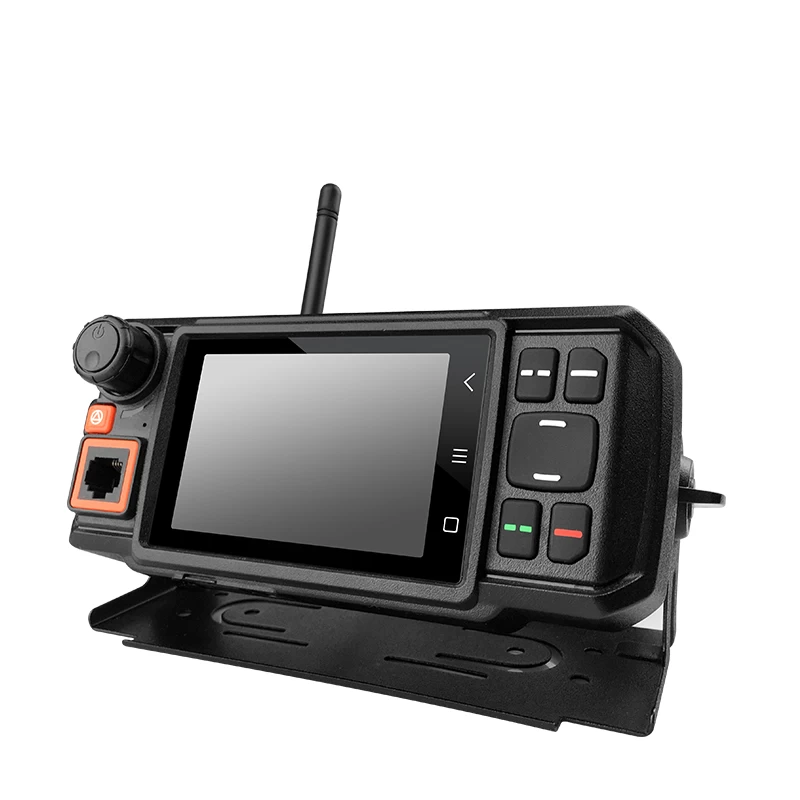

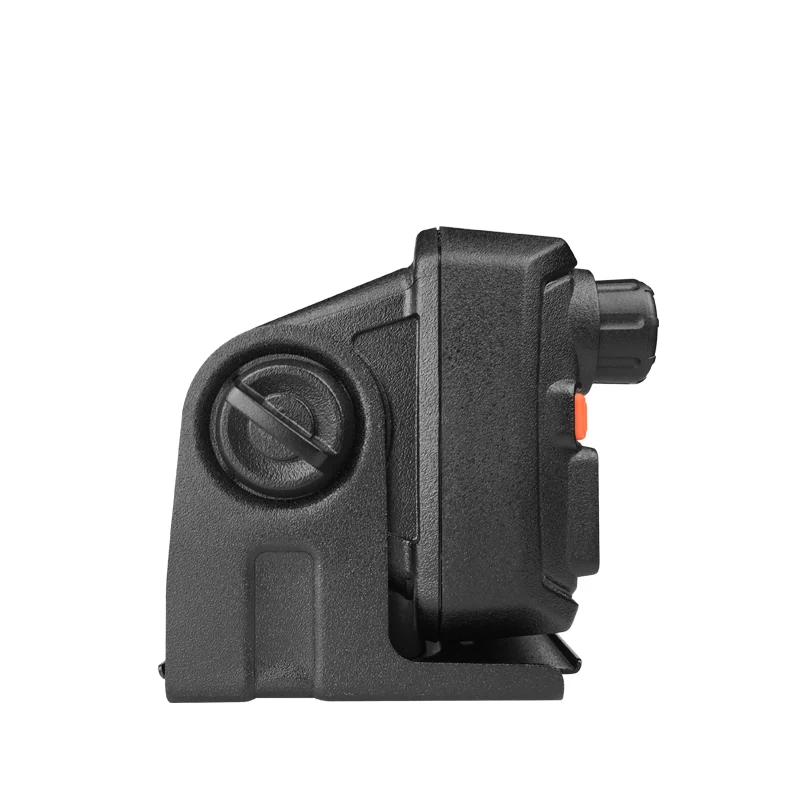

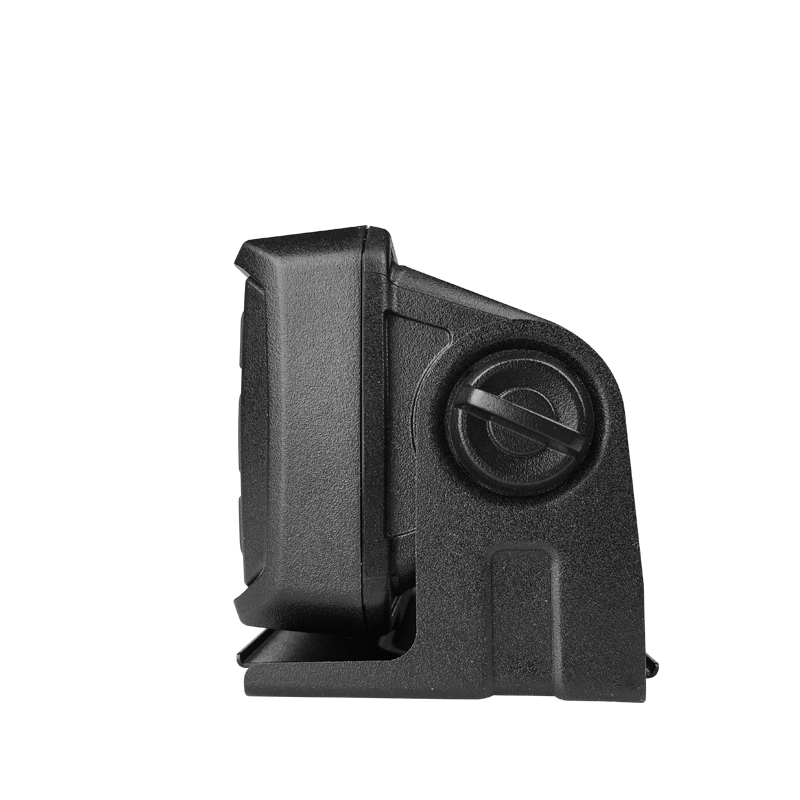

Product Name: PoC WiFi Bluetooth Android Mobile Radio
Product Features
1. OS-Android
2. Screen - 4.5 Touch LCD display
3. GPS Funtion(Logitute&Latitute Location)
4. WIFI
5. Bluetooth
6. Online Upgrade
7. Play Store
8. Phone Function
9. SOS Function
10. Zello APP
11. All Call, Group Call & Individual Call
Technical Specifications
|
General Specification
|
|
Model No.
|
SPTT-N60
|
|
Dimension
|
170x80x85mm
|
|
Weight
|
380g
|
|
Screen Size
|
4.5 inches Touch LCD
|
|
Working Voltage
|
DC 10-24V
|
|
Working Temperature
|
-30℃ to +75℃
|
|
Platform Management
|
REAL PTT
|
|
Talk Range
|
Unlimited
|
|
RF Parameter
|
|
Frequency Range
|
GSM 850/1900MHz 900/1800MHz
|
|
WCDMA 850/1900MHz 900/2100MHz
|
|
Maximum Output Power
|
WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm)
|
GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm)
|
GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
|
|
Receiving Sensitivity
|
WCDMA 2100: ≤-108dBm
|
|
WCDMA1900: ≤-109dBm
|
|
WCDMA900: ≤-109dBm
|
|
WCDMA850: ≤-109dBm
|
|
GSM850/900/1800/1900: ≤-107dBm
|
|
GPS
|
|
GPS
|
GPS Positioning, Support A-GPS function, 1.57542GHz;
|
|
Sensitivity
|
Catch -144dBm, Track -159dBm
|
|
Technical Sensitivity
|
|
Data Speed Rate
|
GSM CS: UL 9.6kpbs/ DL 9.6kpbs
|
|
GPRS: Multi-slot Class 10
|
|
EDGE: Multi-slot Class 12
|
|
WCDMA CS: UL 64kpbs/ DL 64kpbs
|
|
WCDMA PS: UL 384kpbs/ DL 394kpbs
|
|
Protocol
|
HSDPA/WCDMA/EDGE/GPRS/GSM
|
|
WIFI
|
|
WIFI
|
IEEE 802.11 b/g/n , 2.4G;
|
|
Maximum RF power
|
≤20dBm
|
|
Receiving Sensitivity
|
IEEE 802.11 g: ≤-65dBm;
|
|
BT
|
|
BT
|
Support V4.0,V3.0,V2.1
|
|
Maximum RF power
|
Class 1 ≤10dBm;
|
|
Receiving Sensitivity
|
GFSK: ≤-95dBm,DQPSK: ≤-94dBm , DPSK: ≤-88dBm;
|
We are professional manufacturer of two way communications and PoC Mobile Radio. Welcome to view more.

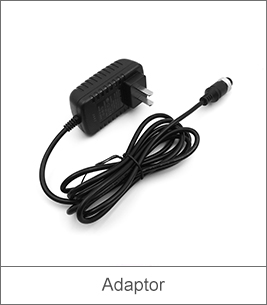

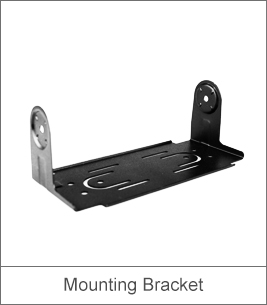

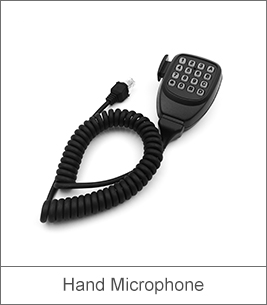

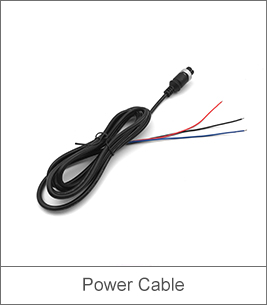

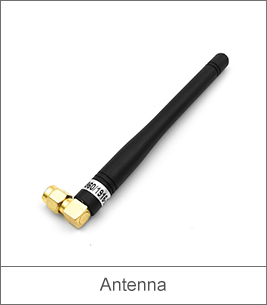

Standard Accessories

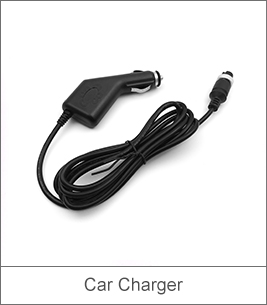

Optional Accessories
