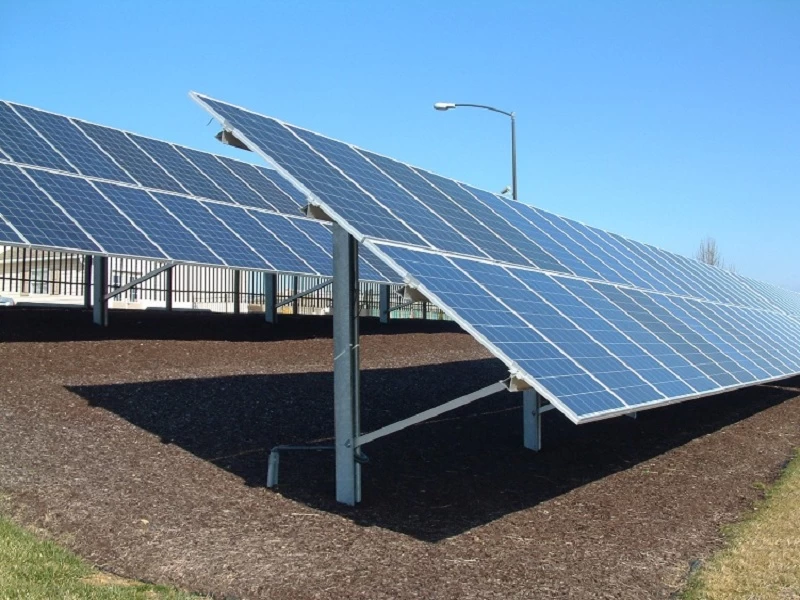

Pole Mounting System

Pole Mounting System is designed for vast open land ground solar station. It is cheap, cost-effective, and provides enormours solar power.


  • Installation SiteGround
  • HS Code76109000 & 73089000
  • Panel TypeFramed & Frameless
  • FoundationRamming Pile
  • Tilt Angle0°~60°

Pole Mounting System

Pole Mounting System is designed for vast open land ground solar station. It is cheap, cost-effective, and provides enormours solar power.



Steel Solar Ground Mounting System



Material
   AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty







pile driven mounting mounting system


System Overview


frameless module solar mount






Highly pre-assembled before shipment, save your onsite labor cost


Check and test Structure strictly for the use in extreme weather and geographical conditions.


Well install solar system on mountainous/slope without extensive land leveling, saving installers more cost.


15 years' warranty, 25 years' life span




ground mounting system installation procedure


solar plant installation steps



Product Tags ground structure          defected ground structure          ground screw structure          ground mounting structure          Ground Mount Structures          ground racking structure          solar ground racking structure          solar ground mount structures          Solar Structure Ground Mounts
