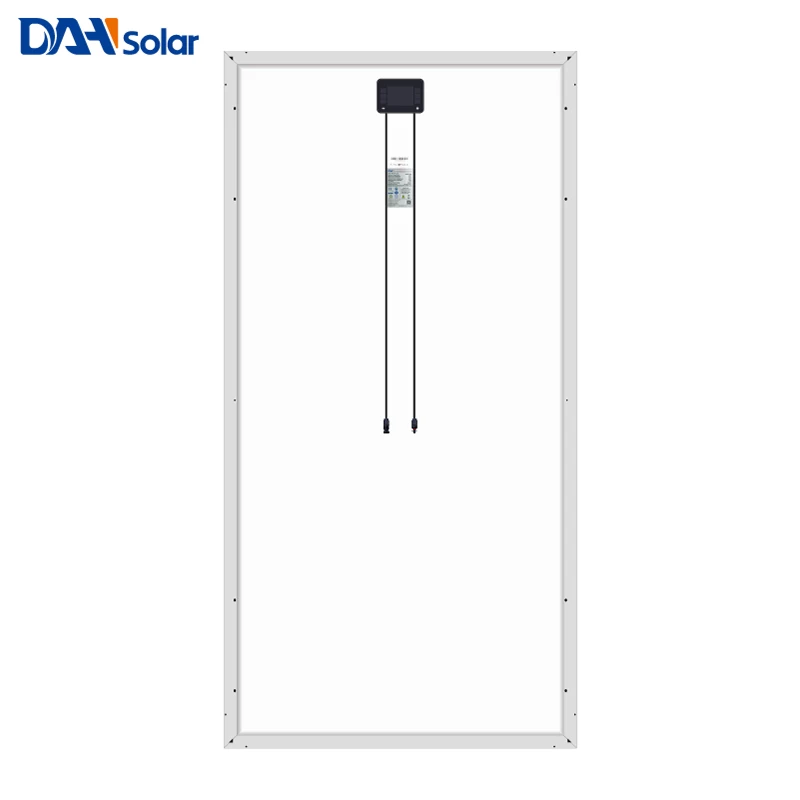

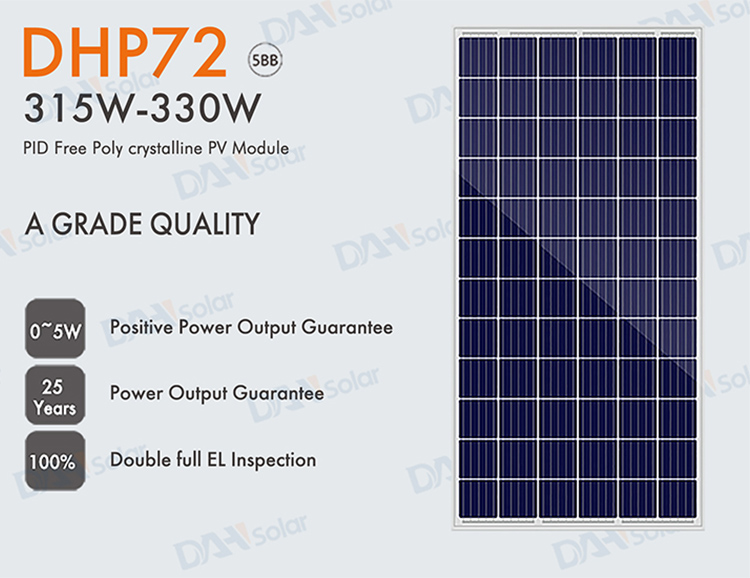

72 cells 5BB poly solar panel 315w/320w/325w/330w all with A Grade for on-grid & off-grid solar system use
Electrical Characteristics (STC)
|
Module Type
|
DHP72-315
|
DHP72-320
|
DHP72-325
|
DHP72-330
|
|
Maximum Power (Pmax)
|
315W
|
320W
|
325W
|
330W
|
|
Open-circuit Voltage (Voc)
|
45.6V
|
45.8V
|
45.9V
|
46.1V
|
|
Maximum Power Voltage (Vmp)
|
36.9V
|
37.1V
|
37.2V
|
37.3V
|
|
Short-circuit Current (Isc)
|
9.00A
|
9.10A
|
9.25A
|
9.38A
|
|
Maximum Power Current (Imp)
|
8.54A
|
8.63A
|
8.76A
|
8.85A
|
|
Module Efficiency(%)
|
16.25%
|
16.51%
|
16.77%
|
17.02%
|
|
Power Tolerance
|
0~+5W
|
|
Standard Test Environment
|
Irradiance 1000W/m2, Cell Temperature 25℃，Spectrum AM 1.5
|
72cells Packing Details
|
Container
|
20GP
|
40GP
|
40HC
|
|
pcs/pallet
|
27
|
27
|
27
|
|
pallet/container
|
10
|
24
|
24
|
|
pcs/container
|
270
|
648
|
696
|
First-class solar panel warranty Reliable quality
1. 10 years material & technology guarantee
2. 25 years linear power output guarantee
3. 0-+5W Positive power output guarantee
4. 100% Double full EL inspection
Product Characteristics
1. Excellent PID free performance.
DAH Solar’s DHP72 cells Series solar panel is PID Free module under the condition of 85℃/ 85% RH. It can be used for all applications, including Civil and commercial solar power systems.
2. Certified anti Salt-mist,anti ammonia corrosion performance, sand and storm test by TUV Rheinland and TUV Nord.
3. Excellent mechanical performance with2400 Pa wind load and 5400 Pa snow load.
4. Outstanding weak light generating performance with good quality solar panel(morning,nightfall,cloudy & rainy day).
5. Anti-reflective glass not only increase light absorption,but also reduce the power loss by its self cleaning function under rainy environment.
