Polymer Cell Battery Semi Automatic Stacking Machine for Laboratory Research

Battery manual stacking machine for pouch cell electrode and separator stacking.



 Polymer Cell Battery Semi Automatic Stacking Machine
for Laboratory Research


Product specification

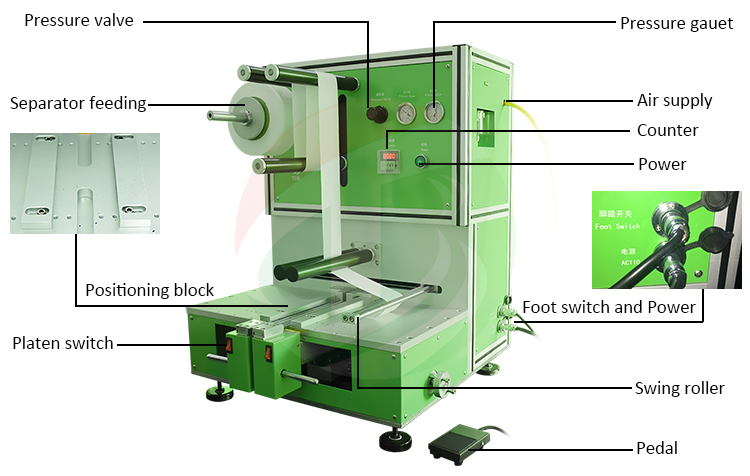

The device is suitable for lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency


Technical Parameters

Model

TOB-S-DP200-B

Maximum Separator diameter

φ220mm

Applicable electrode size

 L(0 ~ 210) mm, W(55~ 260) mm

Separator width

200mm

Correction accuracy

0.05mm

 Power supply

AC220V / 50Hz

 Compressed air source

0.5MPa ~ 0.7MPa

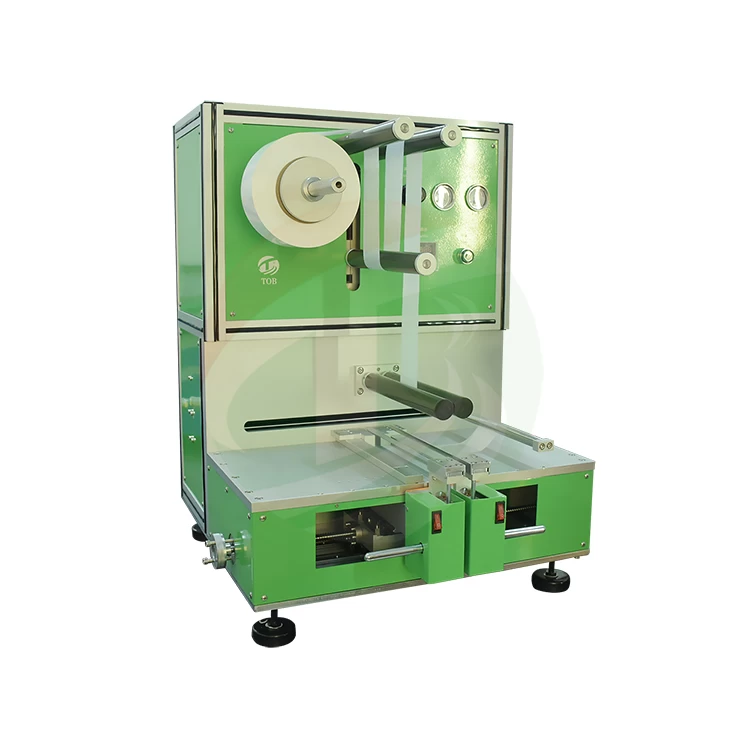

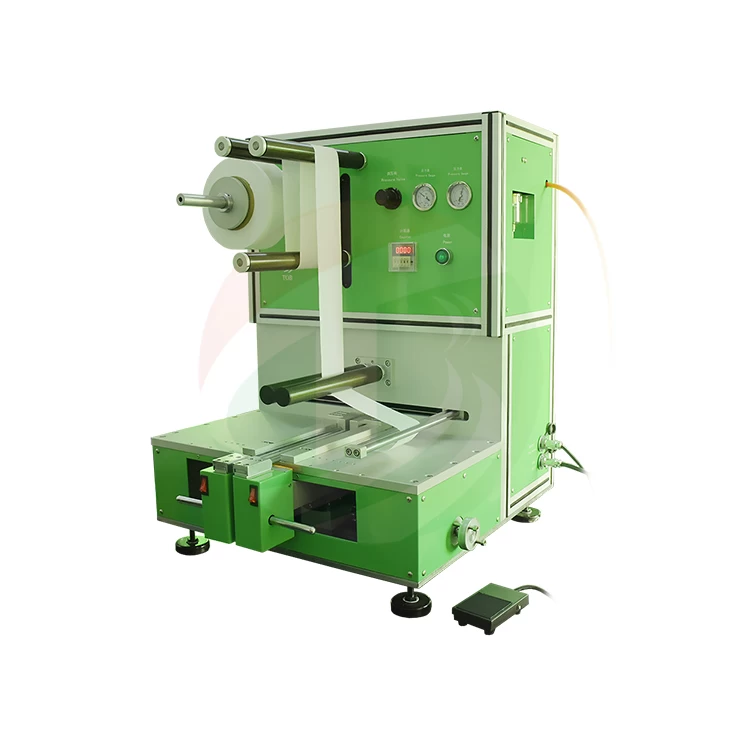

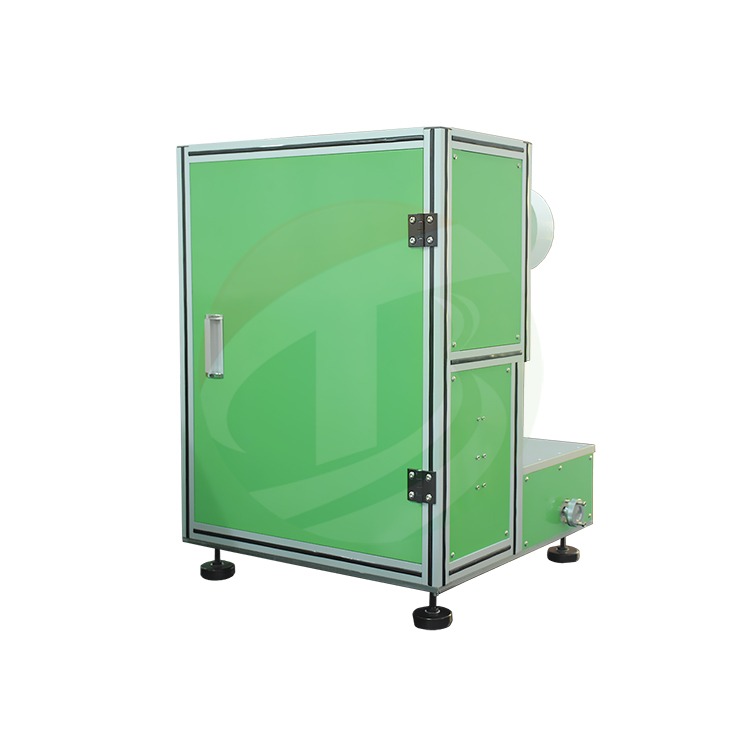

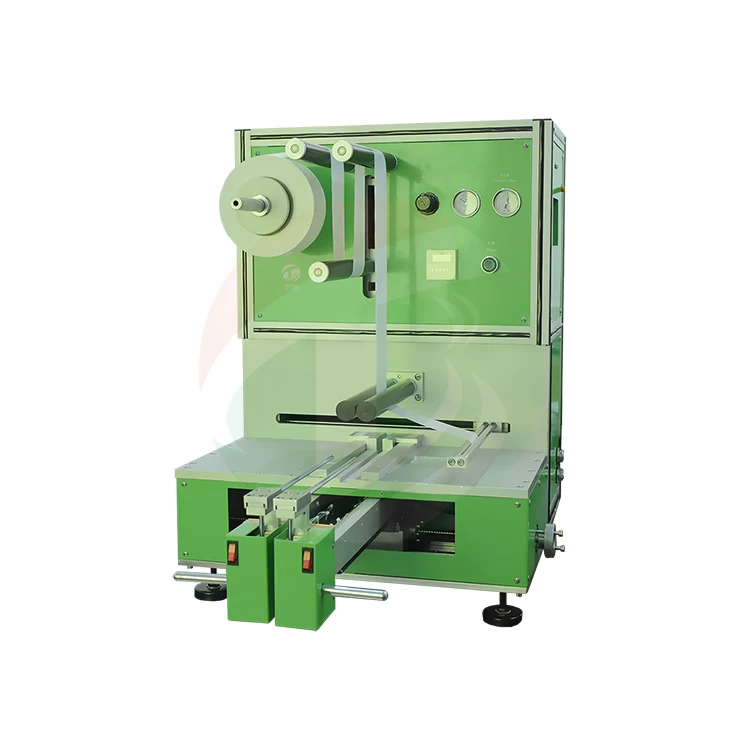

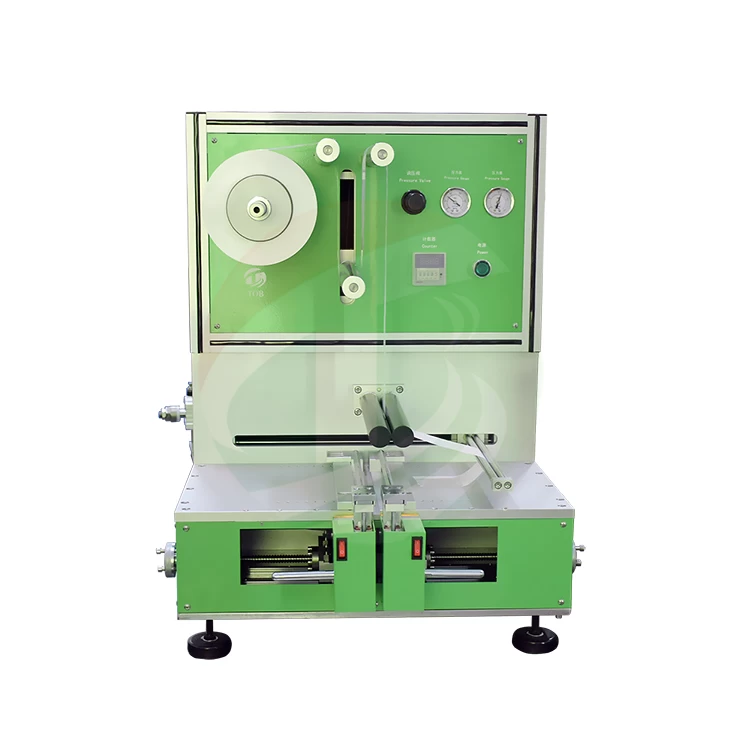

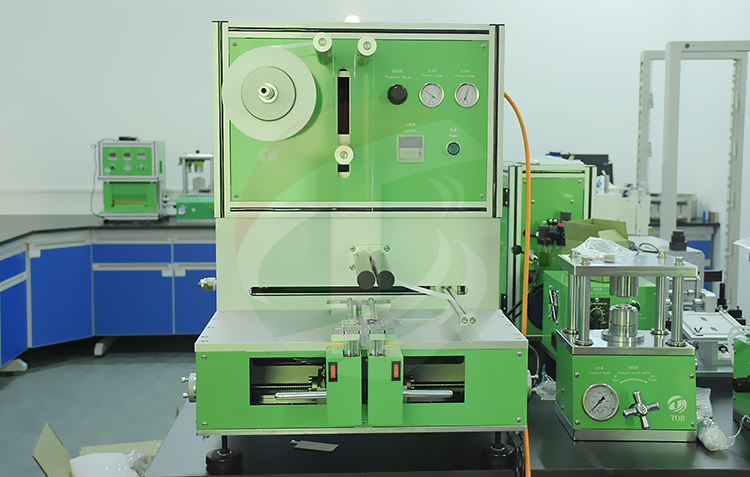

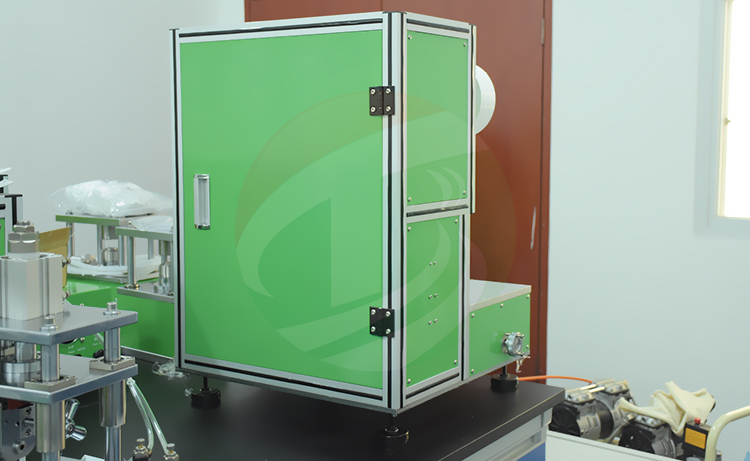

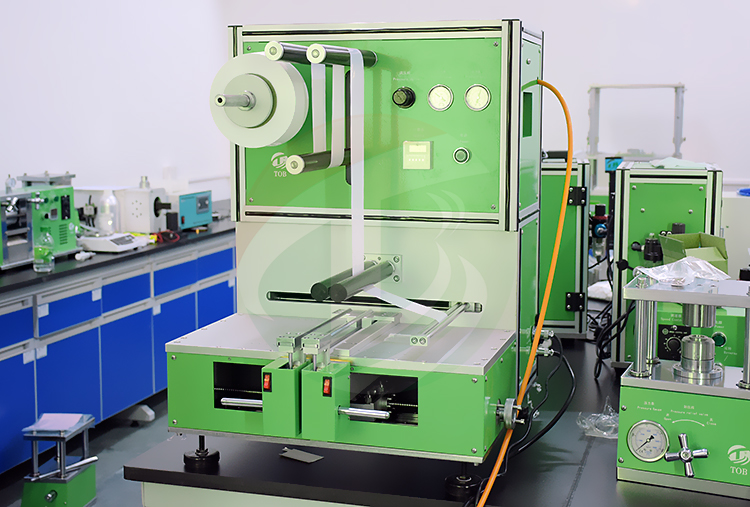

Product Images


stacking machine

battery stacking machine



semi auto stacking machine


battery stacking equipment




Product Packing
