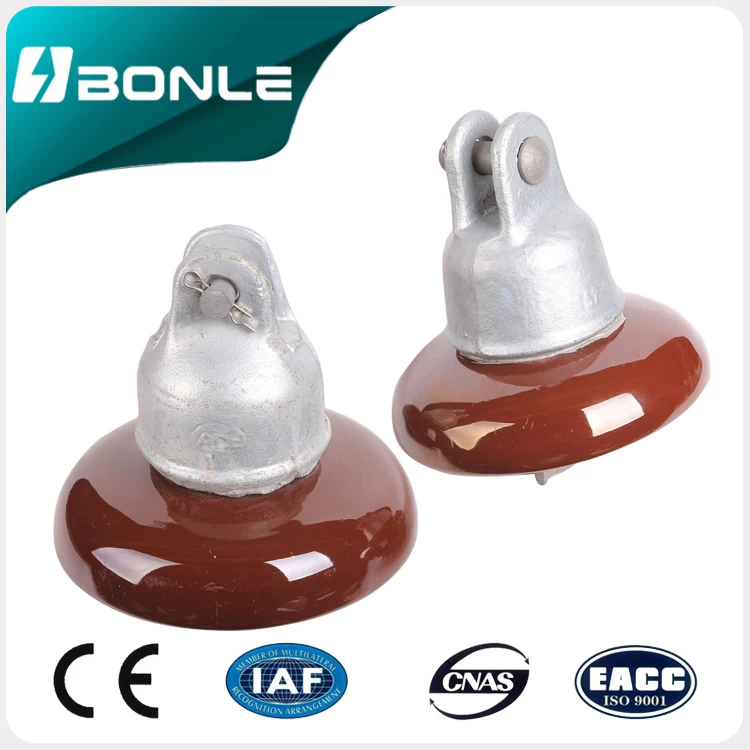

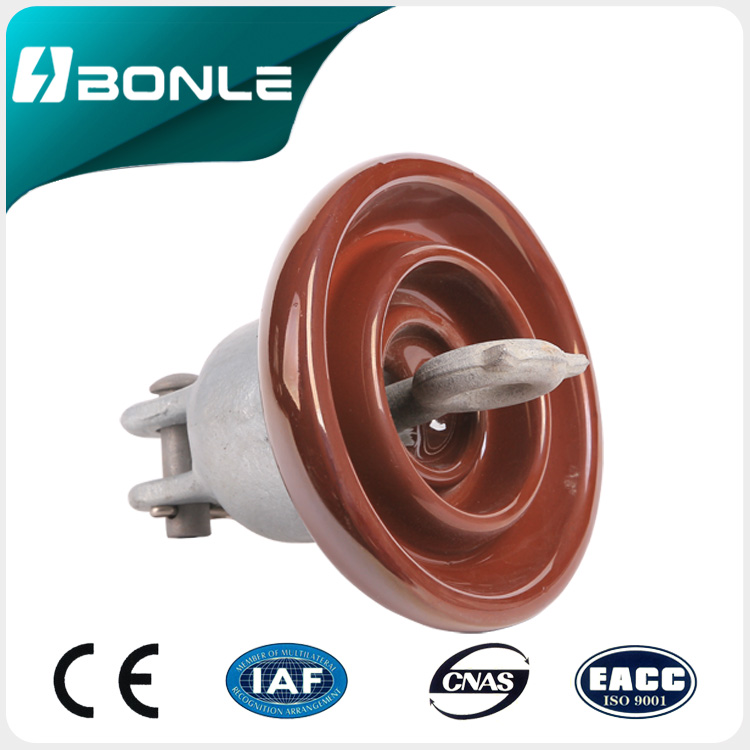

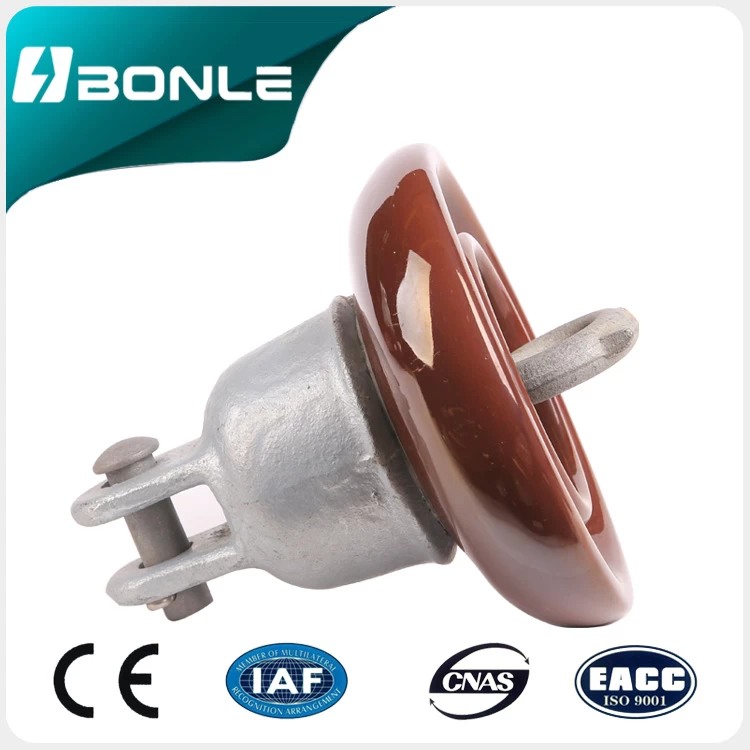

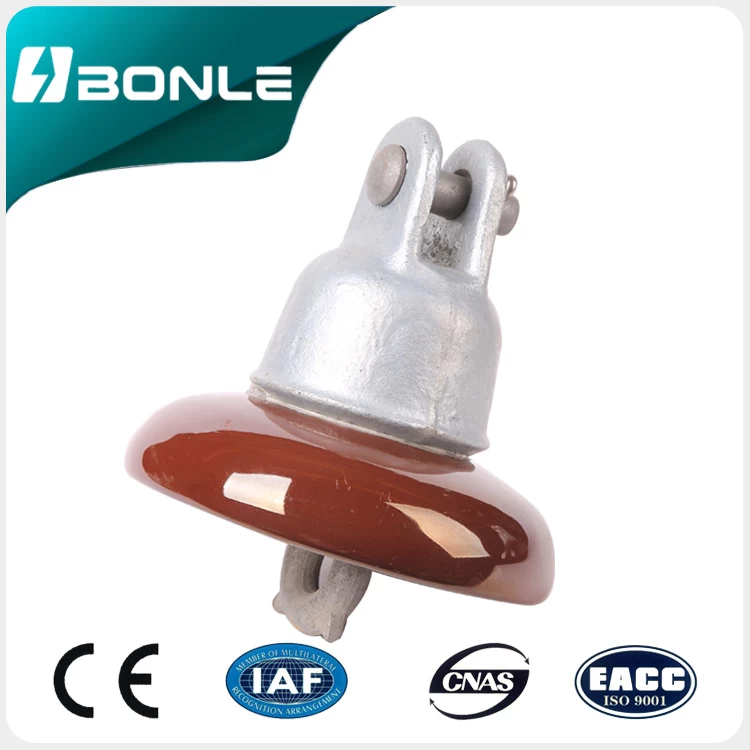

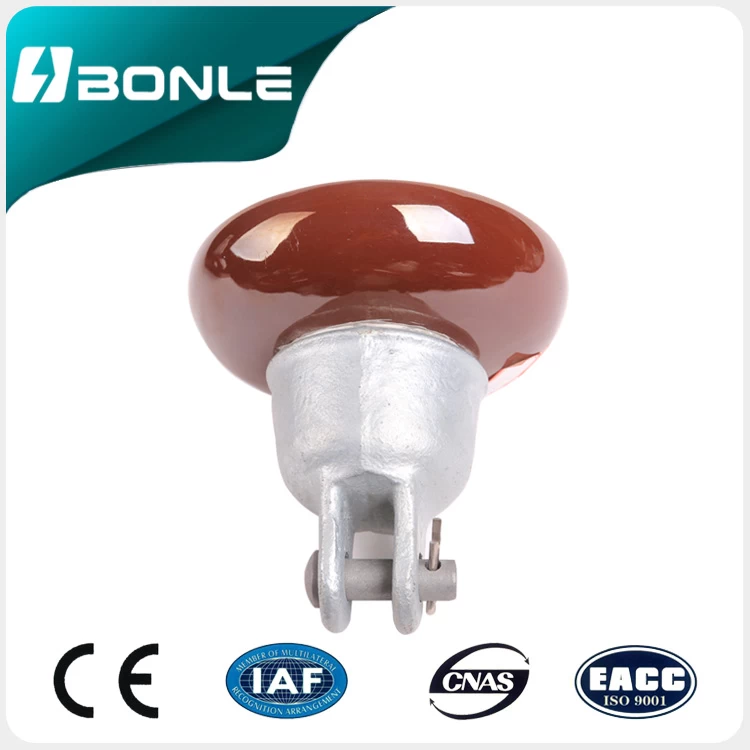

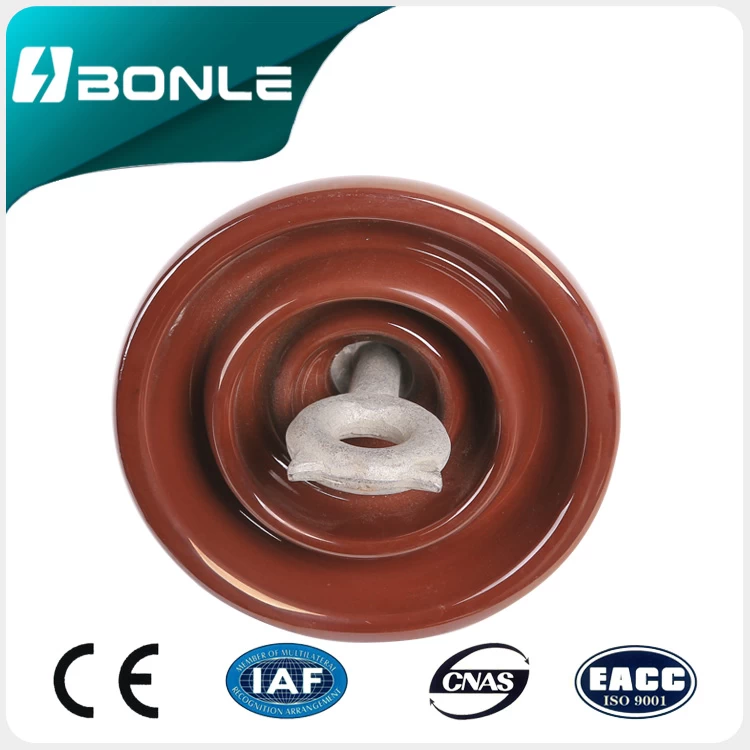

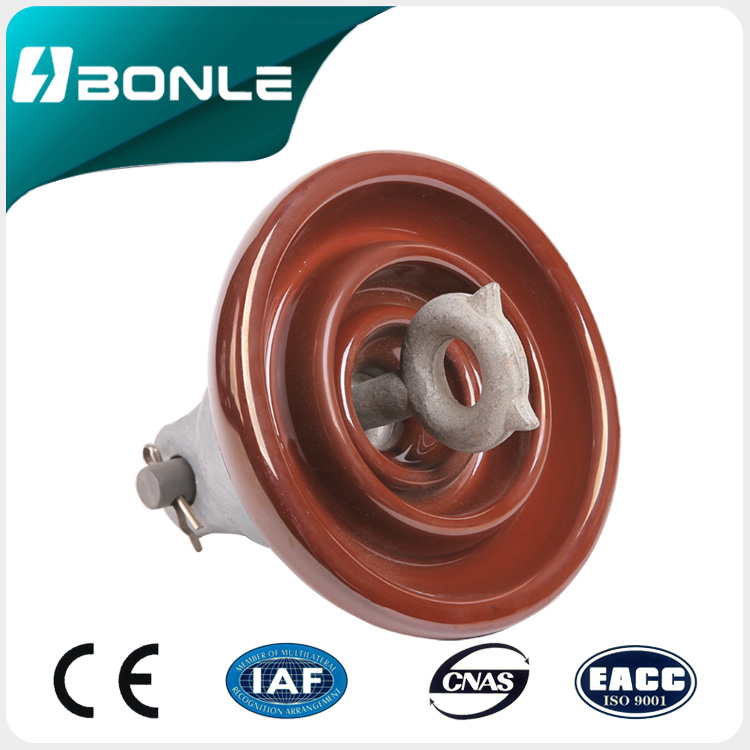

Porcelain suspension disc insulator 52-1

  • High quality standard(IEC,BS,ANSI,AS,DIN,GB)
  • Competitive price
  • ISO9001:2008/ISO14001:2004/GB/T 28001-2011/



Porcelain suspension insulator disc insulator 52-1

52-1

insulator 52-1

52-1 insulator

ANSI 52 Series Disc Suspension insulator for hot sale:

ANSI CLASS

52-1

52-2

52-3

52-4

52-5

52-6

52-8

52-9

52-9

52-10

Fig. No.

1

2

3

4

3

4

3

5

6

4

Main Dimensions (mm)

D

165

190.5

254

254

254

254

280

114

133

280

H

140

146

146

146

146

146

146

159

159

165

Leakage Distance/mm

178

210

292

292

292

292

280

171

171

280

Power-Frequency Puncture Voltage kV

80

90

110

110

110

110

110

80

80

110

Average Flashover voltage

Power Frequency

Dry/kV

60

65

80

80

80

80

80

60

60

80

Wet/kV

30

35

50

50

50

50

50

30

30

50

Critical-Impulse 1.5x40us Wave

Positive/kV

100

115

125

125

125

125

125

110

110

125

Negative/kV

100

115

130

130

130

130

130

90

90

130

Radio-Influence

voltage

Test Voltage to ground/kV

7.5

7.5

10

10

10

10

10

7.5

7.5

10

Maximum RIV at 1000kHz/uV

50

50

50

50

50

50

50

50

50

50

Rated E&M Failing Load/kN

44

70

70

70

111

111

160

44

44

160

Tension Proof Load/kN

22

35

35

35

55.5

55.5

80

22

22

80

Impact Strength/N.m

5

5.5

6

6

7

7

10

5

5

10



 We’re professional Disc Insulator manufacture,supply various Porcelain Insulator etc. Best services!




Product Tags is porcelain an insulator          porcelain insulator          porcelain is insulator          porcelain electrical insulators          porcelain post insulators          porcelain insulator properties          porcelain pin insulators          porcelain standoff insulators          porcelain disc insulators

INQUIRY

Contact us for all information about the product


click here to leave a message

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
