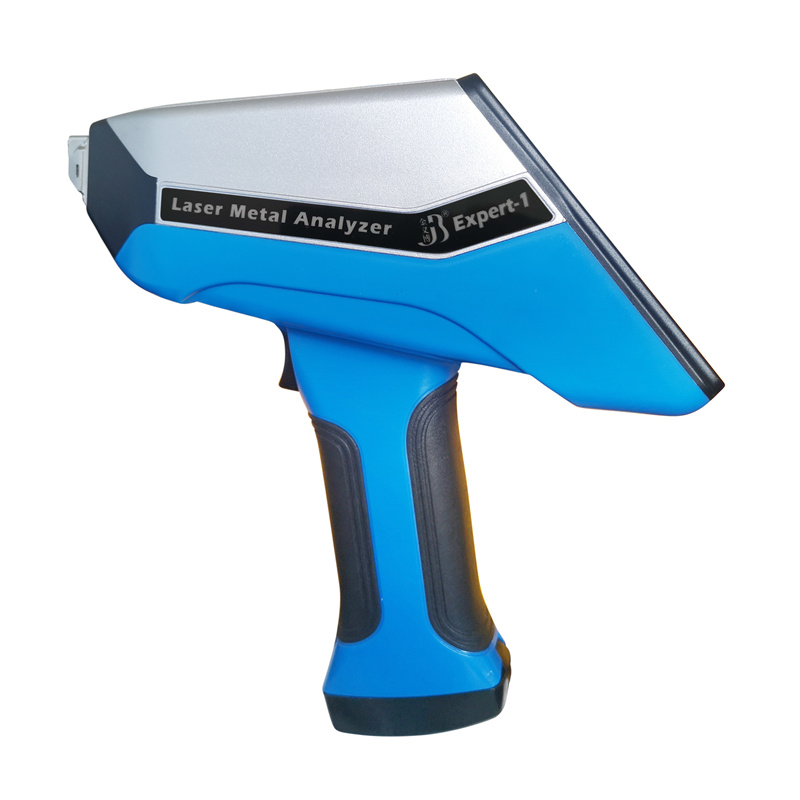

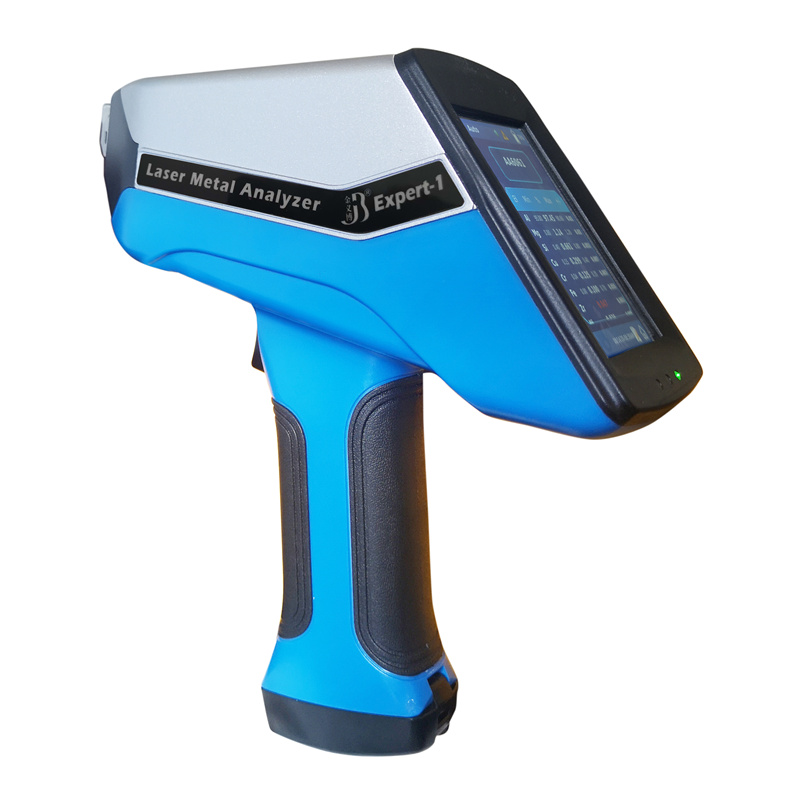

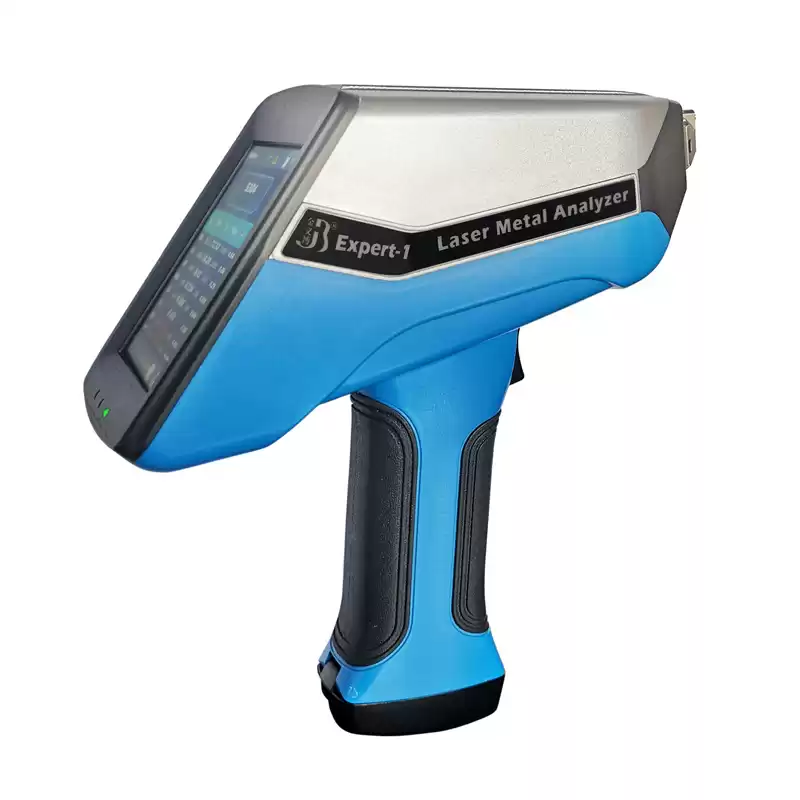

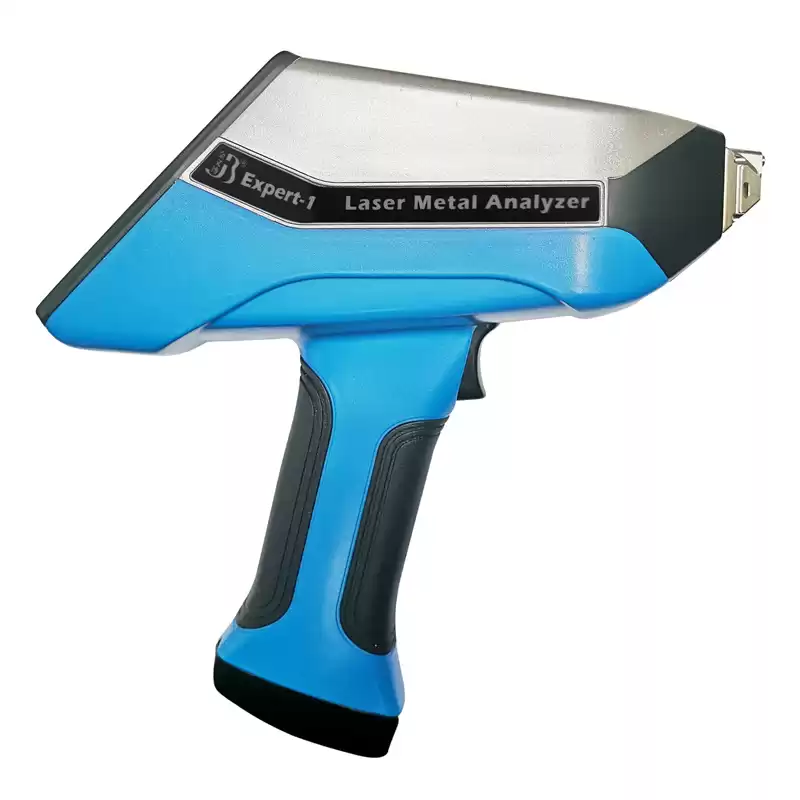

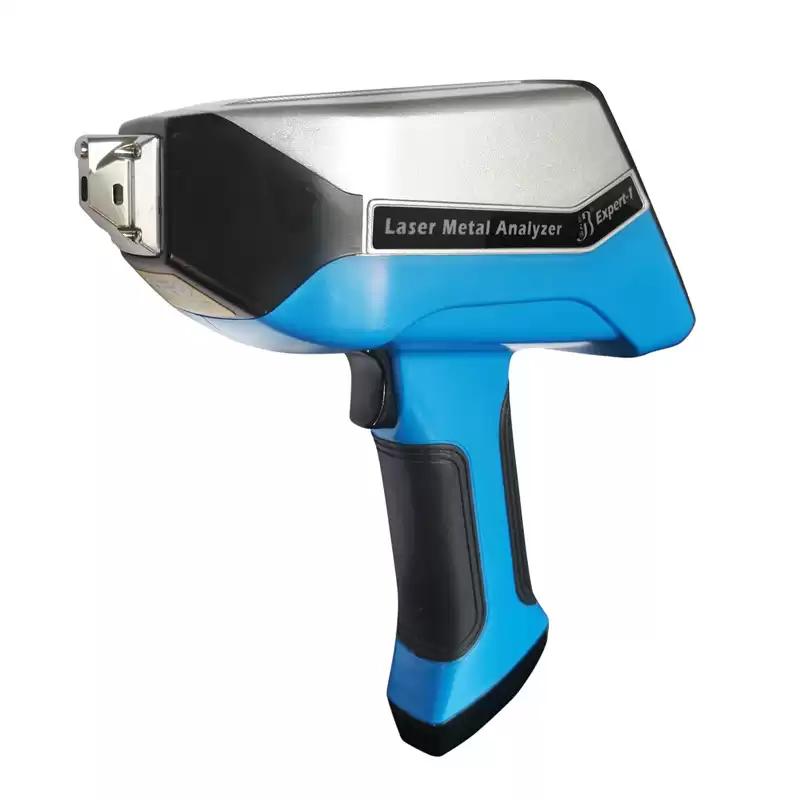

Portable LIBS Metal Analyzer

The Fastest Laser Metal Analyzer

Fast. Durable. Accurate.

Reliable, high-productivity metal grade analysis in only 1 second for most alloys

Idea for scrap metals sorting

Positive Material Identification (PMI)

Safe and nonradiative

Low owner cost

Especially for aluminium alloy grade and composition analysis





Summary:

Expert 1 Portable LIBS Metal Analyzer is one of the fastest metals analyzers in the world. Just squeeze the trigger and one second later the result appears. It’s a laser analyzer that will last, even in the toughest scrapyard conditions. As its user interface is simple, LIBS significantly reduces user error, so you get far more accurate and consistent results.

Using LIBS allows you to identify and analyze a wide range of alloys. It gives results on all common alloys, including aluminum, magnesium, titanium, cobalt, chromium, nickel, and copper alloys as well as stainless steels, tool steel, low alloy steels and more.



Key Applications:

Fabrication and Positive Material Identification, PMI

Expert 1 Portable LIBS Metal Analyzer can quickly identify all kinds of stainless steel such as 304, 316, 316Fe, 321, and aluminum alloy such as 6061 and 6063. It also can detect Si and Cu content of aluminum and zinc alloy raw materials to determine whether the quality of raw materials meets the standard.



Recycling and sorting

Along with recycling and the proportion of recycled raw materials used in the metallurgical industry has increased year by year, LIBS can filter recycled material before customers are buying, sorting and melting, when the machine is ready for delivery before, the workers will confirm again, this step provides effective protection for production and sales. And it can improve quality management system, reduce error rate and reduce cost and improve efficiency.

Trading

In various metal trading markets, both parties can use LIBS to identify for stainless steel, aluminum alloy and copper alloy and on-site quantitative detection of main components so as to avoid losses due to material failure.



Features:

1. SIMPLE TO USE

Operate it all day long on a single battery and without referring to a manual. The instrument is ready to go straight out of the box.

2. PRACTICAL

It’s compact, ergonomic and light(1.5kg), making it comfortable for daily use. The screen is easy to read, even in direct sunlight.

3. BULE TO LAST

Its measurement optics are protected by sample glass, one of the toughest materials available. It’s also splash water and dust proof (IP54 certified), and complies with the (GB/T2323.2-2008), (GB/T2323.10-2008), (GB/T2323.5-1995), (GB/T2323.6-1995), (GB/T17626.9-2011) grade standard for ruggedness.

4. SAVES TIME

A reliable grade ID in just one second. When sorting aluminum alloys, LIBS can be up to 10 times faster than XRF.

5. LOW COST OF OWNERSHIP

A much lower cost of ownership than an XRF analyzer, which requires expensive licenses and time consuming radiation safety training classes.

6. LAST TECHNOLOGY

Share and store your results securely, and generate reports with our cloud-based service. You can also connect LIBS directly to portable blueteeth printer.



Parameter:

Item

Index

Technology

Passively Q-switch solid-state laser

Elements

Al Be Bi Cu Cr Fe Mg Mn Ni Si Ti Zn…..

Grades

1-8 series aluminum alloy,2-4 series stainless steel, alloy steel, brass, titanium alloy, zinc alloy

LOD

0.01-0.1%

Datebase

UNS or customized

Sample shape

· Blocky, Sheet(0.1mm), Arc-shaped and various shaped surfaces

Single test time

1s

Spectrum

<0.2nm resolution, 250~415nm

Laser safety

Class 3B,1064nm

Size (length, width, height)

227*86*234 mm, about 1.25kg( Including battery)

Battery capacity

14.8V,3250mAH(48W). Working continuously for more than 6 hours

Waterproof level

Tested by IP54 dustproof and waterproof (GB/T 4208-2008)

 Connection

WIFI (IEEE 802.11b/g/n 2.4GHz), Bluetooth 4.0

Display

4.0 inch touch resistance screen,320*480 resolution

Memory

8GB

Language

Chinese, English, Deutsch, Spanish, Russian

Operating temperature

0~40℃, recommended operating temperature is 5~35℃

Consumables

No consumables

Bluetooth printing

Optional portable Bluetooth printer

Special panels

Customizable arc panels of various radii to fit pipe and curved material

Warranty service

Original one-year warranty, you can purchase additional warranty service



Compare with HHXRF:



LIBS

Handheld XRF spectrometer

Safety

Without any ionizing radiation, 3B human eye safety laser

There is X photoionizing radiation, it needs to be safely protected during use, and employees need to undergo strict training and then go to work.

Detection speed

Just squeeze the trigger and one second later the result appears.

Long test time, 10 to 60 seconds per test

Maintenance cost

No wearing parts, the core unit has a service life of more than one million tests, and the maintenance cost of normal use is extremely low.

X-ray tube, fluorescent detector are all consumable, vulnerable parts, expensive replacement

Analyzable element

Covers almost all metal elements and can be used to identify grades and components

Important for the identification of heavy metal elements, such as stainless steel, alloy steel, but not suitable for testing light elements such as Mg, Al.



Products Features:

Class 3B laser

We use high-energy pulse-based safety laser technology, all-fluorescence-free (XRF) ionizing radiation hazard. The laser is no longer collimated after it has been concentrated by the optical path, and it does not harm the eyes during normal use. The reliable pulsed lasers have a long life span and typically last more than a million lifetimes.

Laser safety switch

LIBS is designed with a safety on the head. It requires the panel to be close to the surface of the object to be tested before the laser can be turned on for testing, avoiding misoperation and triggering the laser. It is available with mechanical and photographic safety switches to accommodate flat, curved and debris-like objects.

Top industry design

Fully enclosed housing (IP54) waterproof and dustproof. The body of machine is made of aluminum alloy, so it is very strong and wearable and it is suitable for long-time handheld operation. Large-capacity lithium battery pack can be used continuously for a whole day. The instrument does not have any fragile parts. It is more reliable than traditional fluorescence spectrometers, users can use it for long periods of time with minimal maintenance.
