Features：

1. Equipped with two microphone jacks to realize two-person singing together on one device;

2. Professional voltage limiting technology to avoid voice cracking at high volume;

3. Connect to phone/tablet to freely enjoy online karaoke;

4. Powerful and user-friendly PC control panel, easy to operate;

5. Original one-click VST audio effects, convenient and effective;

Specifications：

Dimension:103×88×28 mm

Net weight:130g

Mic1 Input:3.5mm

Mic2 Input:3.5mm

Line out:3.5mm

Mobile Input:3.5mm

Earphone Input:3.5mm

Headphone Input:3.5mm

Power Consumption:≦1.25W(USB 5V,250mA)

SNR:≧105dB(music);≧85dB(record) Distortion≦0.05%(music);≦0.1%(record)

FAQ:
Q1.How can I restore factory default? Firstly download corresponding control panel from our website: www.xoxchina.com. After you finish installation, open the control panel and click button Factory Default to restore it.

Q2.How can I connect instrument?
You can connect your instrument to Instrument In jack. If there isn’t any sound after you connect to this jack, you may buy an instrument amplifier in your local market to connect them.

Q 3. What should I do if either my audience or myself cannot hear any sound (microphone sound, music played on your computer etc.)?
Step 1: referring to the Wiring Diagram, you must make sure of the right connections.
Step 2: download corresponding control panel from our website: www.xoxchina.com. Restore factory default on the control panel after installation.
Step 3: make sure you haven’t checked the Mute box, nor set too small nor set the volume too low.
Step 4: adjust Mic Vol knob clockwise on your device body to increase the volume.

Q4.What should I do if I cannot hear reverb or dodge FX (audio effect)?
Step 1: download corresponding control panel from our website: www.xoxchina.com. Restore factory default on the control panel after installation.
Step 2: choose corresponding mode according to your need. Only under Studio mode can dodge FX be adjusted. And you can adjust reverb FX under Sing Mode.


MOQ:20

Packaging & Delivery

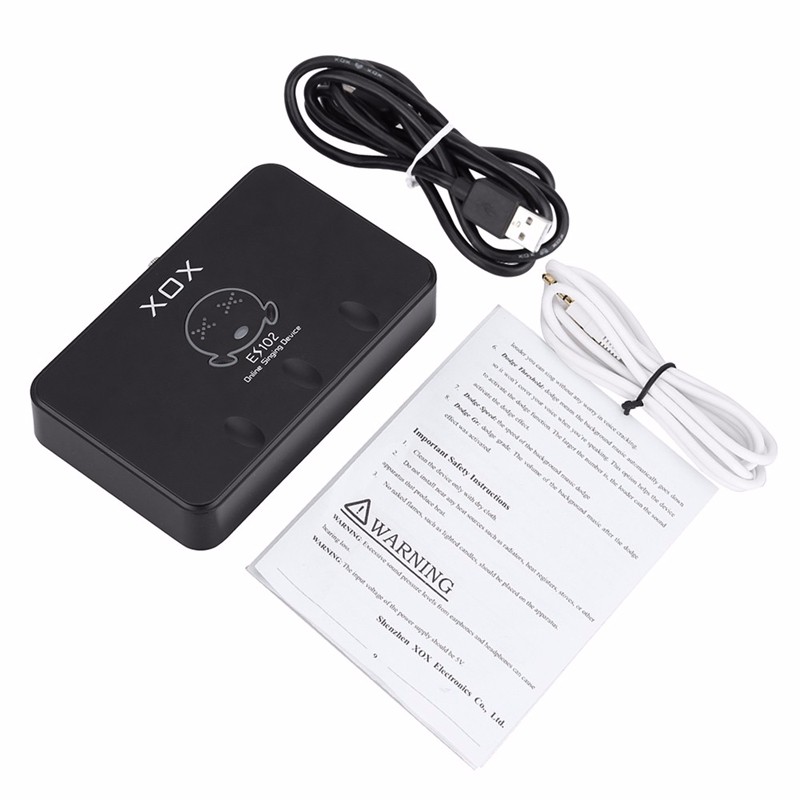

Packaging DetailsPackaged in a box and then in a carton

Delivery TimeShipped in 20 days after payment

ES102 Control Panel Download
