Positive Reflective HTN 12 O'Clock 7 Segment LCD Display

Basic Info.

Display Type Reflective AA 44x61.3mm
View Angle 12 O′clock VDD 3.12V
Duty 1/4 Bias 1/3
Connector Pin Operating Temp. -30°~80°C
Environmental Protection RoHS HSF Interface None
Control IC None Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable

Positive Reflective HTN 12 O'Clock Segment LCD Display

A HTN segment LCD display means high twisted nematic LCD segment display. There are many display type for a dot matrix LCD display such as transmissive, reflective, transflective, etc. It manly depends on the ambient the LCD seven segment display applied to according to the clients. It also determines if the backlight is required or not. For example, for a reflective type custom segment LCD, normally a backlight is required for display.


Segment LCD Display Module
Product Parameters
Display Type Reflective
Display Mode Postitive
View Angle 12 o'clock
AA 44x61.3mm
Driving Condition VOP 3.12V
Duty 1/4
Bias 1/3
Connetor Pin
Display Technology COB
Control IC None
Interface None
Operating Temperature -30-80°C, custom
Requirements On Environmental Protection ROHS HSF

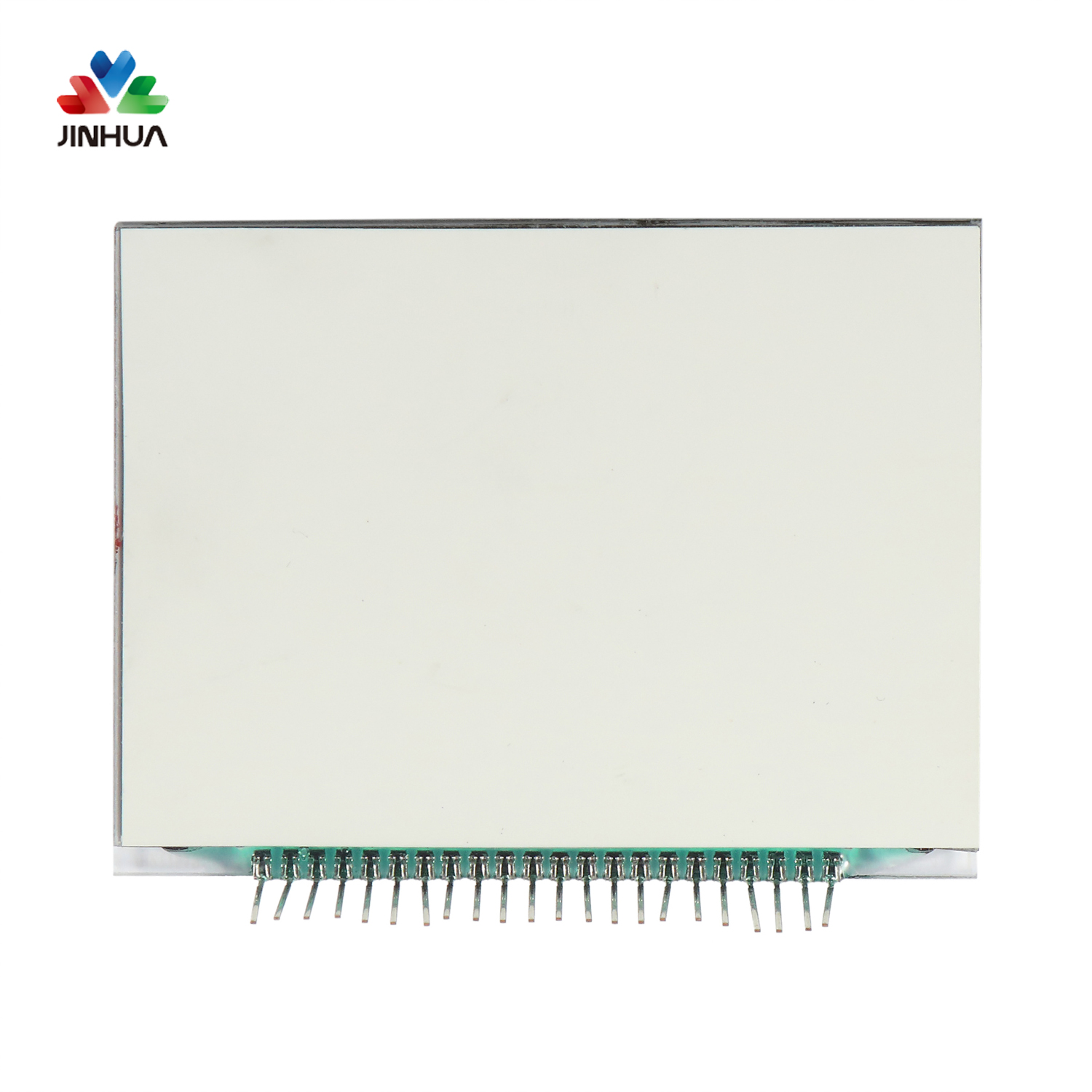

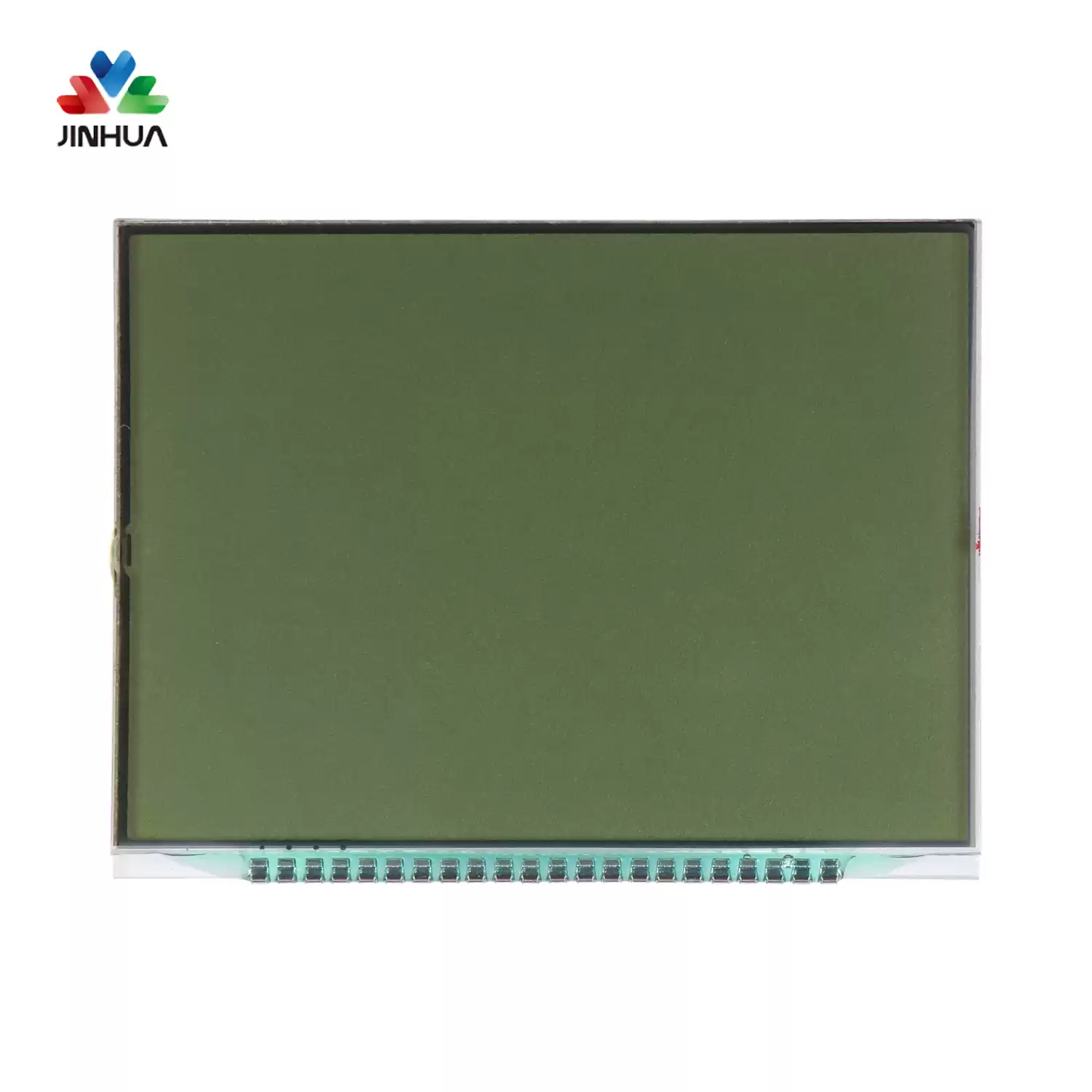

Detailed Picture

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



HTN Segment LCD Module coming with high twisted nematic which brings it with wide range of view angle. This helps it is available for plenty of application such as medical equipment, home appliance, industrial instrument, electronics and electric both indoors and outdoors.

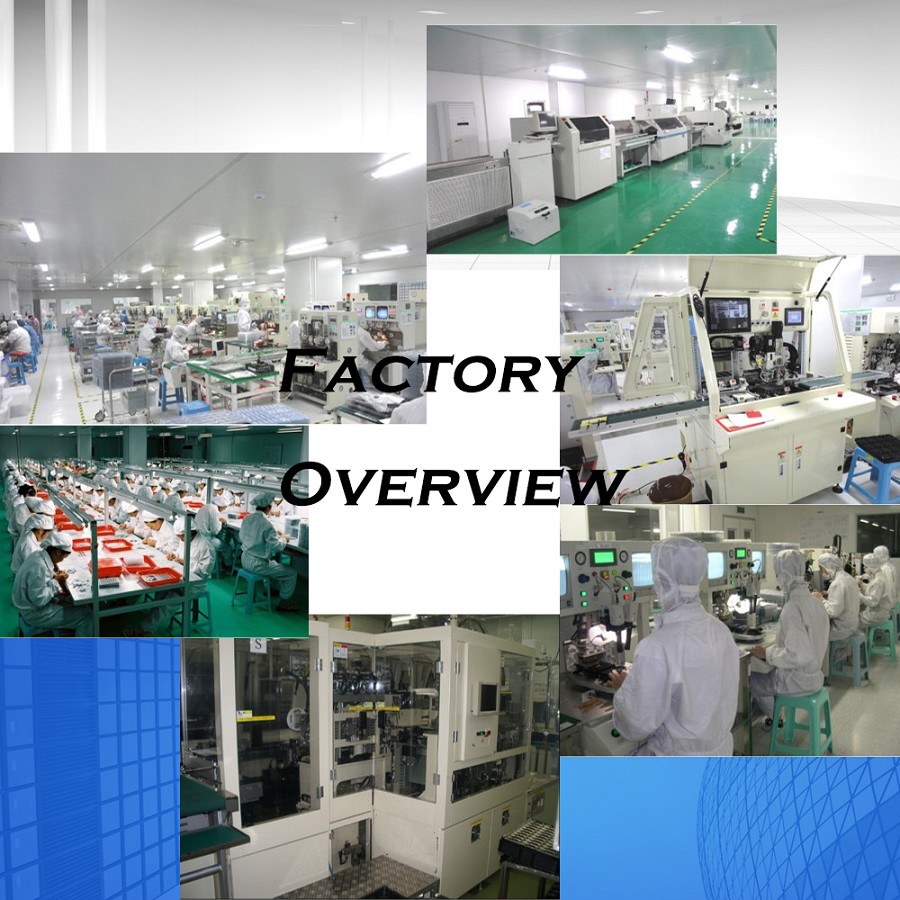

Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.


Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
