Pouch Cell Heat Hot Top Side Sealer Sealing Machine for Pouch Cell Preparation

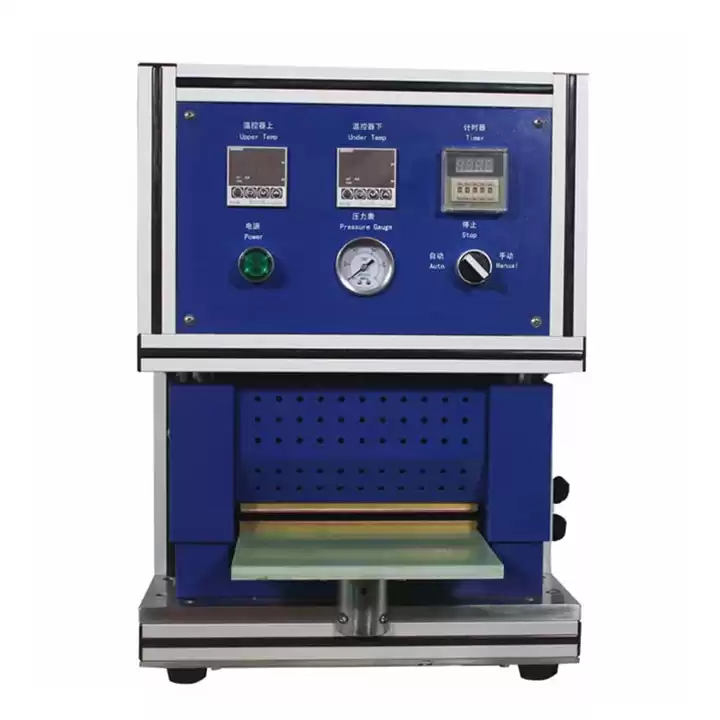

TMAX-SFZ200 is a CE Certified compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.

It can prepare the pouch cell for the injection of an electrolyte by sealing the side and top of the pouch cell with the tab.


Sealing Width

5mm (Can be customized up to 3 - 10mm upon request)

Seal Thickness

0.15 - 0.3 mm

Sealing Pressure

0 - 0.7 Mpa (0 - 99 psi) adjustable

Sealing Temperature

0 - 250 °C adjustable with controlling accuracy +/-2 °C

Air Consumption

0.09 L / Sealing

Heating Timer

0 - 99 Seconds Adjustable

Warranty

One Year limited warranty with lifetime support

Die Opening

25mm *(140mm back clearance)

Color

Customer's Request

Product Keywords

heat sealers for Aluminiun-Laminated Film,heat sealer machine,heat sealer lithium ion

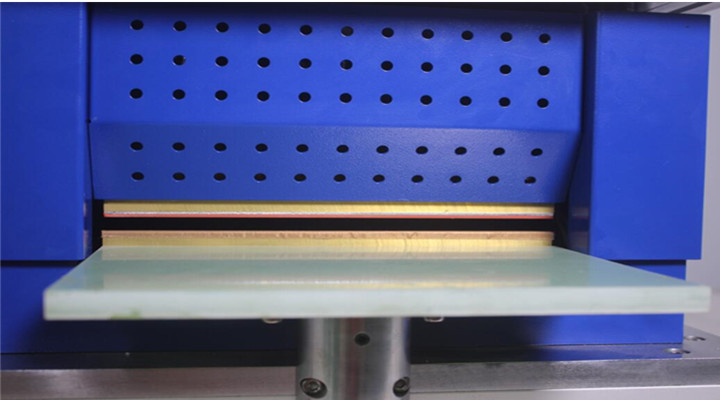

Sealing Blade Type

Soft sealing blade (blade with rubber, good for Al case sealing and case with tab in between)

Net Weight

35kg

Application Notes

Suggested Sealing Parameter:

Upper Heating Blade Temperature: 200°C

Lower Heating Blade Temperature: 180°

Pressure: 40 ps

Duration: 3 seconds

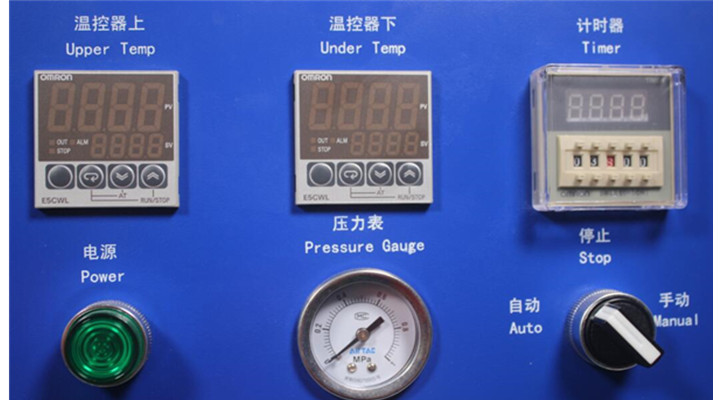

Please wait until both dies reached the Setting temperature and controller disable the Low temp. ALM, then begin to operate.

Note

For completing the full sealing procedure, you may need the following  combination:

a.Compact Heating Sealer(suitable for top&side sealing with tab)

b.Vacuum Sealing Machine(for pre-sealing in glove box after injection of electrolyte)


c.Final Vacuum Sealing Machine

(for  vacuuming and second sealing with automatic puncture and degassing function)


 If you don't want to spend too much budget on the sealing part,

machine a plus b can also meet your basic sealing need

Recommendation

For the pouch cell assembly, we also recommend you the following items:

 Forming machine    Ultrasonic tab welder      Stacking machine      Die Cutter
