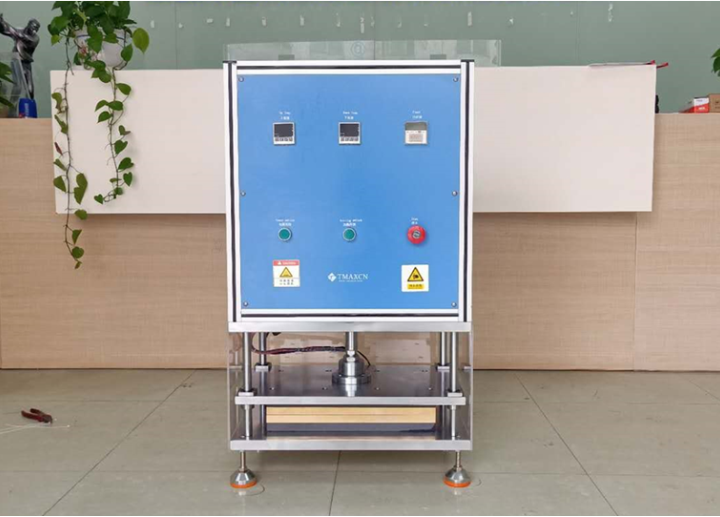

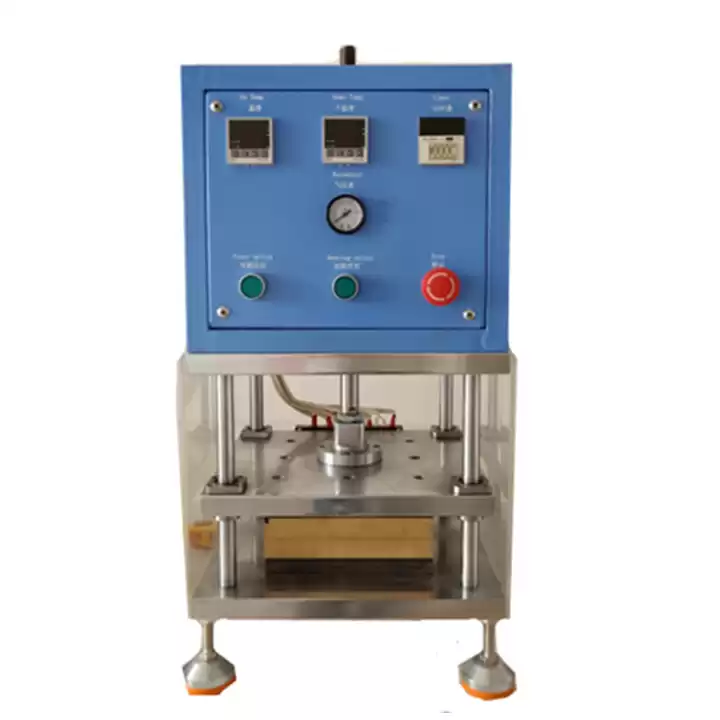

Pouch Cell Hot/Cold Press Machine For Pouch Battery Research
Suitable for hot pressing and cold pressing of lithium battery pouch cell core
Technical Parameter
|
Working speed
|
500 times /H
|
|
Pressure range
|
0 ~ 500kg adjustable(can be customized up to 3ton)
|
|
Effective pressing area
|
200*200mm(the pressing area size can be customized)
|
|
Parallelism of upper and lower hot platens
|
<0.05mm
|
|
Safety protection
|
Emergency stop switch, safe operation
|
|
Cylinder
|
SNS cylinder device, adjustable cylinder stroke
|
|
heating
|
The hot pressing upper and lower dies are provided with heating device, and the hot pressing temperature is adjustable at + 20 ~ 150β
(can be customized up to 200β)
|
