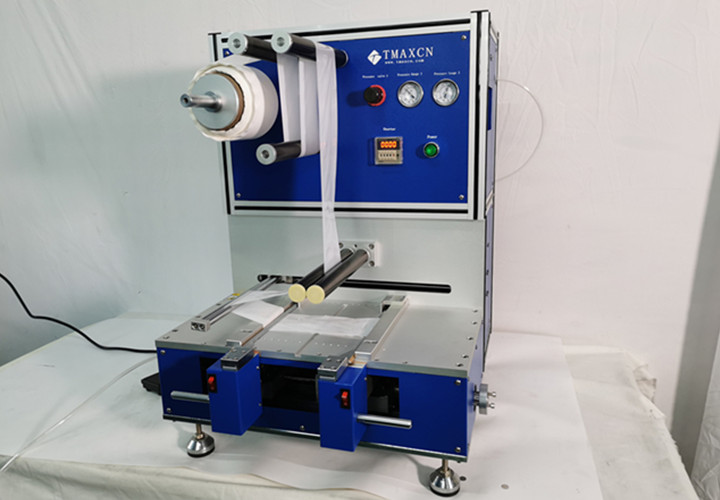

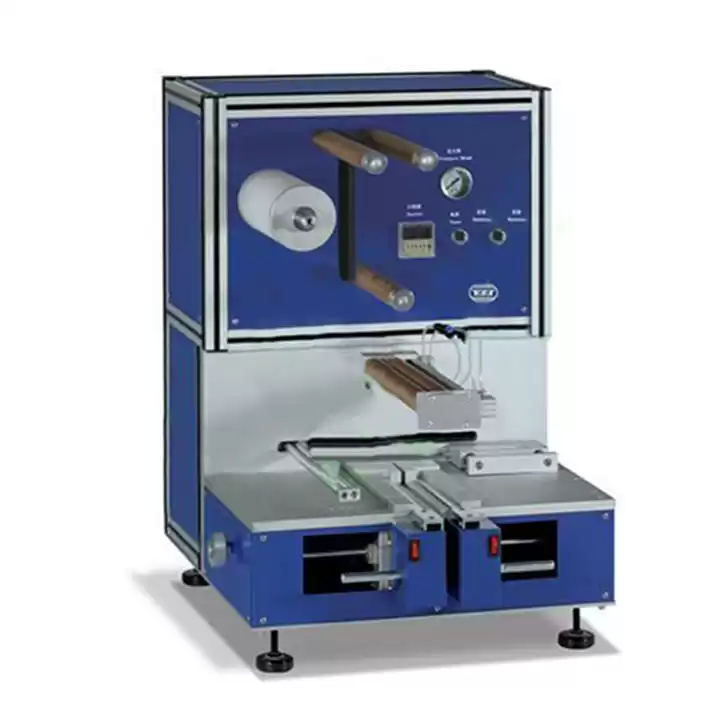

Semi-Auto Pouch Cell Stacking Machine Stacker



TMAX-TCH-DPA is a desktop semi-auto stacking machine with advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the separator film in between. It is more precise and consistent.



*The adjustment, operation and maintenance of the machine are simple and easy;

*It can be used in a wide range of laminations;

*Semi automatic lamination and balance tension control system

*Automatic counting and zeroing function

*Automatically maintain the last parameter state function after power failure and non use

*The whole machine is suitable for a wide range of battery sizes

*Use foot switch to control cylinder action

*The adjustment, operation and maintenance of the machine are simple and easy

*High efficiency with digital timer

*Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance;

Working Voltage

AC220V/110V 50/60Hz

Power

200W

Applicable electrode size

200mm x 150mm Max.

44mm x 44mm Min.

Customizable as customer's request

Max. battery core thickness

Piled up thickness <12mm

Aligning accuracy

±0.5mm

Acceptable separator roll size

220mm O.D Max.

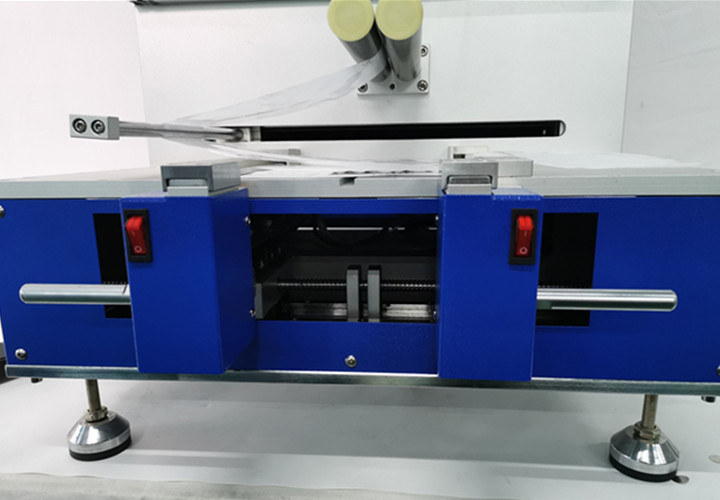

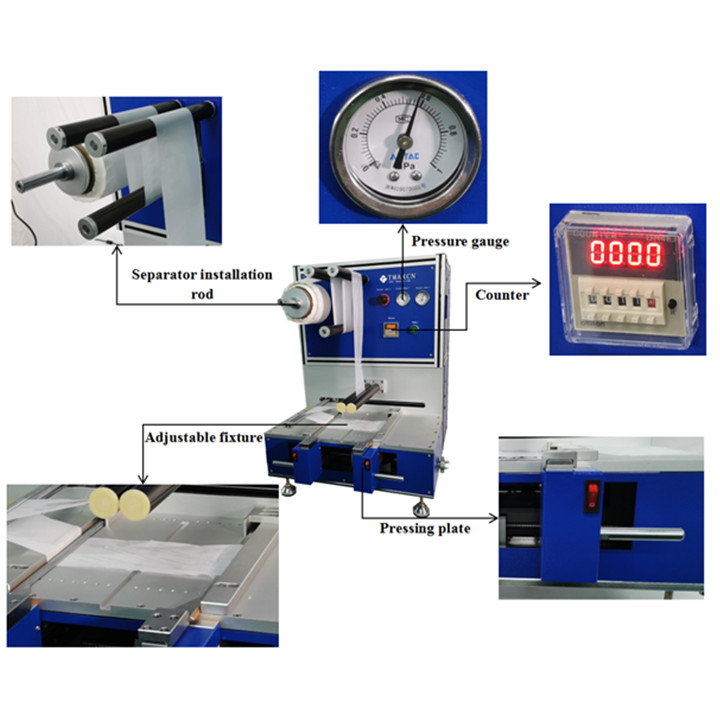

Slidable fixture

Two slidable fixtures ensure a compact, tight electrode stacking

Electrode tongs

One electrode tongs are included for easy electrode pick-up

Suggested Air Pressure

0.4~0.6MPa (Air compressor is not included in the standard package)

Product Dimensions

480mm(L) x 560mm(W) x 650mm(H)

Net Weight

55Kg

Compliance

CE Certified

Warranty

Two Years limited warranty with lifetime support


battery stacking machine

battery stacking machine

battery stacking machine

Pouch cell assembly
