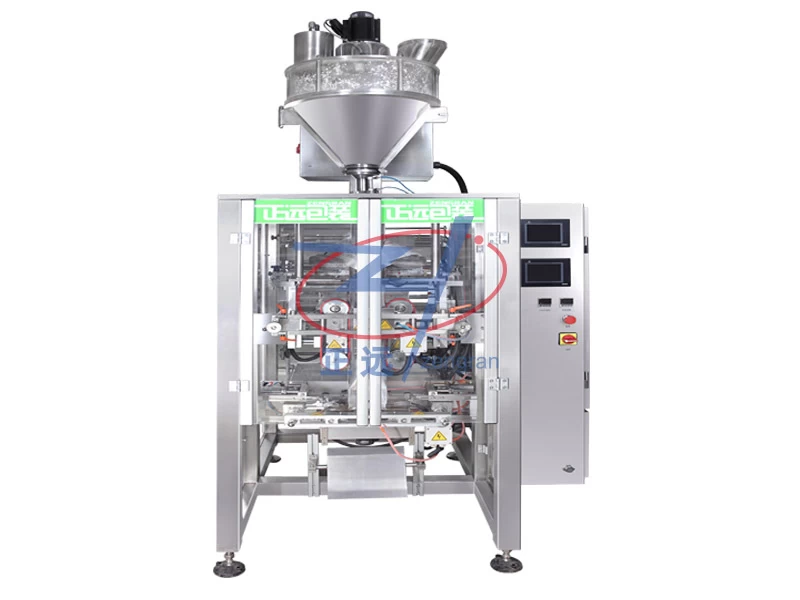

POWDER PACKAGING MACHINE UNIT

This powder packaging machine unit integrates the functions of bag-making, filling, sealing, printing, punching and counting.



POWDER PACKAGING UNIT


Technical features:


This powder packaging machine unit integrates the functions of bag-making, filling, sealing, printing, punching and counting.

Adopts servo motor for film pulling with automatic offset correction. Two types of drive, i.e. cylinder and servo can be adopted for transverse sealing (for convenient selection by the customer under different operating condition); there are two types of longitudinal sealing mechanism, i.e. center sealing type and platen press type (the user can choose according to specific material and the film roll).

The machine has good sealing performance and can meet customer’s hygienic requirements.

All the electrical components and control components adopt local and foreign well-known brands with reliable performance; man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.



Application:

  • Liquid: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. Thick liquid: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.

  • Solid: candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.

  • Granule: grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.

  •  Powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.




powder packaging machine unit

Technicial form:


Model

320

5000D

5000B

6200B

7300B

Bag Length(mm)

80-180

80-300

80-400

100-400

100-400

Bag Width(mm)

45-150

50-200

80-250

150-300

180-350

Max Width of Roll(mm)

320

420

520

620

720

Packing Speed(bags/min)

40-90

5-80

5-70

5-65

5-10

Air Consumption(Mpa)

0.65

0.65

0.65

0.65

0.65

Gas Consumption(m3/min)

0.3

0.3

0.4

0.4

0.4

Power Voltage (v)

220v

220V

220v

220v

220v

Power (kw)

3kw

2.2KW

4kw

4kw

5kw

Demension(cm)

122*90*175

132*95*136

115*179.5*165

165*125*2000

178*134*210

Weight(kg)

350

540

600

 800

900
