Power Factor Correction Regulation SVG

Based on the principle of voltage source inverter, YTPQC-SVG Static Var Generator uses insulated gate bipolar transistor (IGBT) to control the magnitude and phase of inverter AC voltage, so as to achieve the purpose of reactive power compensation and 3 phase load balancing . Because the switching frequency of IGBT is very high (up to 25.6kHz), SVG can compensate rapid reactive loads and achieve quite high compensation accuracy. SVG is the best product in the field of reactive power control.

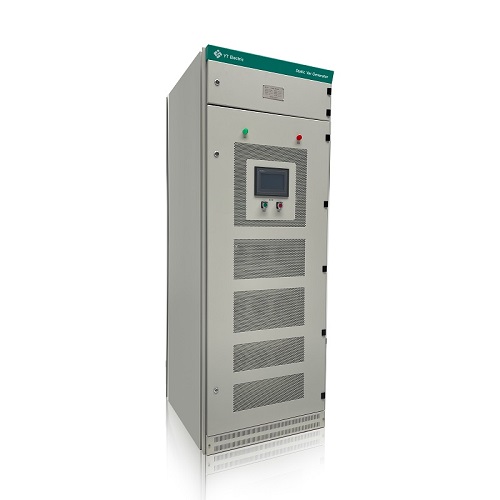

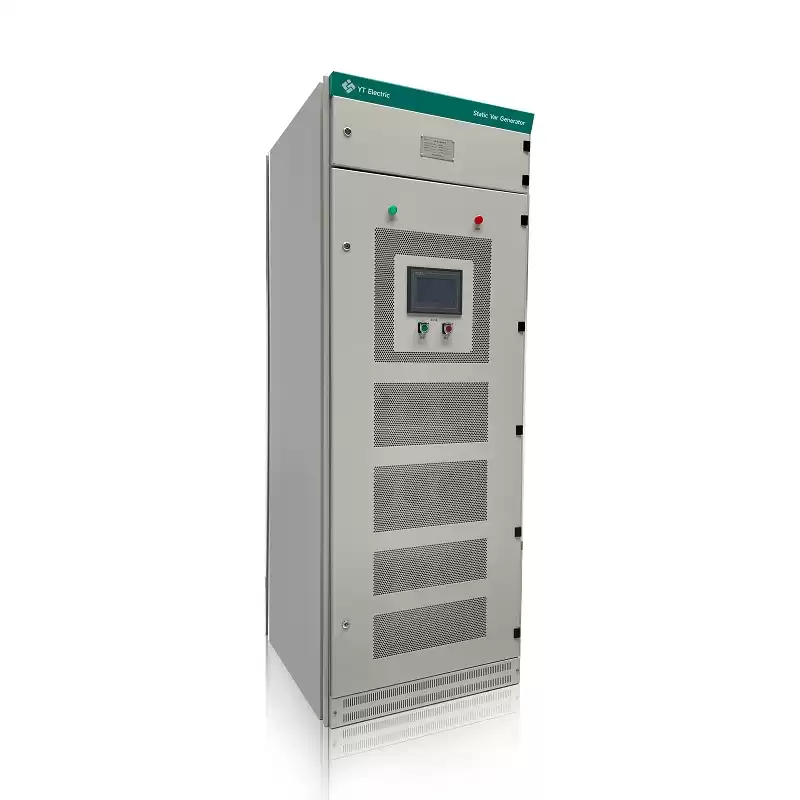

YT-PQC-SVG Static Var Generator

YTPQC-SVG Static Var Generator detects load current in real time through internal and external CT and analyzes the reactive current of load by TI DSP and FPGA, then generates PWM signal to IGBT inverter(3 Level) to generate inductive or capacitive current and compensate reactive current to realize the target power factor. YTPQC SVG can also compensate phase imbalance.
Compared with the traditional capacitor bank, YTPQC-SVG has the advantages of fast response and high compensation accuracy without under-compensation or over-compensation problems, avoid resonance,etc.

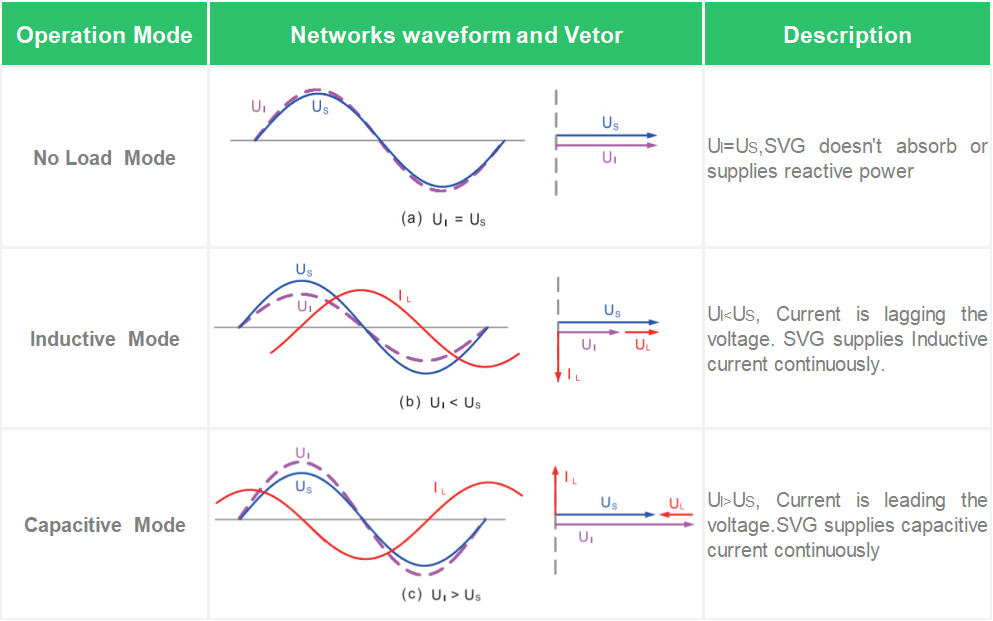

How SVG work



Modular Design

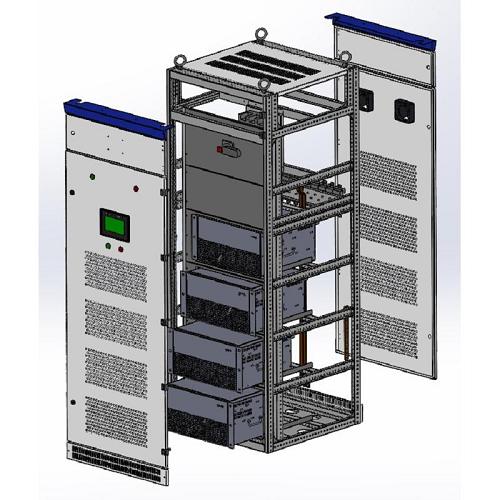

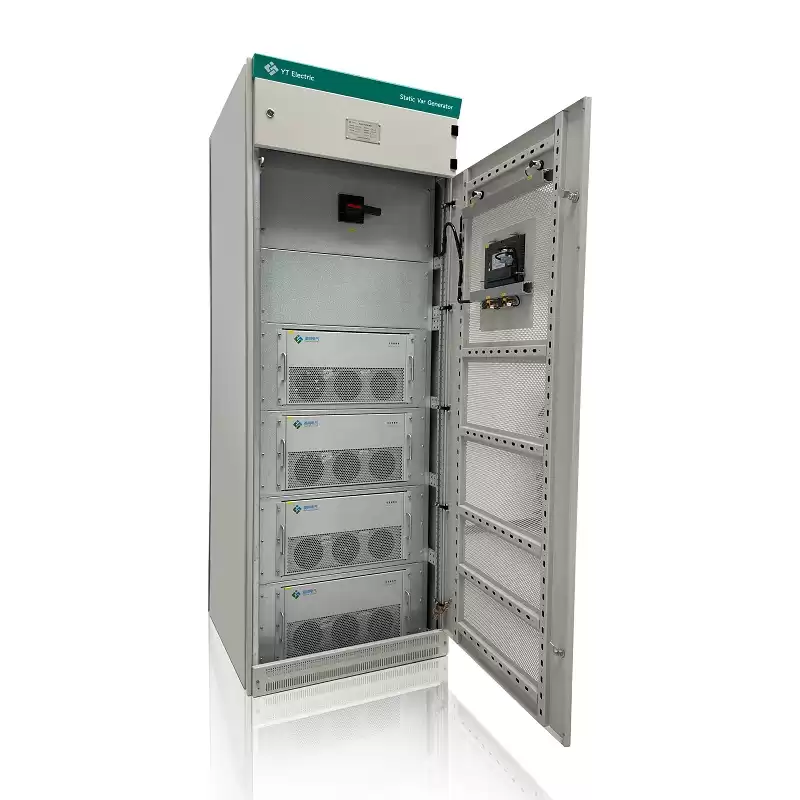

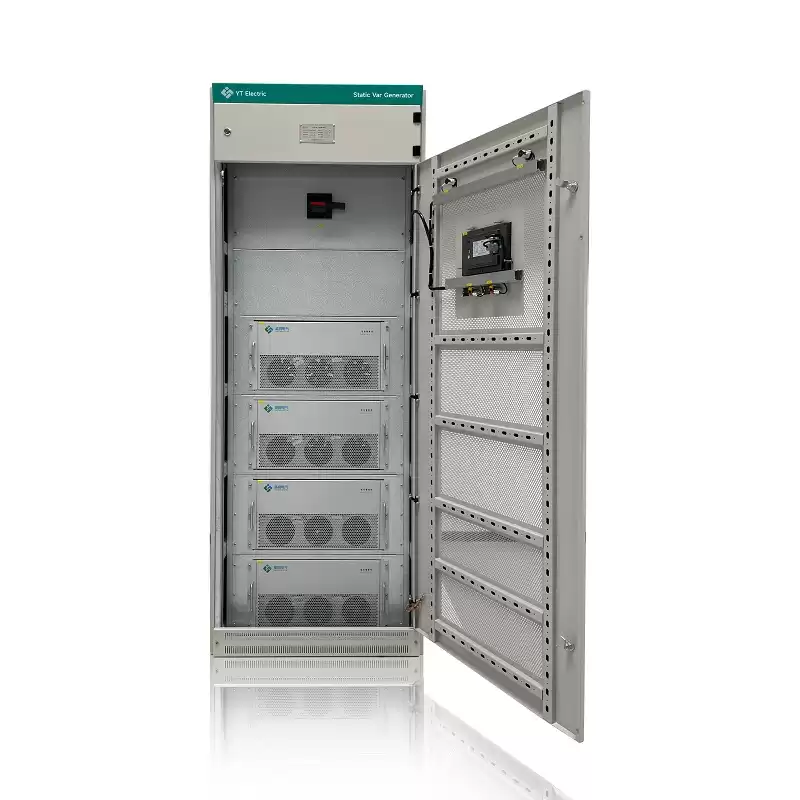

YTPQC Static Var Generator has a advanced modular design. Usually YTPQC-SVG consists of one or several SVG modules and an optional touched LCD Human Machine Interface. Each Static Var Generator module is an independent  and dynamic reactive power compensation system, and users can change the SVG rating by adding or removing  SVG modules.

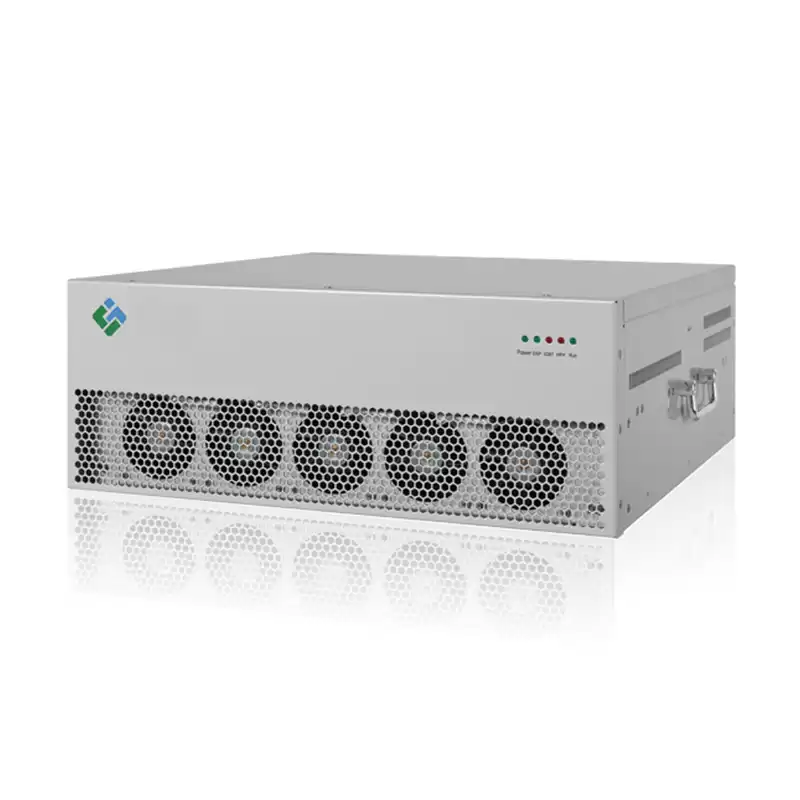

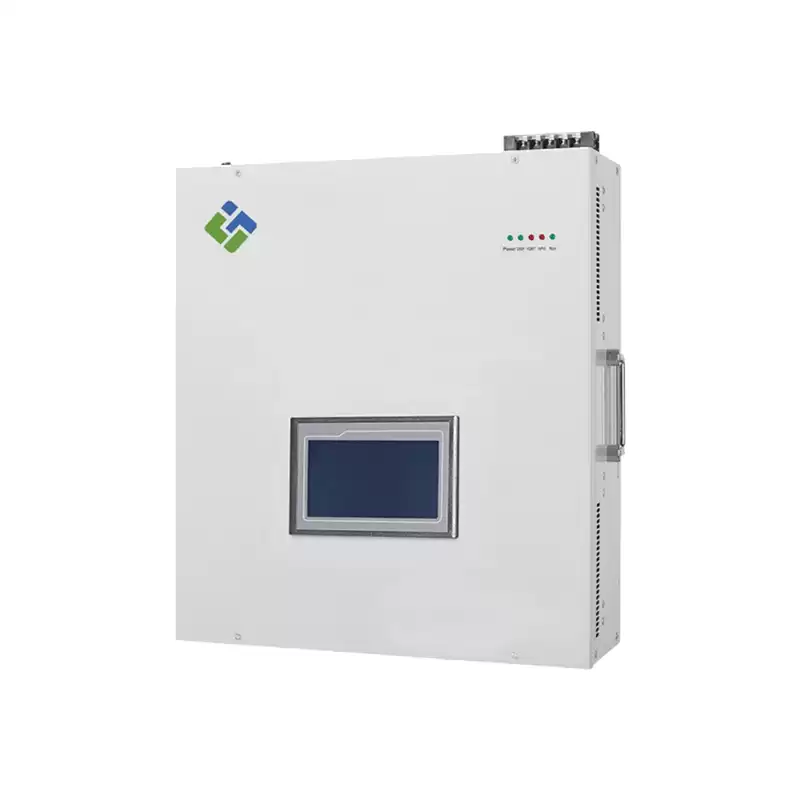

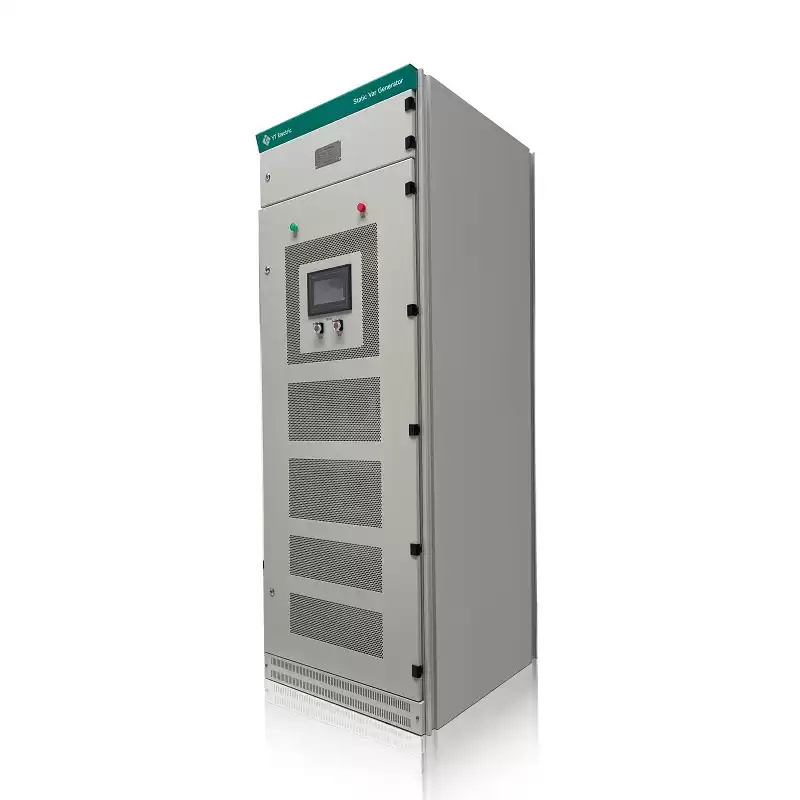

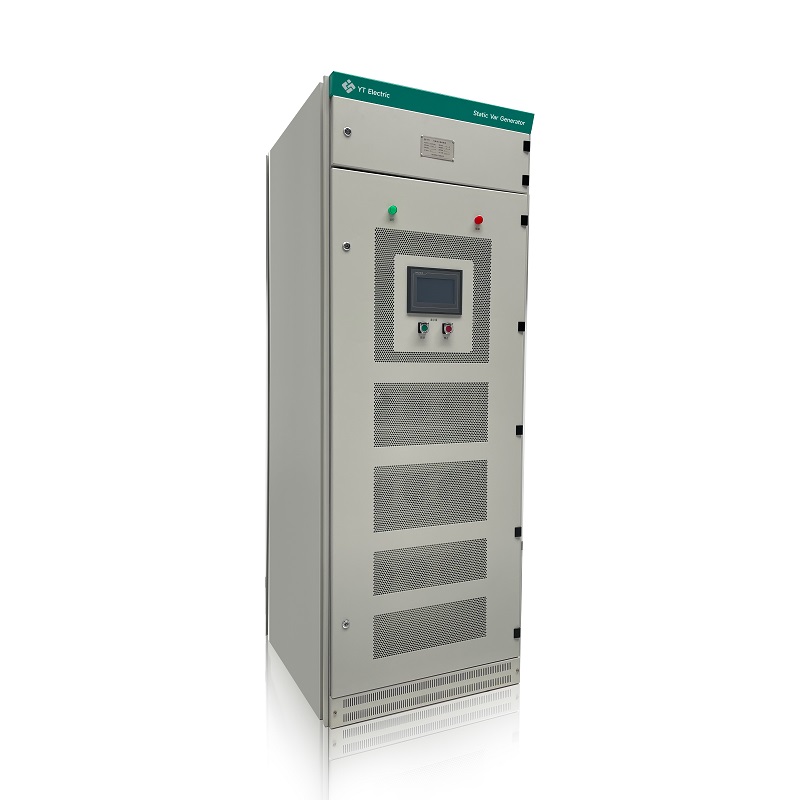

 According to the mounting type, YTPQC Static Var Generator can  be divided into Rack Modular SVG,Wall-mounted SVG and free landing SVG.





Model Description

YTPQC-SVG Static Var Generator Panel series cover from 10kVAr to 100kVAr, support wall mounted type, rack type, free landing modules.

SN Item

Rated Capacity

Factory Model

Dimensions

(W*D*H,MM)

N.W.

(KG)

Packing Size

(W*D*H,MM)

G.W.

(KG)

1 SVG 100kVAr YTPQC-SVG/100-4-4L-RW 800*800*2200 340 950*950*2450 380
2 SVG 150kVAr YTPQC-SVG/150-4-4L-RW 800*800*2200 370 950*950*2450 410
3 SVG 200kVAr YTPQC-SVG/200-4-4L-RW 800*800*2200 375 950*950*2450 415
4 SVG 250kVAr YTPQC-SVG/250-4-4L-RW 800*800*2200 420 950*950*2450 460
5 SVG 300kVAr YTPQC-SVG/300-4-4L-RW 800*800*2200 440 950*950*2450 480
6 SVG 400kVAr YTPQC-SVG/400-4-4L-RW 800*800*2200 490 950*950*2450 530
7 SVG 500kVAr YTPQC-SVG/500-4-4L-RW 1000*1000*2400 550 1150*1150*2450 590
