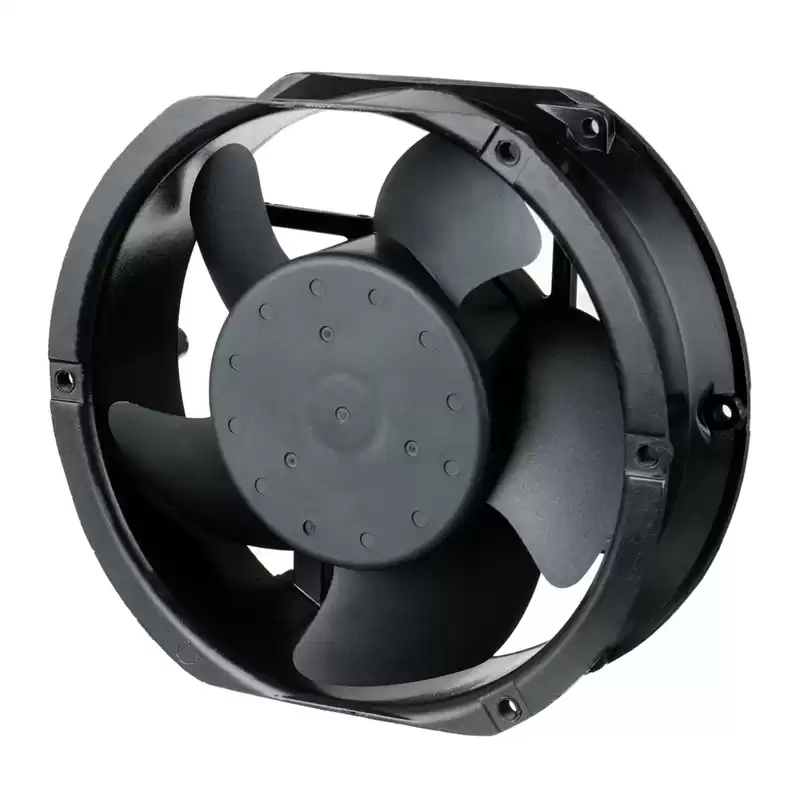

Powerful Ventilation System 2500rpm Axial Radiator Fan

The standard AC fan is energy efficient can be connected directly to a DC power source. Size of this fan is 172mm x 150mm x 51mm, as the big size , it can offer you 187.93 CFM big airfllow.

Facebook Twitter Pinterest LinkedIn 分享

Description

Industrial 220V Silent Ventilation System Fan for Cooler. The exhaust fan is made of high-quality metal material, is not easy to deform and break, long service life.

About this item

Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

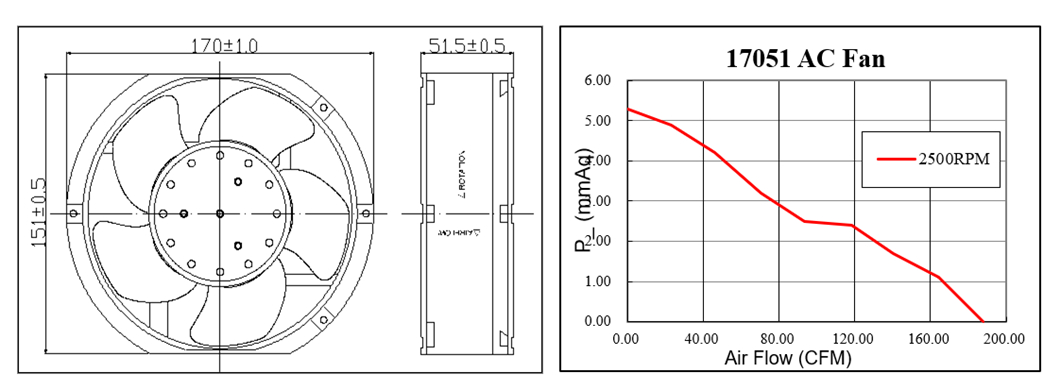

Dimension of outer the frame is 170 mm(L) x 150 mm(W) x 51 mm(H) / The size of fan in inch is 6.69 in(L) x 5.90 in(W) x 2.0 in(H); The center to center distance beween the mountiong holes is 170.0 ± 1.0 mm / 6.69 in.

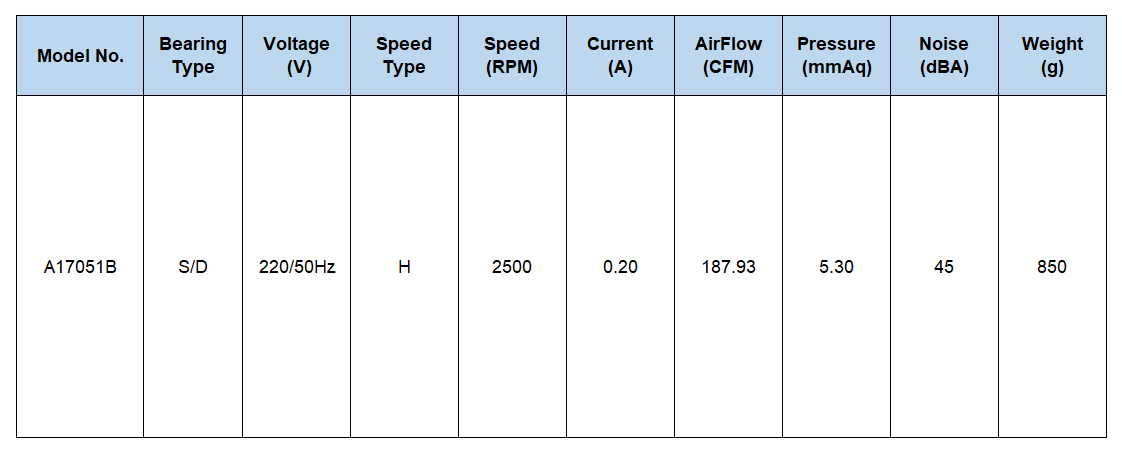

Operating Voltage Range: AC 220/50Hz | Current: 0.20 Amp | Speed: 2500 RPM | Airflow: 187.93 CFM | Noise: 45 dBA | Pressure: 5.30 mmAq.
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

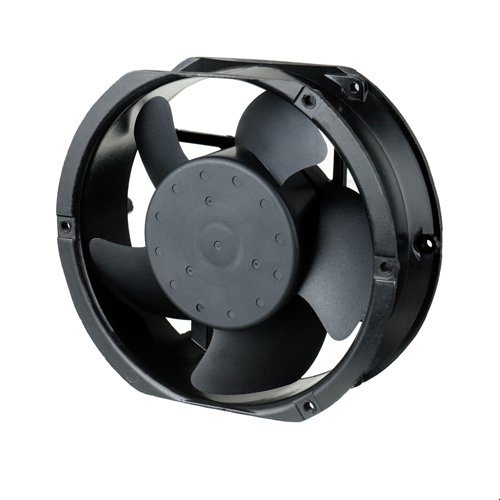

AC AXIAL FAN 170x150x51mm(6.69"x5.90"x2.0")

Waterproof AC Axial Cooling Fan

General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

2500rpm industrial exhaust cooling fan

brushless motor ac cooling fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

2500RPM high speed, it can offer 77.49 CFM big airfllow;
Parameters can be customized to meet customer needs;
Greatly reduce the operating noise and improve efficiency;
Unique farm design, made of aluminum ally, not easy to deform and break;
Each item will be tested carefully and packed tightly before shipping out; certified by CE, UL, and RoHS.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type	Model	Size	Type	Model	Size
AC Axial Fan	A08025	80x80x25mm(3.15"x3.15"x0.98")	AC Axial Fan	A13538	135x135x38mm(5.31"x5.31"x1.49")
	A09225	92x92x25mm(3.62"x3.62"x0.98")		A15050	150x150x50mm(5.90"x5.90"x1.97")
	A11025	110x110x25mm(4.33"x4.33"x0.98")		A17051A	170x150x51mm(6.69"x5.90"x2.0")
	A12025A	120x120x25mm(4.72"x4.72"x0.98")		A17051B	170x150x51mm(6.69"x5.90"x2.0")
	A12025B	120x120x25mm(4.72"x4.72"x0.98")		A18060	180x180x60mm(7.08"x7.08"x2.36")
	A12038A	120x120x38mm(4.72"x4.72"x1.49")		A20060	200x200x60mm(7.87"x7.87"x2.36")
	A12038B	120x120x38mm(4.72"x4.72"x1.49")		A22060	220x220x60mm(8.65"x8.65"x2.36")

Application

Widely used in communication equipment, power supply, frequency converter, instrumentation, medical equipment, audio equipment, welding machine, freezer, computer and its peripheral equipment, such as heat dissipation and refrigeration

High Performance AC Cooling Fan

AC Cooling Fan for Power Supply

Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
