Rechargeable lithium metal battery (Lithium-ion battery), a rechargeable battery in which lithium ions move from the negative electrode to the positive electrode during discharge and back when charging. United Energy's lithium batteries have 2 different installation types, one is a wall mount lithium battery, and the other is a rack mount lithium battery.

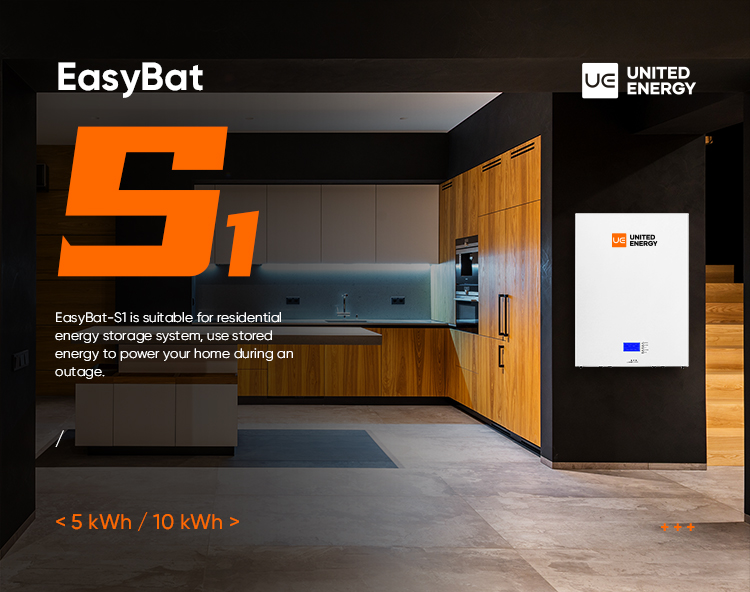

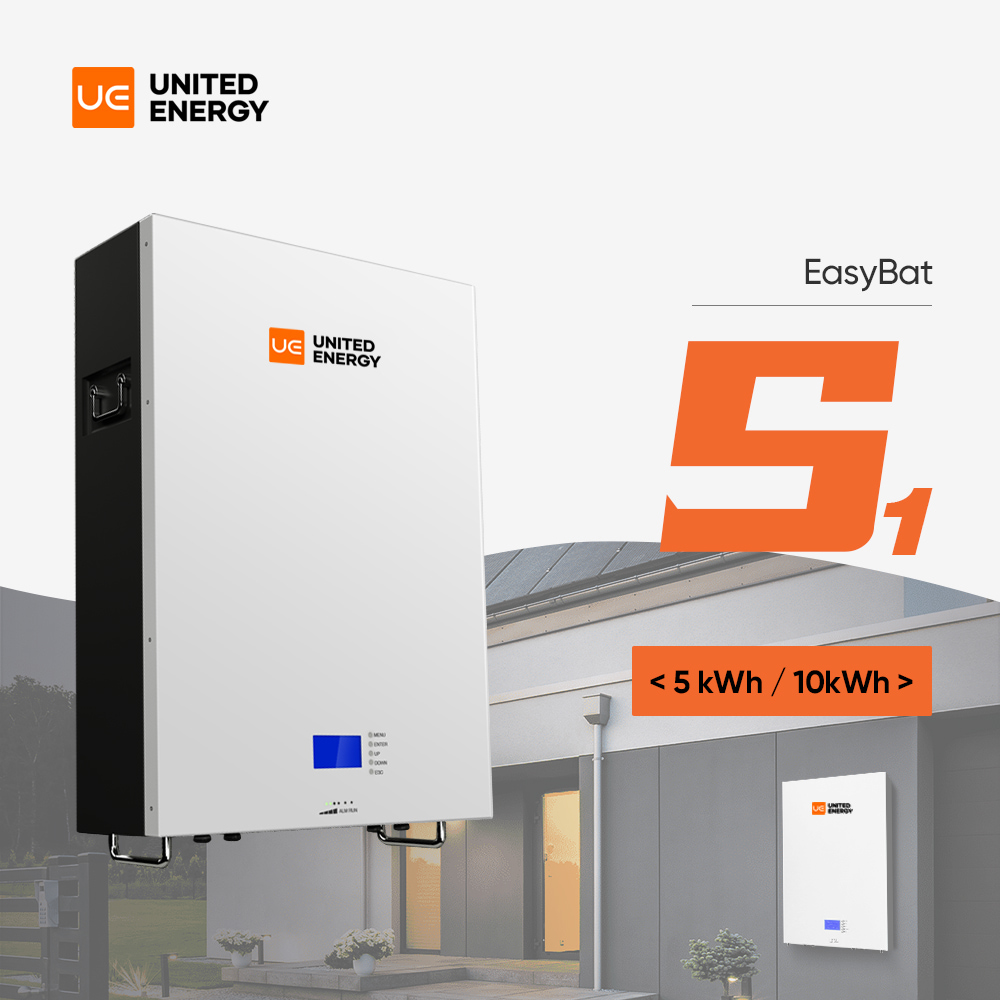

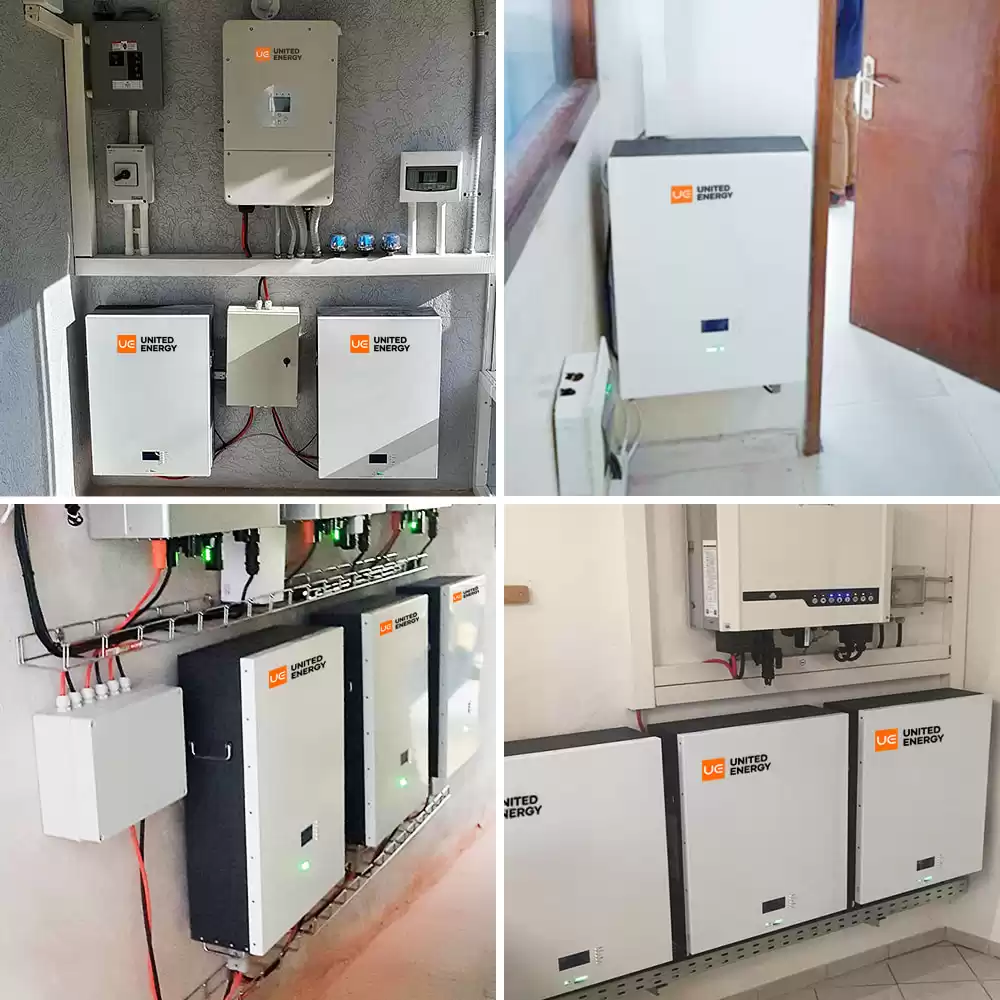

S1 series is one of the most welcomed module 48v wall mount lithium battery, 5kwh and 10kwh each single module.
Battery Specification:
| Model |
UE-S1-5kWh |
UE-S1-10kWh |
| Nominal Voltage |
48V |
| Rated Capacity |
100AH |
200AH |
| Battery Cell |
3.2V 100Ah Prismatic Battery Cell |

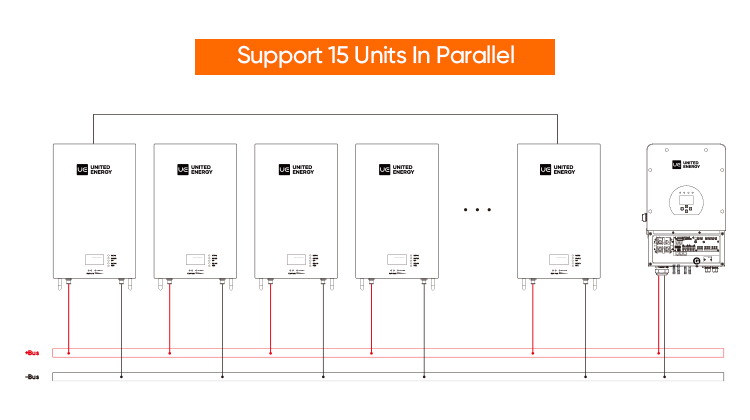

| Parallel Capacity |
Yes,15units maximum |
| Max Charging Current |
100A |
| Max Discharging current |
100A |
| Discharge Voltage Range |
41-54.5V |
| Charge Voltage Range |
53.5-54.5V |
| Design Life |
15+ Years(25°C/77°F) |
| Cycle Life |
＞6000 Cycles,25°C |
| Communication Port |
CAN,RS485,RS232 |

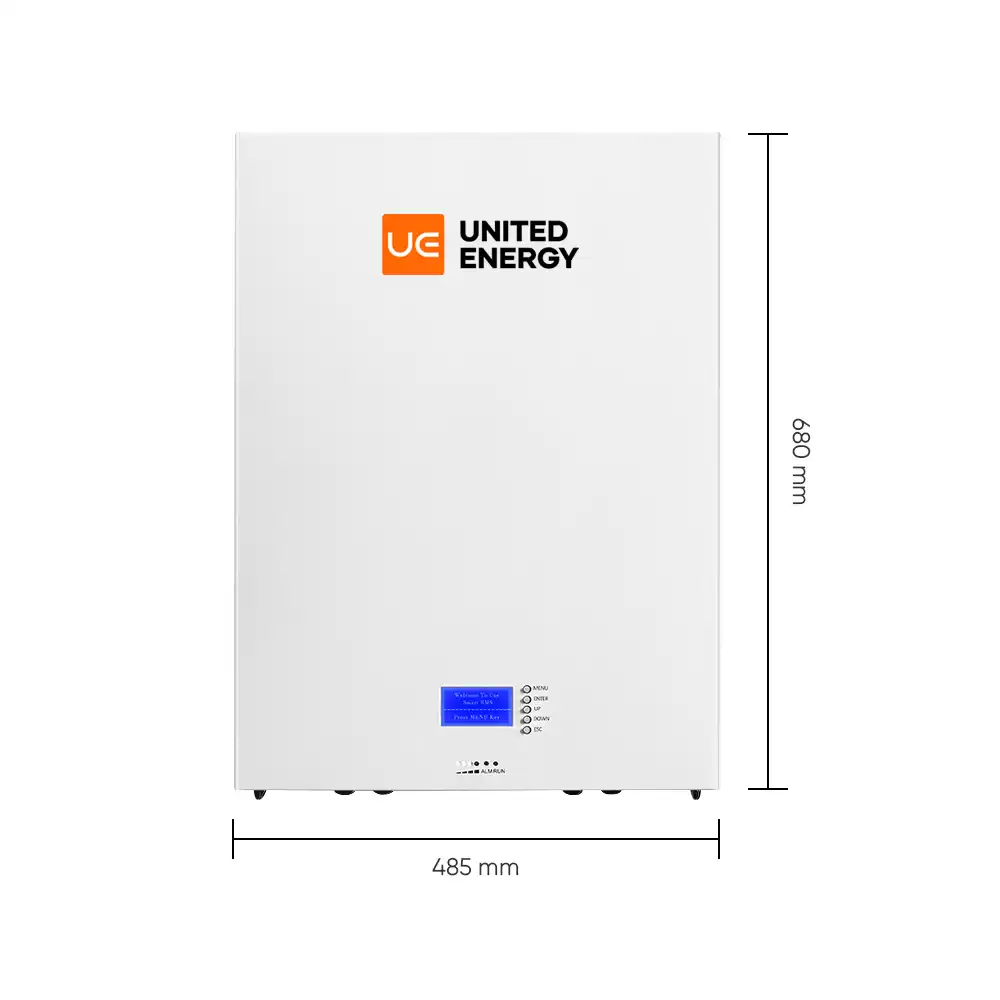

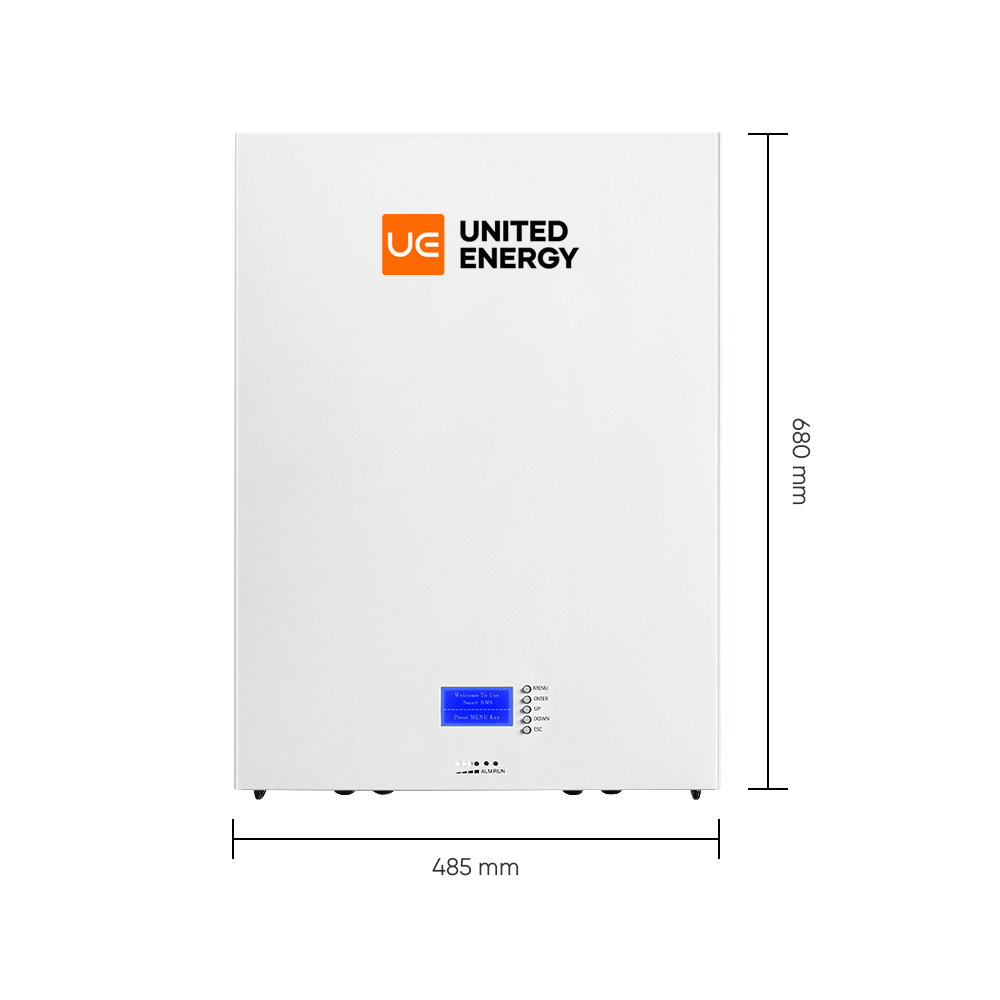

| Size(L*W*H) |
680*485*220mm |
| Weight |
68Kg±1Kg |
98Kg±1Kg |
| Working Temperature |
-10~50℃ |
| Shelf Temperature |
-20~50℃ |
| Humidity |
5%~95% |
| Lithium BatteryStandard |
UL1642/IEC62619/UN38.3/ROHS/CE-EMC |

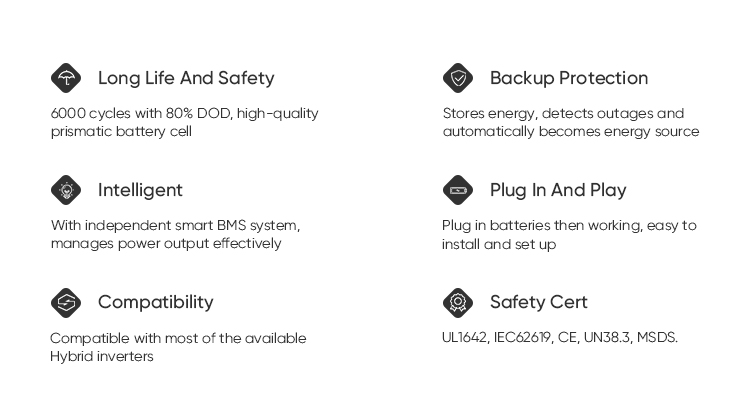

Product Advantage:
1, Full set of International Certifications, lifepo 4 lithium battery with CE, TUV UL approved, quality are guaranteed;
2, High Safety: Overvoltage protection; Overcurrent protection; Temperature protection;Short-circuit protection;
3, Higher stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
4, Long service life：15+ years designed lifespan, up to 6000 cycles.
Advantage comparing with Lead Acid Battery?
Compared to lead-acid and lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power.
LiFePO4 batteries often come with a higher price tag, but a much better cost over the life of the product. No maintenance and super long life make them a worthwhile investment and a smart long-term solution.
