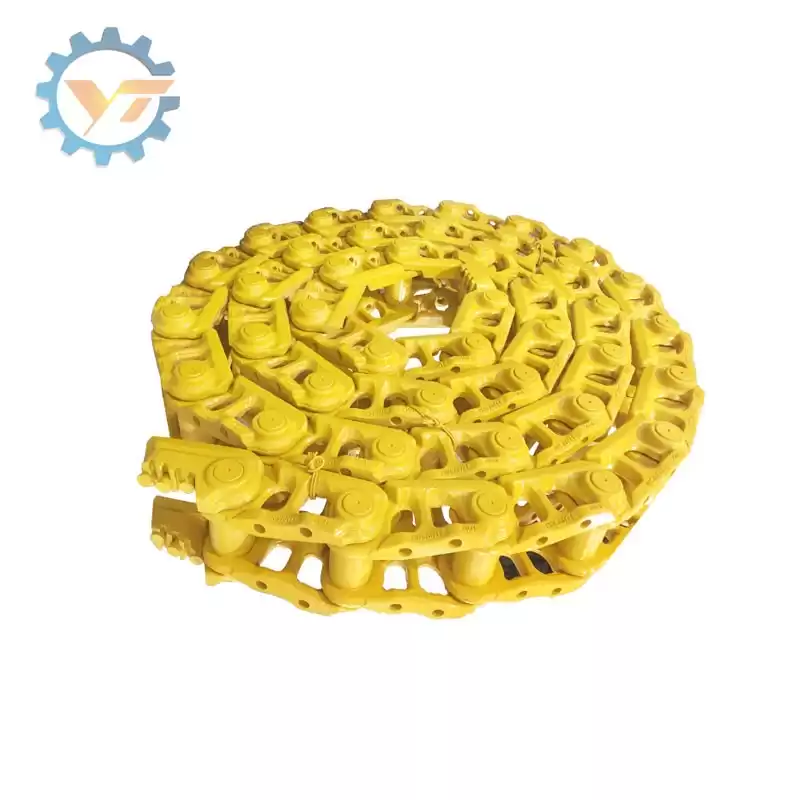

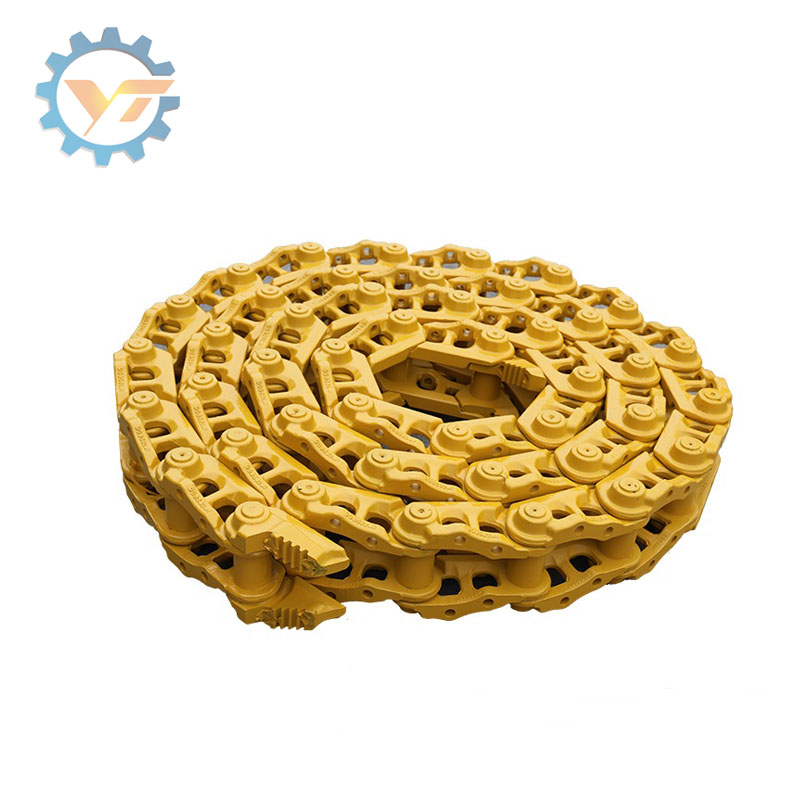

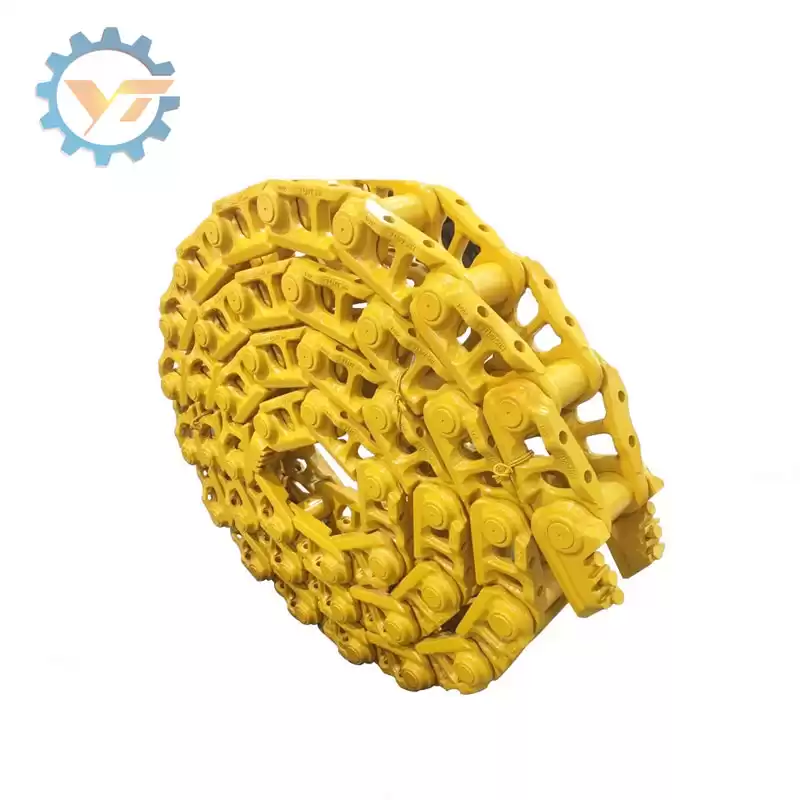

Caterpillar PPR Track Link Master Link Lubricated Track Chain for Tractors
1. Description
Standard on D9T, D10T, D11T* and optional on D8T Elevated Sprocket Tractors, PPR helps maximize undercarriage wear life and minimize your owning and operating costs. It's designed for high-impact and high-loading applications, such as mining, demolition, heavy constructionans waste disposal.
2. Our PPR Advantages
-
Professional mesh belt furnace heat treatment makes our products have good combination mechanical properties.
-
-
Ensures seal-to-bushing face contact and oil retention on sealed and lubricated track.
-
-
Prevents end-play generation (the outward movement of the links on the pin).
-
-
Increases joint sealability in applications where end-play growth can exceed the capacity of the seal.
-
-
Strict detecting system and advanced inspection equipment.
-
-
Professional sales team, quality inspection & report, maritime logistics guidance.
-
3. Basic Parameters
|
Material
|
|
35MnBH
|
|
Technique
|
|
Forging
|
|
|
Quality
|
|
HRC40-55
|
|
Warranty Time
|
|
18-24 months
|
|
|
Color
|
|
Yellow or Customized
|
|
Application
|
|
BulldozerTractor
|
|
4. Manufacturig Processes
5. PPR Track Link Structure

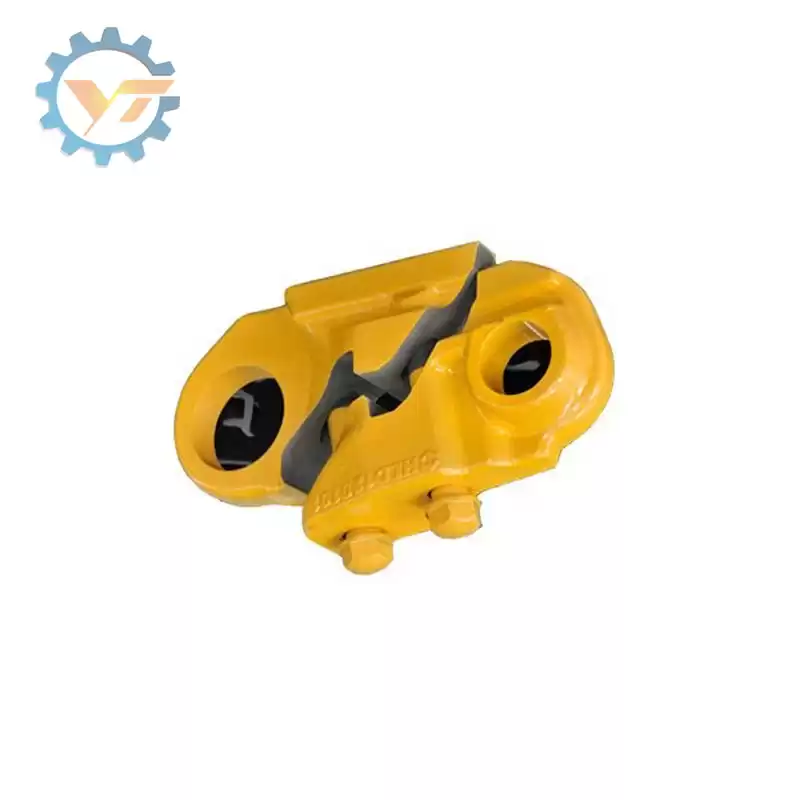

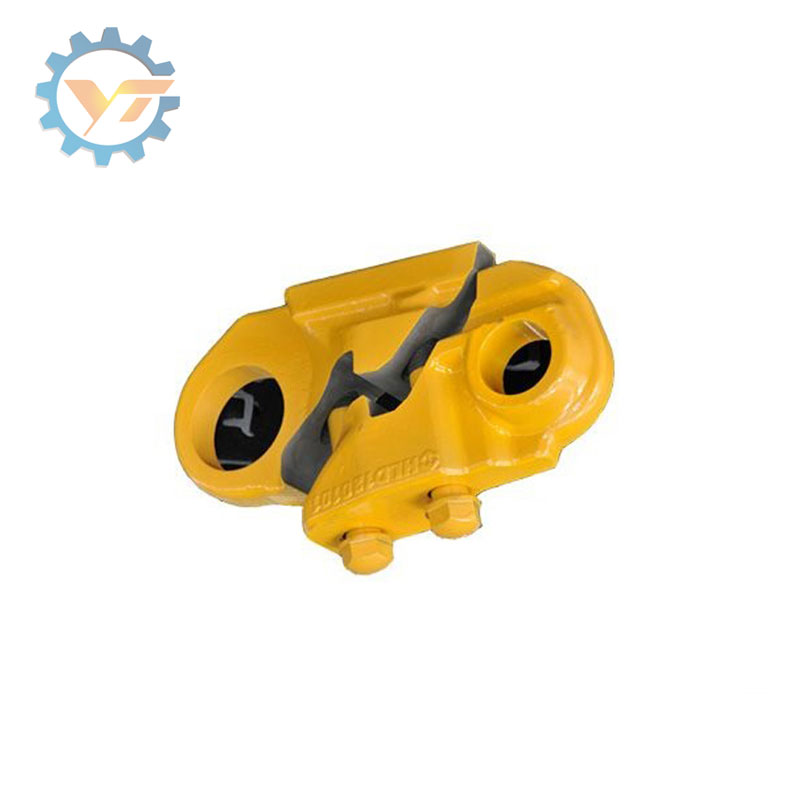

Positive Pin Retention Track features an exclusive design that resists link end play, increases sealability, and maximizes track life, specially machined links and pins that allow for the use of a metal retaining ring. This ring is pressed into the groove between the pin and link, locking the joint to a predetermined factory end-play specification. This design is recommended for mining, heavy construction, demolition, and waste disposal applications conditions that generate high loading and impact, twist the track chain, and cause end play. Machines equipped with wider shoes, extreme service shoes, or super extreme service shoes should also consider PPR Track.
6. Dimensions of Dozer Link
Main Parameters
|
Suitable Models
|
Main Dimensions of Installation
| |
