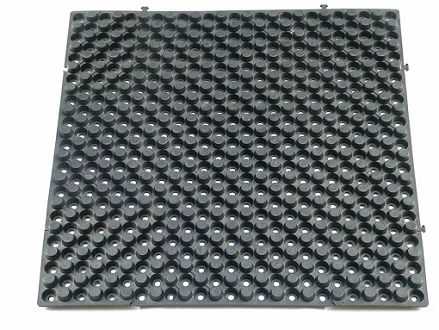

Practical Waterproof HDPE Plastic Drainage Sheet

The long-term pressure resistance of HDPE Plastic Drainage Sheet not only resist weight of concrete bottom plate and its load, but also can bear the unavoidable outside pressure and impact force during drainage construction.


  • MaterialHDPE
  • ColorDark Green
  • Size500x500x25mm
  • Total Volume0.06m3/bundle
  • Press Strength734KN

Practical Waterproof HDPE Plastic Drainage Sheet Specifications:

 Item No.  MP-S25A  MP-S25B  MP-S25C
 Color  Light green  Dark green  Black
 Size(mm)  333x333x25  333x333x25  333x333x25
 Unit weight(g/m2)  3150g/m2  3150g/m2  3150g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  1000KN  835KN  734KN
 Hardness  135  113  92
 Water Drainage  95%  95%  95%
 Vertical Circulating Capacity(cm3/s)  30cm3/S  30cm3/S  30cm3/S
 Loading Capacity

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

 1100SQM=1x20FT CONTAINER

 2233SQM=1x40FT CONTAINER

 2533SQM=1x40FT CONTAINER

1100SQM=1x20FT CONTAINER

2233SQM=1x40FT CONTAINER

2533SQM=1x40FT CONTAINER

 Package  18pcs/bundle, 0.06m3/bundle  18pcs/bundle, 0.06m3/bundle  18pcs/bundle, 0.06m3/bundle
 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER



HDPE Plastic Drainage Sheet to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Plastic Drainage Sheet and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Plastic Drainage Sheet light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape



Features and Benefits:

  • Lightweight
  • High compression strength
  • Seepage proof
  • Available in different sizes
  • Cost save
  • Water drainage and storage
  • Easy installation
  • No surface drains required
  • Reduces surface temperature around building
  • High load bearing 148.58t/m2 unconfined
  • Replenishes water supply to landscaped areas
  • Unique and easy to use interlocking system
  • Promotes fast and excellent plant growth
  • Strong structure can support heavy loads
  • Retains a minimum of approximately 76L/m2 of perched water above the cells



HDPE Drainage Sheet Application:

Roof greening

Bridge abutments

Underground

Road

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Fire lanes

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields



Plastic Drainage Sheet Construction:


Projects View:


Leiyuan Strength drainage cell panel: Good water feature, Long life service!
