HCET-A temperature switch for batteries,battery packs and circuit boards
HCET-A/TB02 series is a precise temperature protector with small size. HCET-A bimetal thermal switch is sensitive, accurate and reliable, especially suitable for battery protection boards,temperature sensing cables,PC circuit boards and so on.
Features
Small size.
Installation is more flexible and convenient.
Snap action.
Nickel and wires are optional.
Each type of parts strictly implemented European ROHS environmental standards.
Contacts are optional with normally closed Model B and normally open Model K.
Specifications
|
Item No.
|
HCET-A/TB02
|
|
Electrical specifications
|
2.5A/250VAC
|
|
5A/120VAC
|
|
10A/12VDC
|
|
5A/24VDC
|
|
Operating temperature range
|
30°C-155°C
|
|
Temperature tolerance
|
± 3°C, ± 5°C
|
|
Case material
|
Plastic and metal
|
|
Case size(mm)
|
12*5.4*2.4
|
|
Wire
|
3398 22#
|
Applications
 |
 |
 |
 |

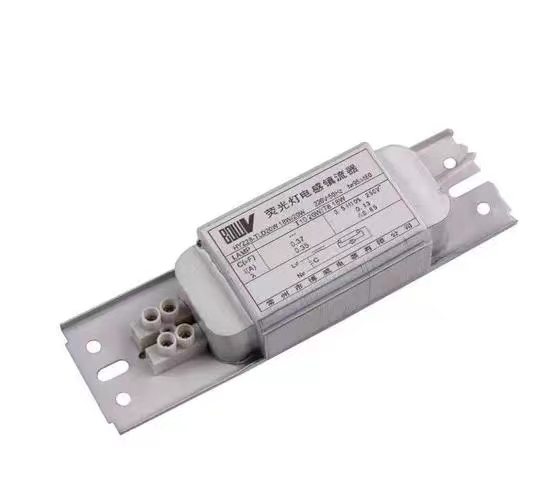

| Ballasts |

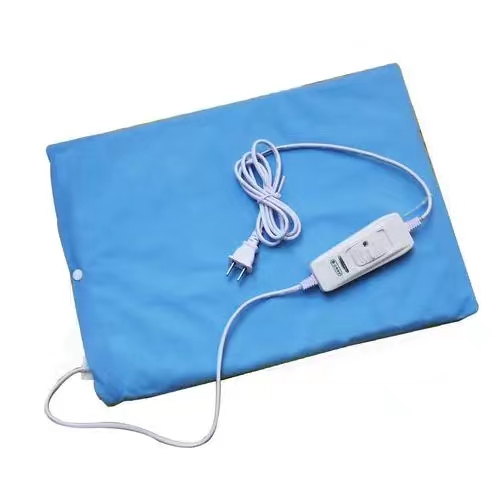

Heating pads |

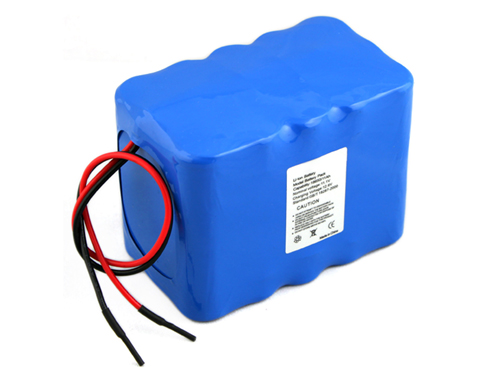

Lithium batteries |

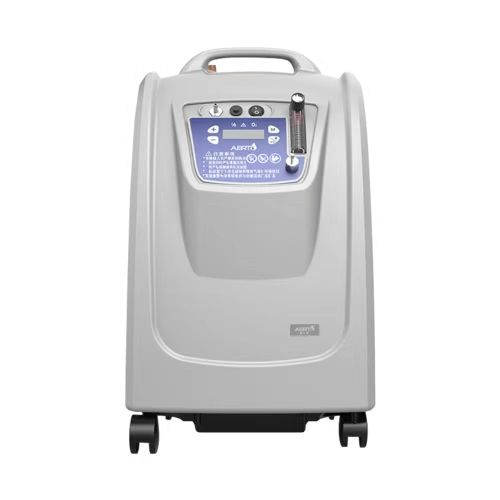

Oxygen machines |
 |
 |
 |
 |

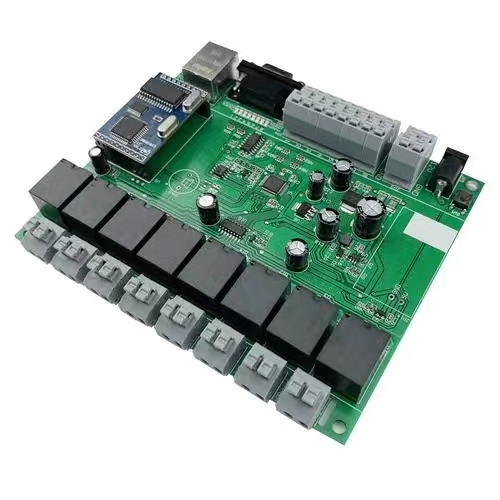

| PC circuit boards |

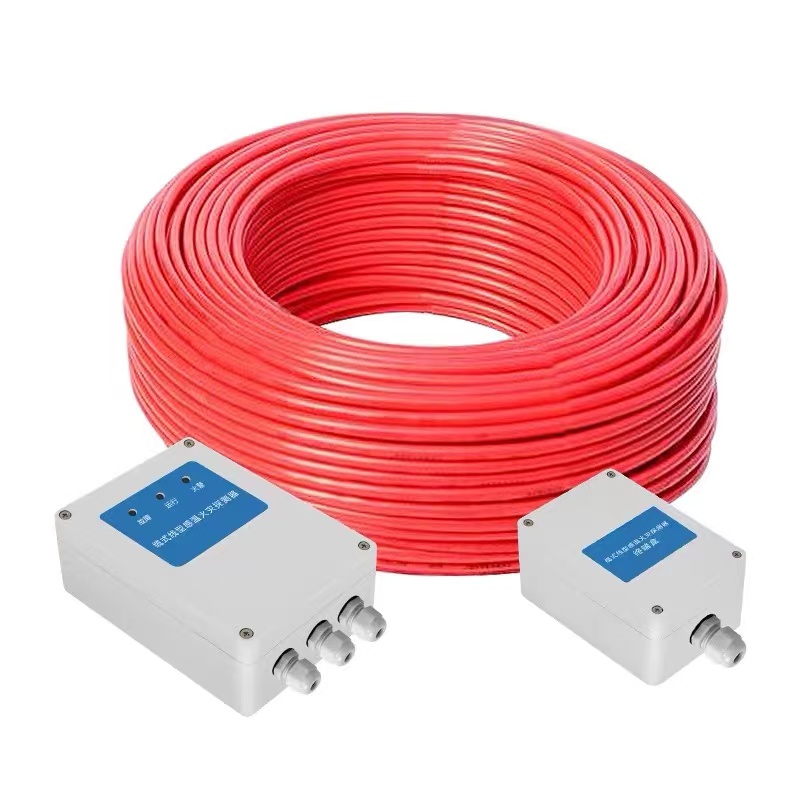

Temperature sensing cables |

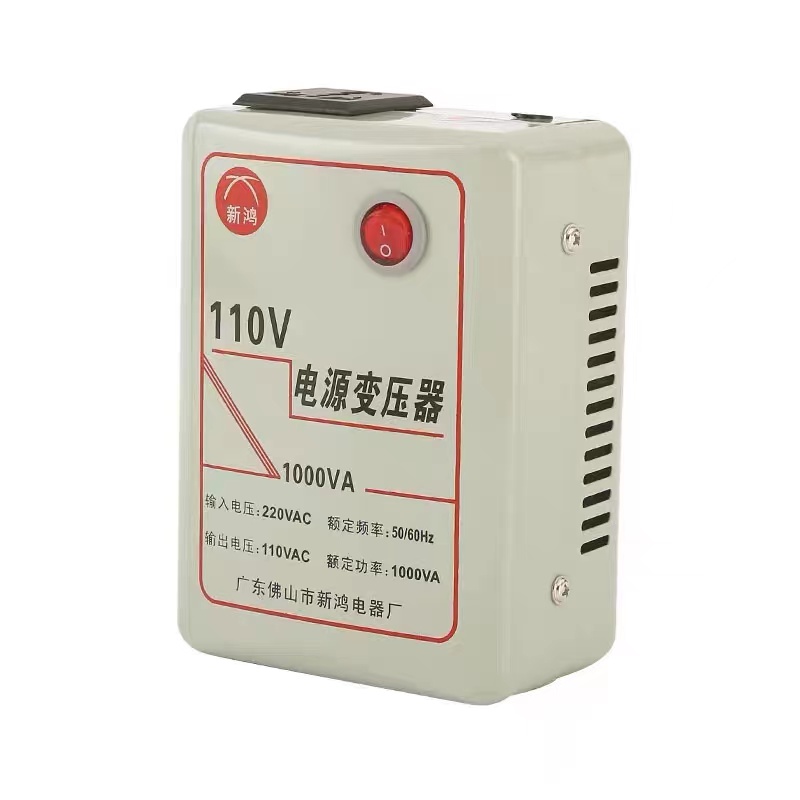

Transformers |

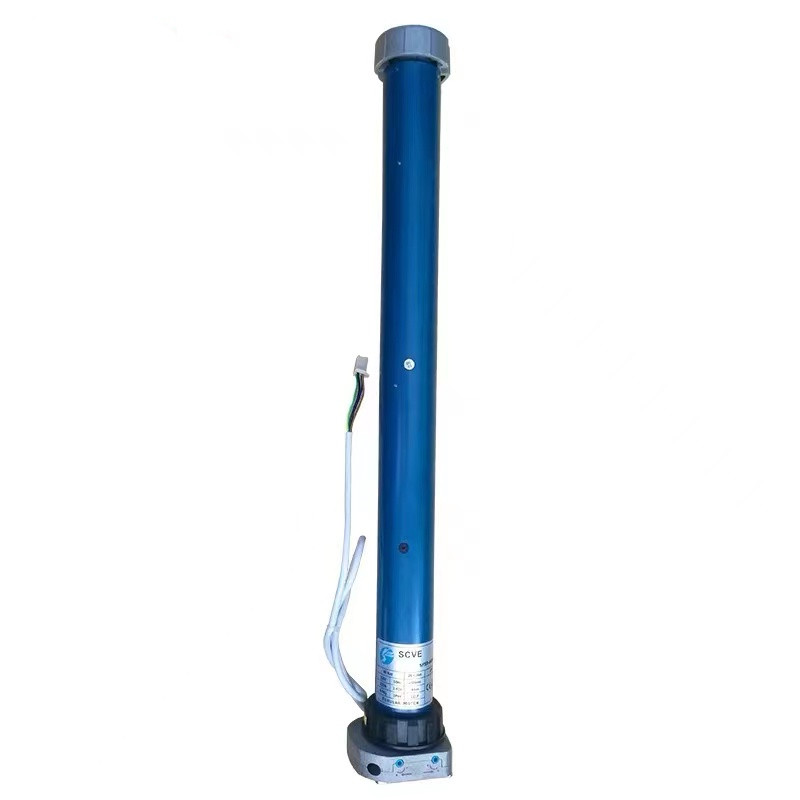

Tubular motors |

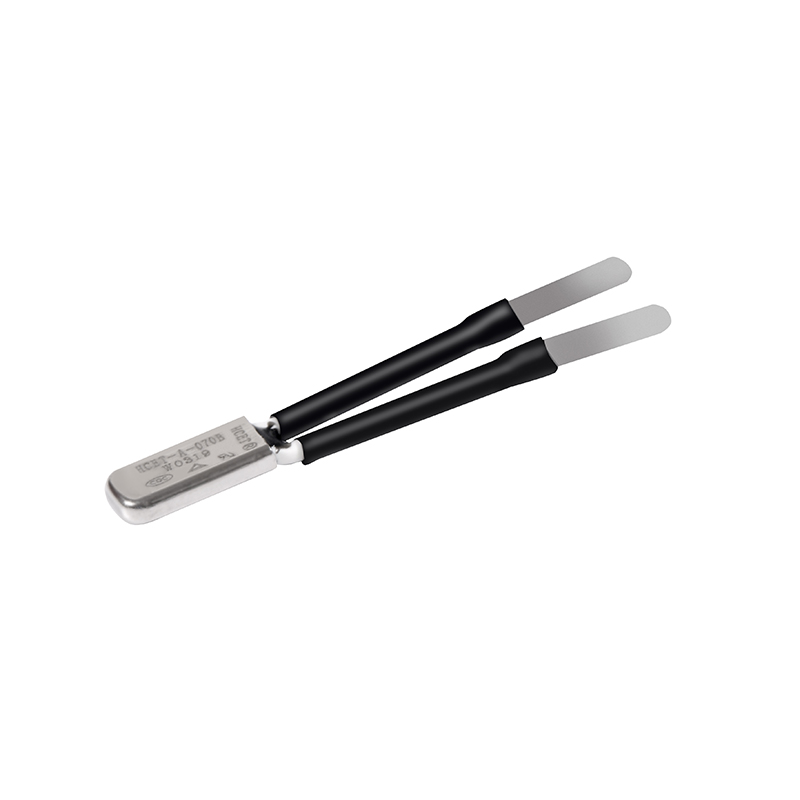

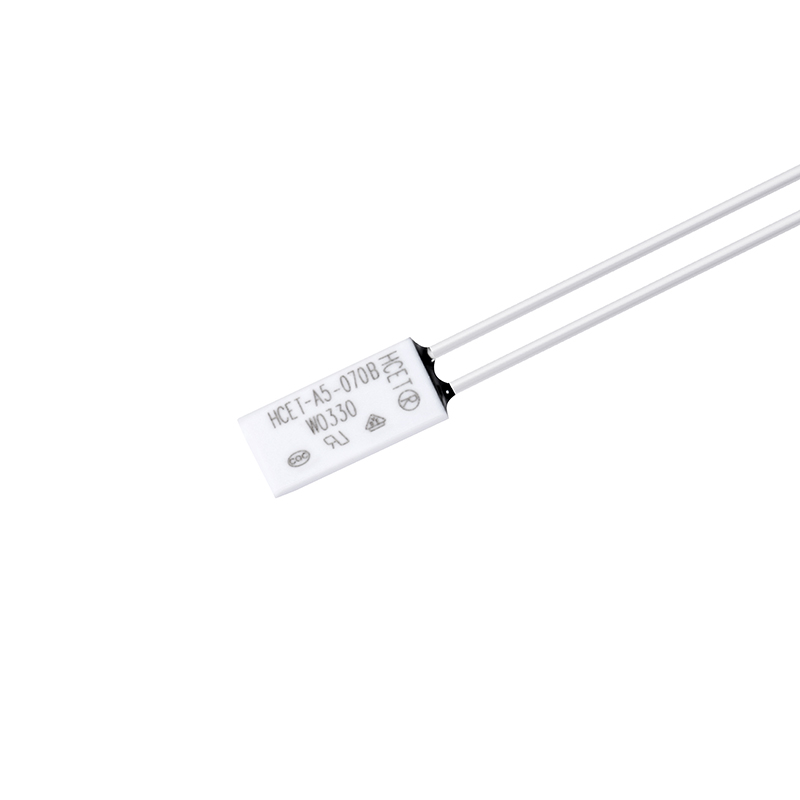

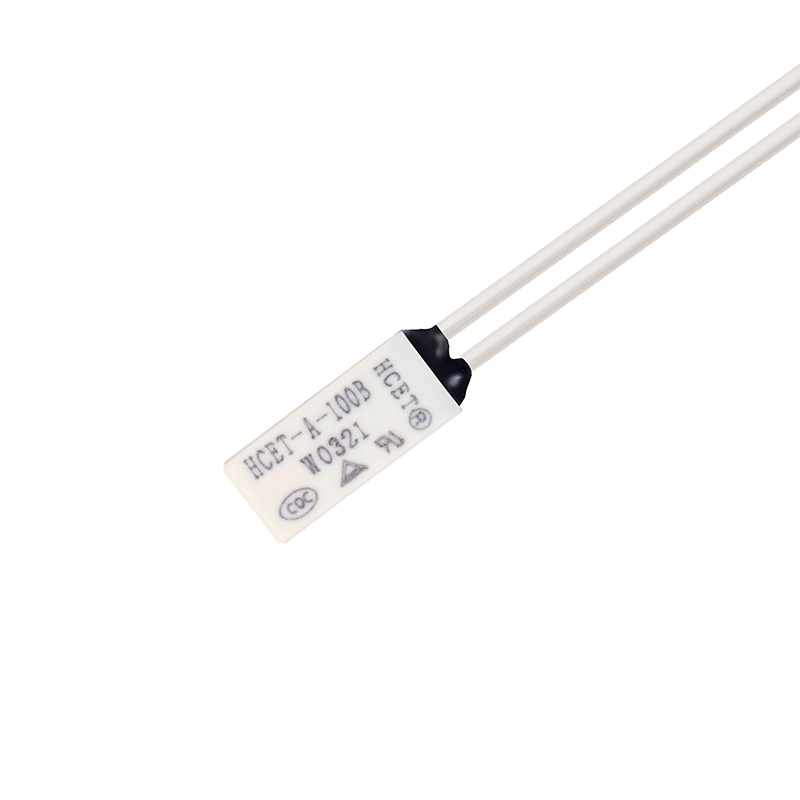

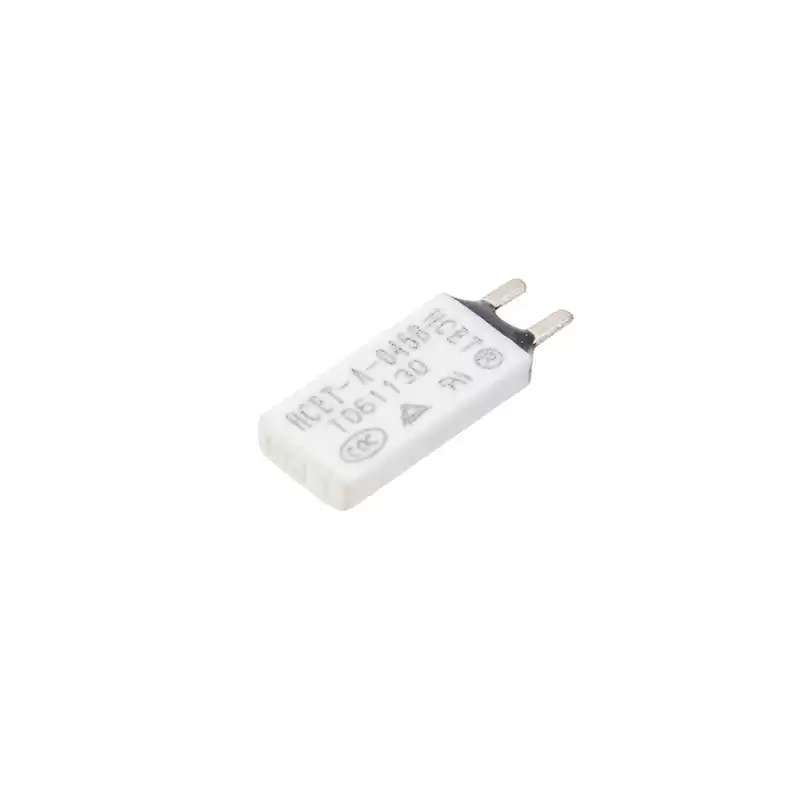

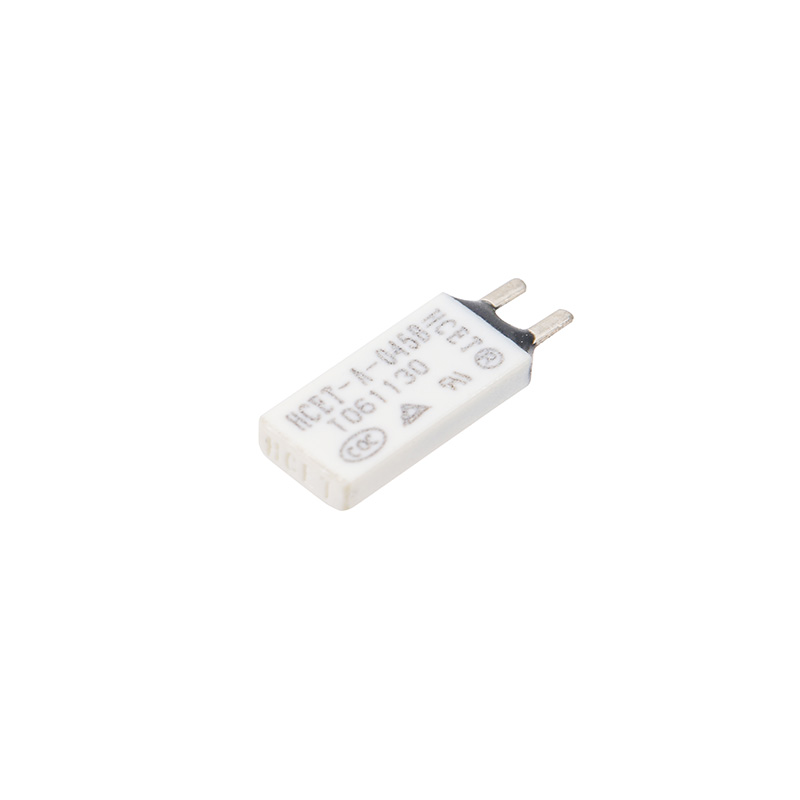

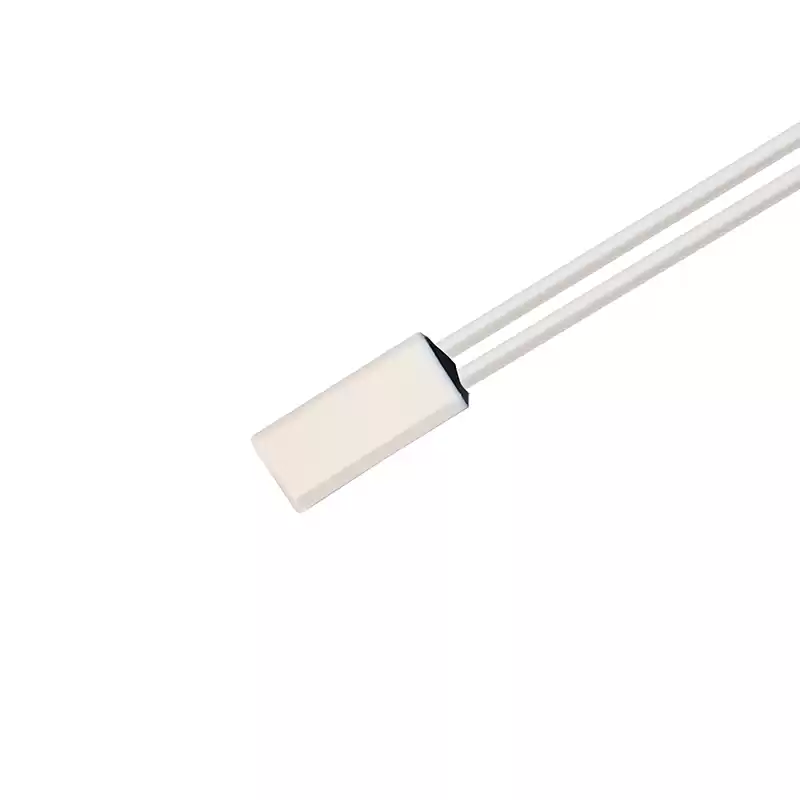

Product display

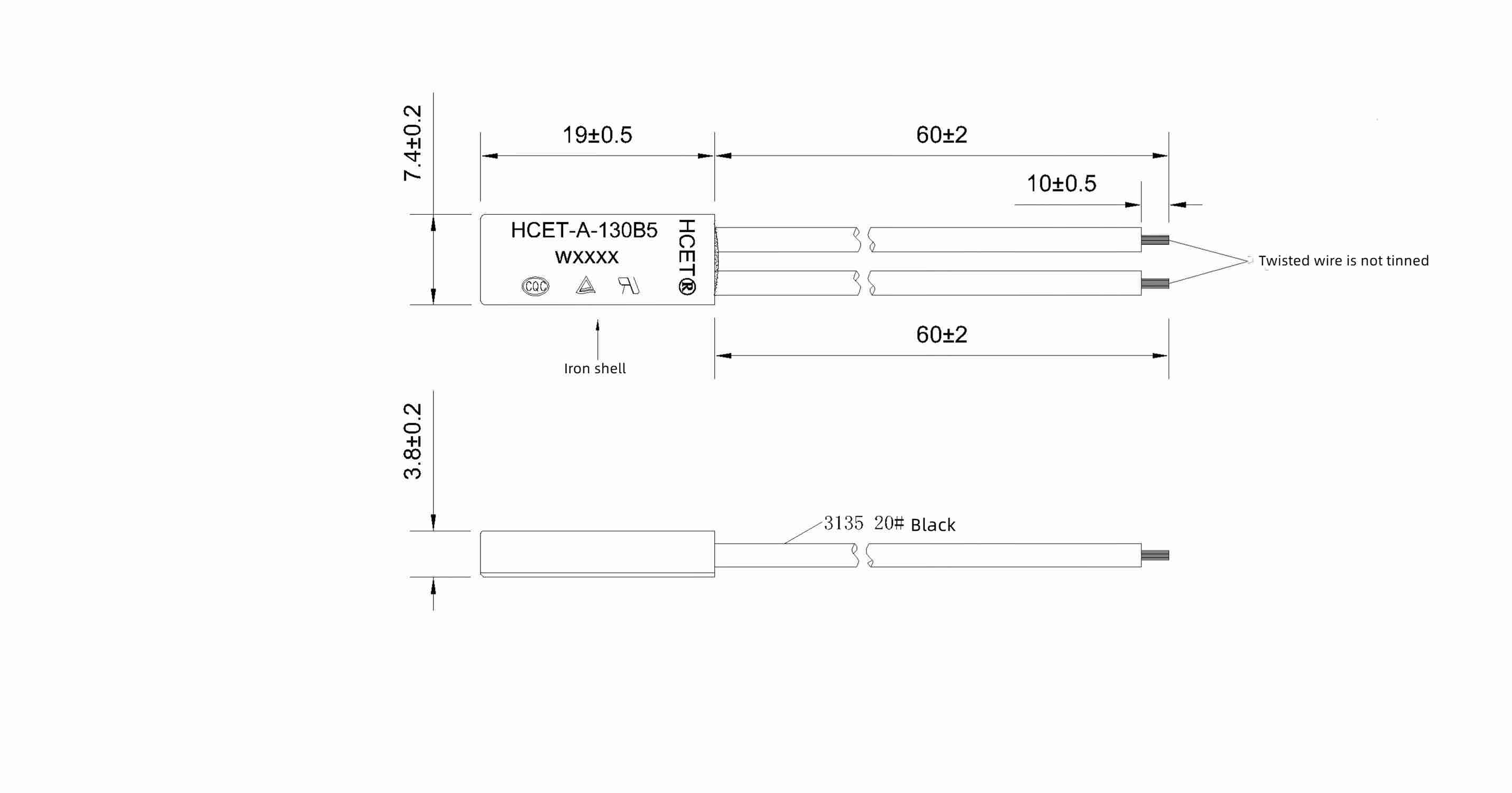

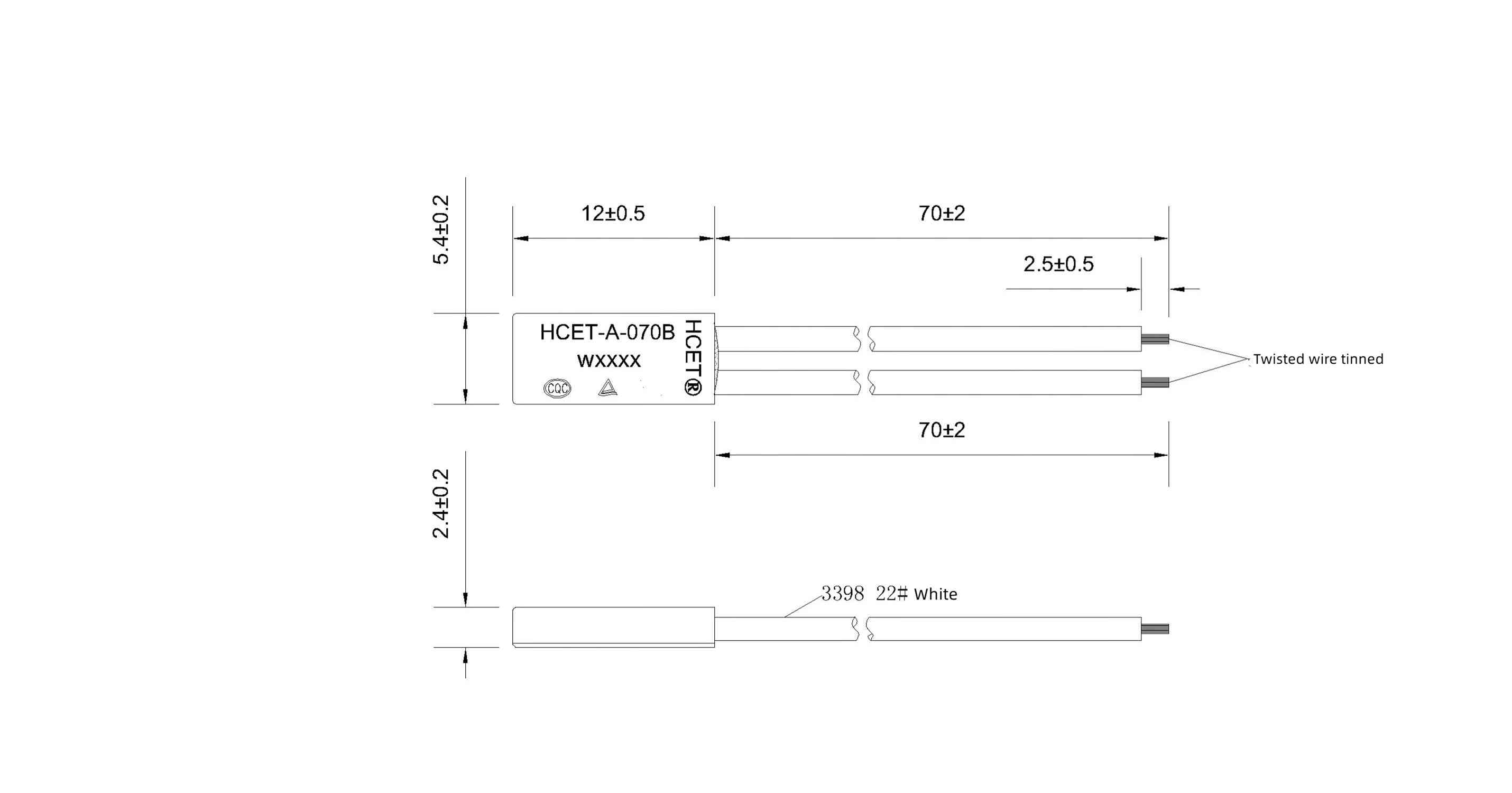

Size details
Packing & Delivery
Packing:
Packed in standard export cartons.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery time:
Delivery time for small orders:7-15 days.
Delivery time for special requirements orders:15-30 days.
Why choose HCET
1. We have our own R&D team and have obtained dozens of patents.
2. Our products have passed UI, TUV, CQC, ISO/TS16949, CTI, SGS and other international authoritative certifications, and the quality is stable and reliable.
3. Our products have complete functions and specifications, and can also be customized according to customer requirements.
4. We have complete equipment, high productivity and can deliver quickly.
