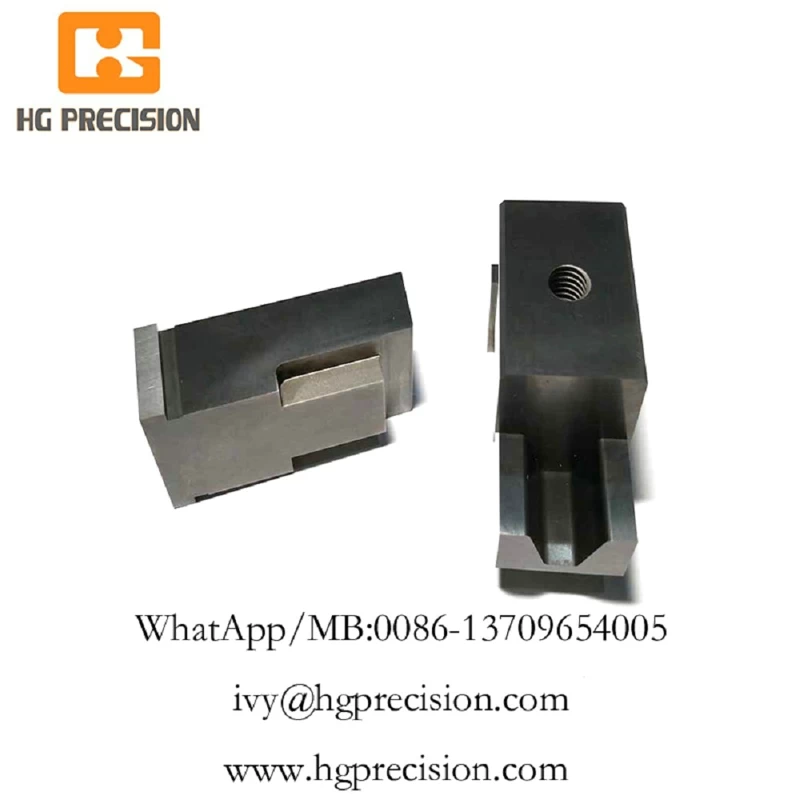

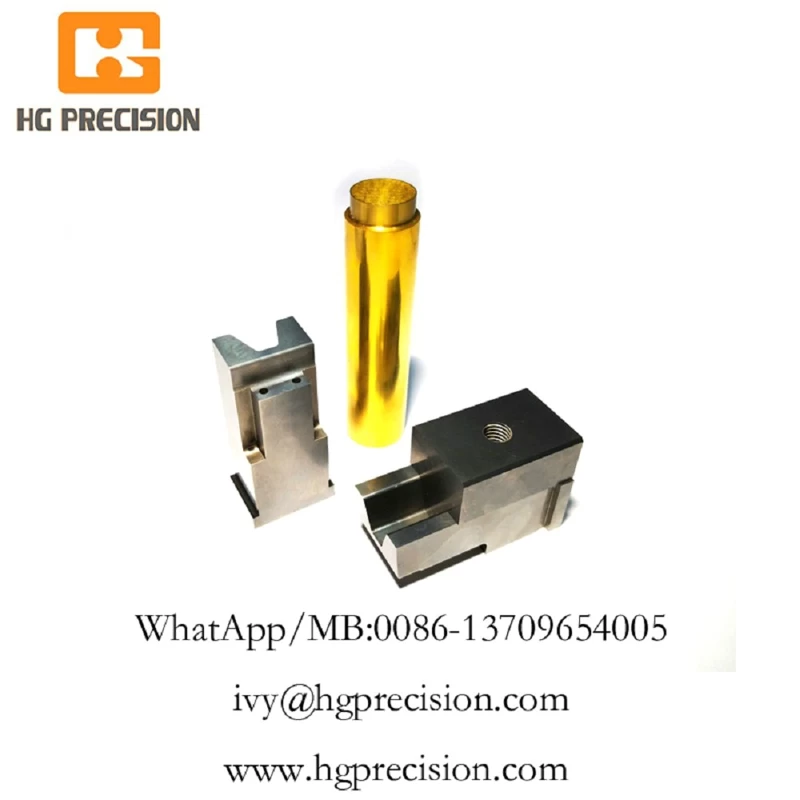

Precision Carbide Punch Set
Material: V30, G20, YG20, K10, KD20, MG30,
G5
HG Precision manufactures a wide range of
standard and specialized carbide parts such as punches, die inserts, jigs, pilots and other die components. We can
offer a superior point finish of an Ra4 or more high accuracy.
Hardness: HRA88-89
Specifications and variables.
Precision form ground to close diameter
tolerance: +000.2/-0.002
Comon fractional sizes are available.
Custom size can be made to order up to 0.02
diameter.
Capable of precision grinding of ID, OD and
face mirror polishing, with minimum reaching 01mm, assembly clearance 0.01mm
high accuracy.
Our product are:
Press die mold component punch
Plastic mold components
CNC machining parts
Core Pin
Pilot pin
Sheet Metal Stamping Parts
Carbide Surface:
Tin, Ticn
We believe that good quality is made,
rather than out of the inspeciton, we will overall quality consciousness into
manufacturing product process of each process. From the raw material purchases
to the processing to final packagingand shipment. In the process of every
detail has established strict quality inspection standard, and
effectivimplementation. At the same time, the application of advanced quality
management technique, process quality control and prevent errors inadvance.
