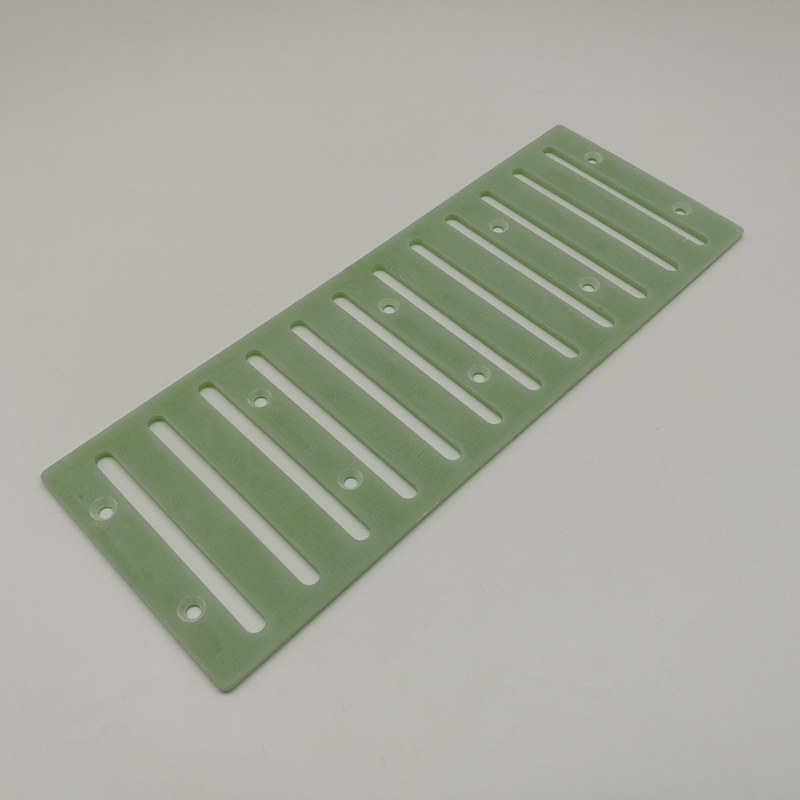

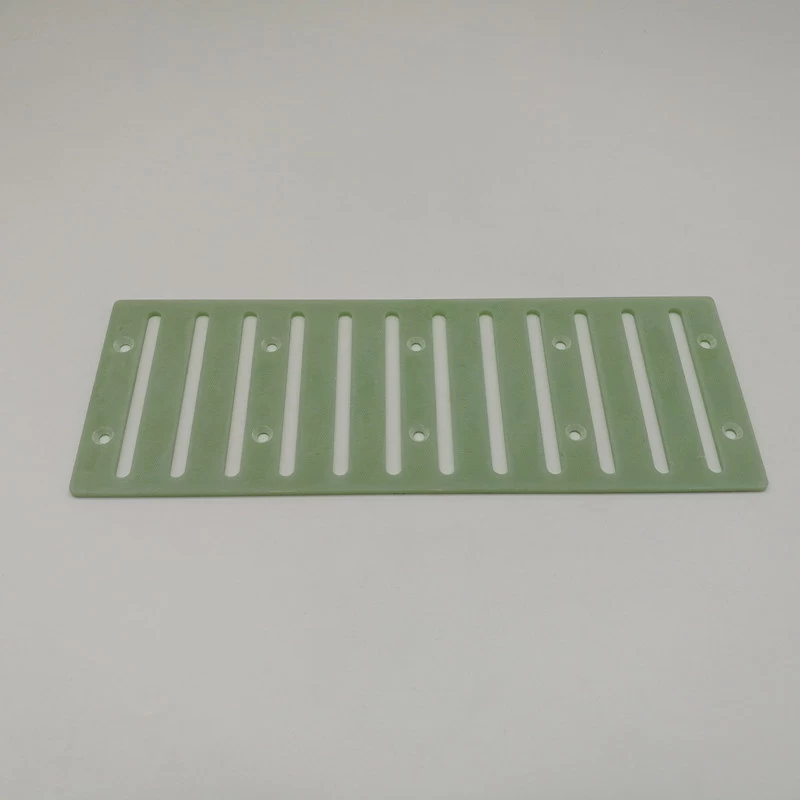

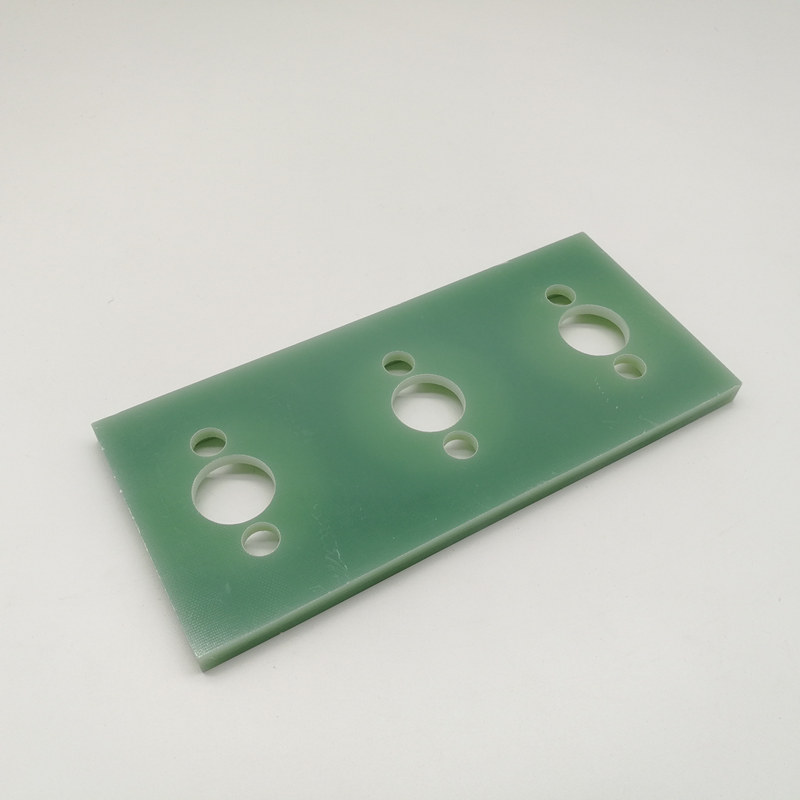

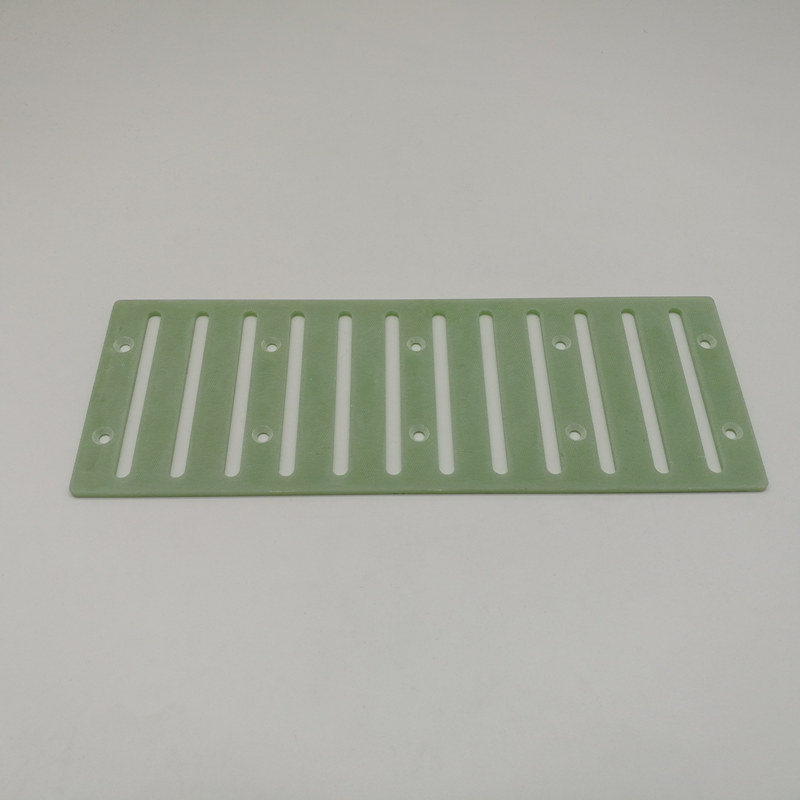

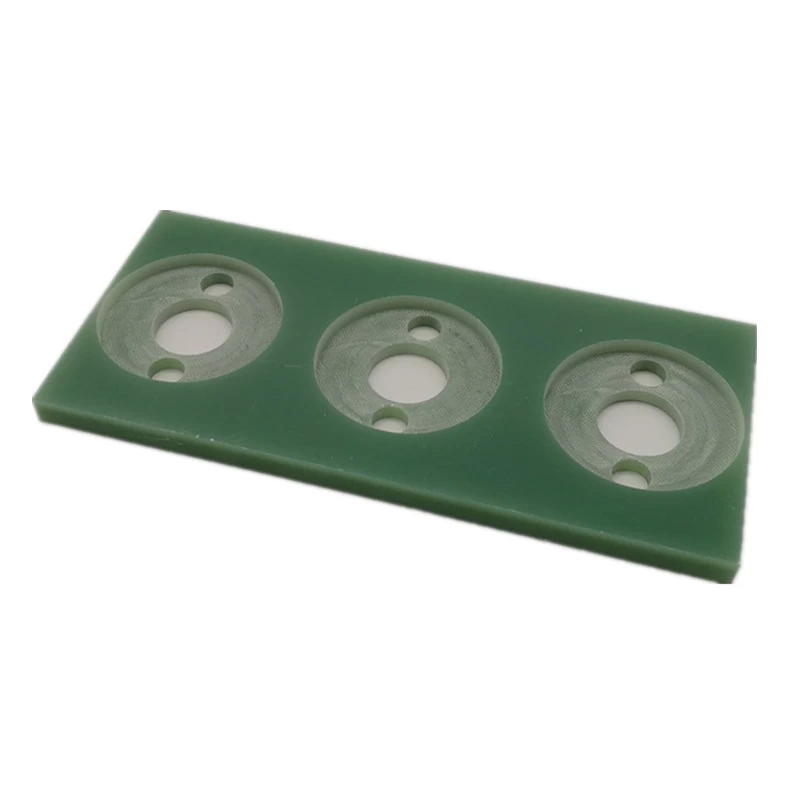

Precision cnc milling fr4 g10 epoxy fiberglass resin components for transformer

1. Good flatness, smooth surface, no pits, standard thickness tolerance.
2. Low water absorption, good moisture resistance and good dielectric performance.
3. stable electrical insulation performance, in dry or wet conditions have good electrical performance.
4. high mechanical strength, good machinability.Drilling, drilling, processing, cutting.
5. Good machinability.
6. Stable electrical performance at high temperature.
7. High mechanical and dielectric properties.



G10/FR4 Machining:

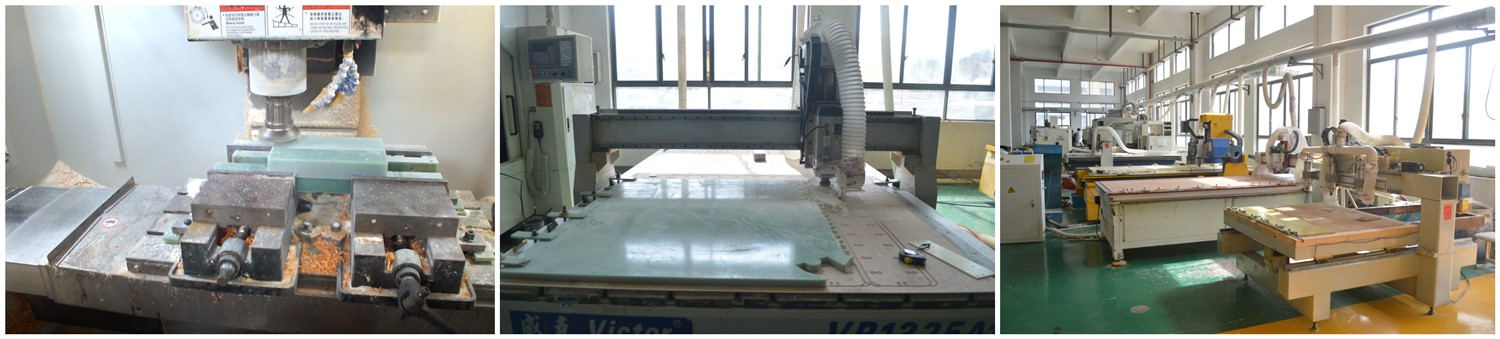

JY Machinery offers Composite Insulating Materials, including 3240, FR4, FR5, G10, G11 epoxy fiberglass sheet, GPO-3, SMC Unsaturated polyester sheet, bakelite sheet,phenolic cloth/paper sheet and various deep processing products. The company has various types of gluding machines, dryers, presses, laser cutters and sanders. Introducing advanced Korean engraving machins and automatic CNC machines. We carry out deep processing of different non-metallic materials according to customers’ pictures, CAD drawing or samples.

Request a Quote today.

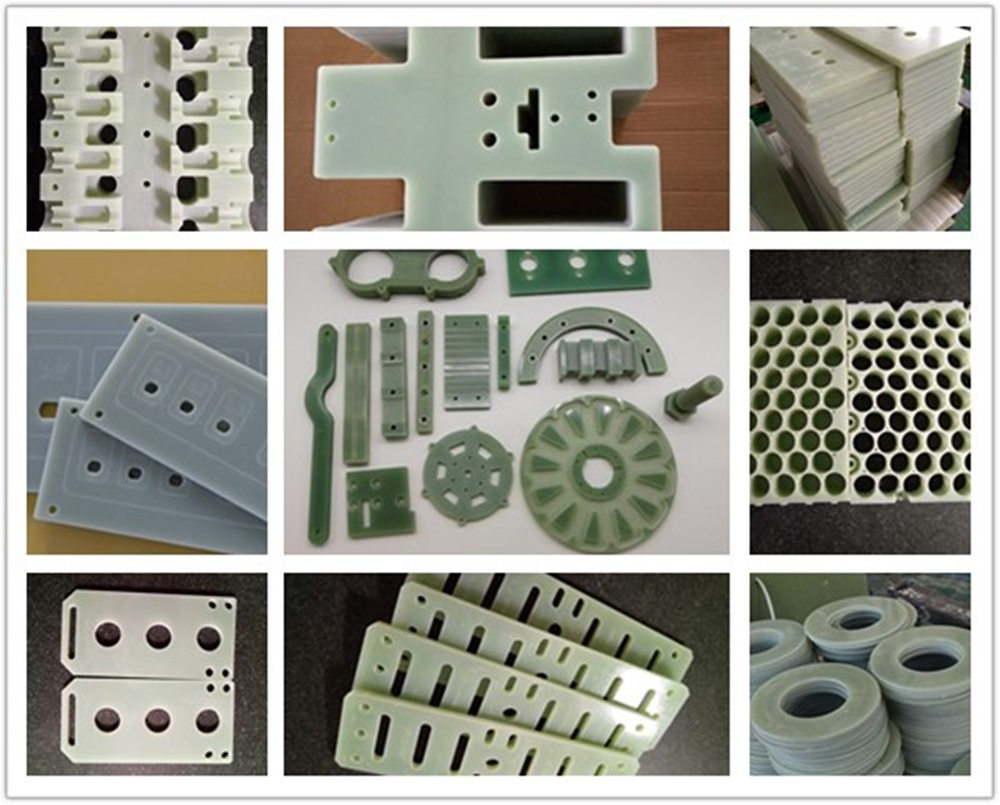

PRODUCT SHOW:





Product Parameter:

Product Name

Epoxy glassfiber laminate sheet

Material

Epoxy resin+Electrical grade glassfiber cloth

Color

Light green,black,yellow

Standard

DIN GB ISO JIS BA ANSI

Grade

G10,FR4,G11,3240

Density

2g/cm^3

Bending strength (vertical)

320Mpa

Impact strength (horizontal)

30Kc/m^2

Breakdown voltage (Horizontal)

33KV

Insulation parameter

1*10^9

Water absorption

12mg/1mm

Glass transition

125℃



OUR INSULATION PROUCTS RANGE:


•Epoxy Glass Fiber cloth laminated sheet series环氧玻璃布层压板系列

•Phenolic laminated sheet series酚醛层压板系列

•Polyester Laminated sheets series聚酯板材系列

•SMC/BMC/DMC Molded Parts团状模塑料

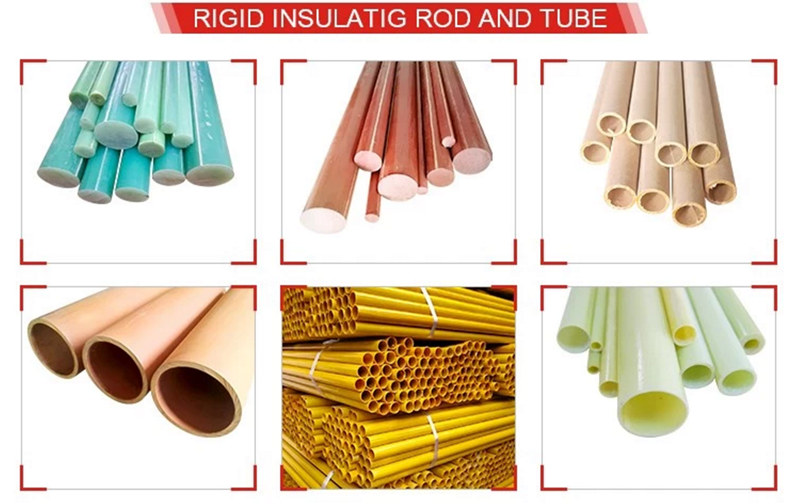

•Insulation Rods&Tubes绝缘管棒

•Pultruded Profiles拉挤型材

•Engineering Plastics Parts工程塑胶制品

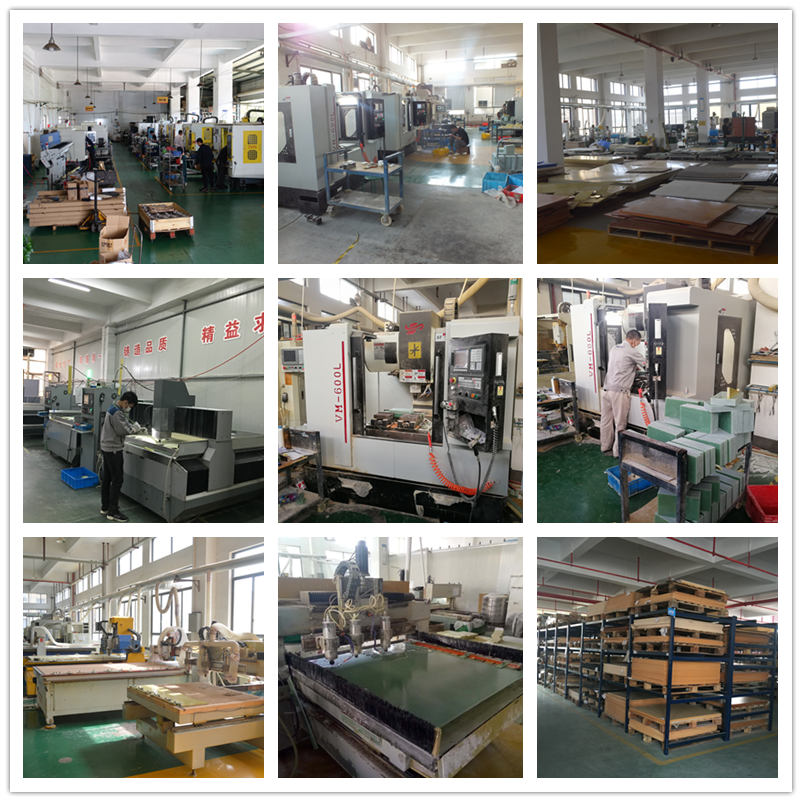

OUR COMPANY:


JY Machinery has strong technical strength and adhere to“Technical Innovation as the guide”. After more than 10 years of development, our company
has a full range of insulated products. Sheets & Rods from thin to extra-thick to meet different needs of the customers. With the excellent quality and
service, we are the supplier of the well-known ernterprices like ABB, Siemens, etc and provide technical support and insulation material supply for many
big metro projects, like Doha, Beijing, Hanghzou, Ningbo metros. Our products are widely used in rail transit, power transmission and transformation, new
energy, aerospace, shipbuilding, military, electronics, etc. At present, the products has been exported to many countries and has won high praise of
customers at home and abroad.

We strive to create the most professional manufacturers of insulating materials and non-metal materials processing enterprise. Find the best solution for
your various applications. Welcome to speak with JY MACHINERY for setting up win-win partnership.
