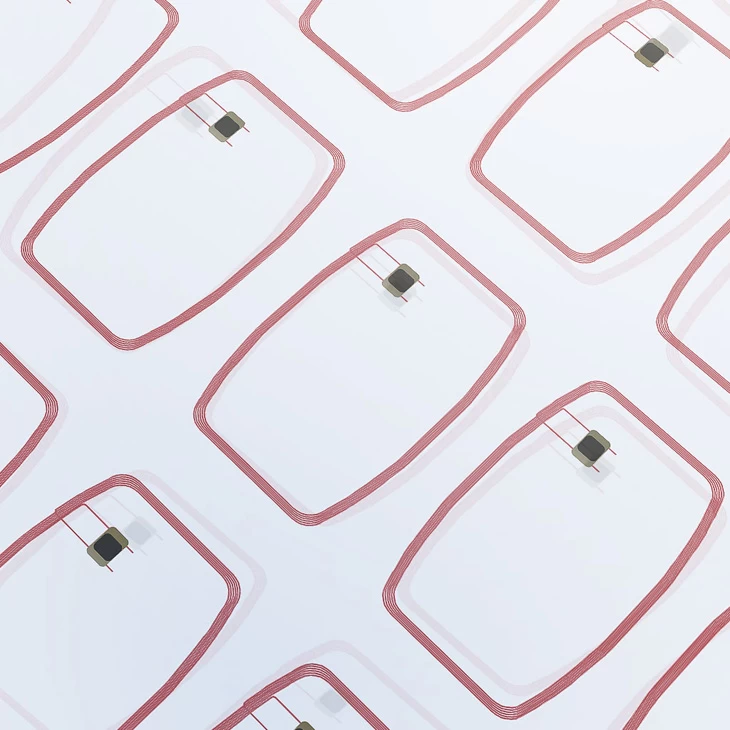

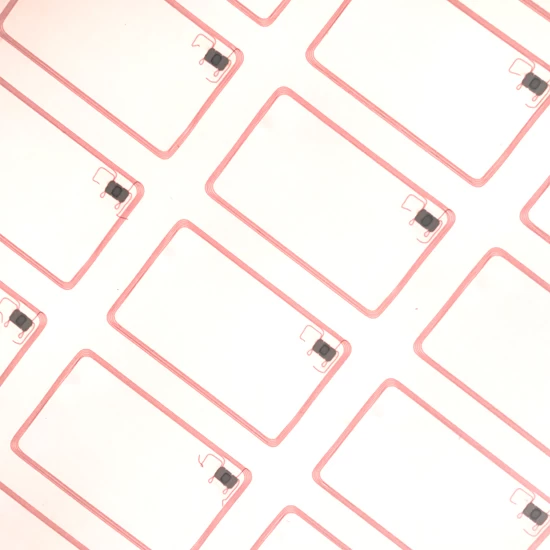

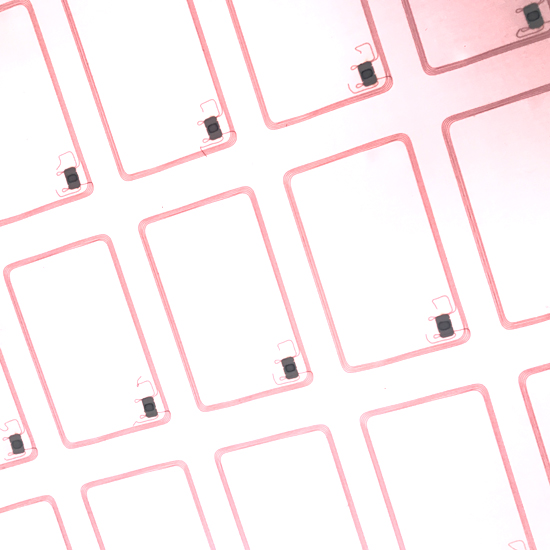

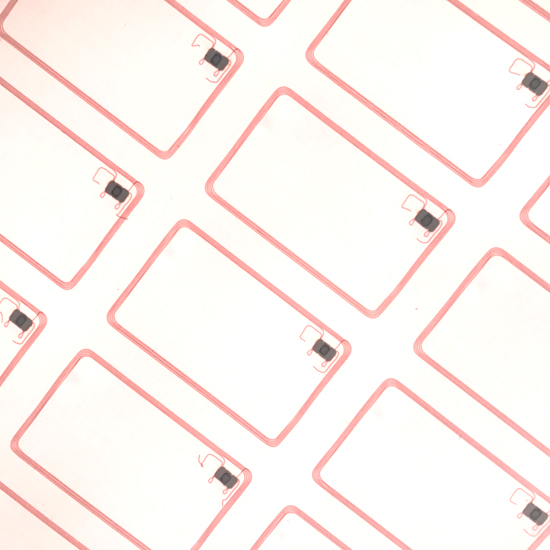

Product Name:Prelaminationed 13.56MHZ HF Inlay Sheet

Description
Meihe prepressed inlays are designed specifically with the card manufacturer in mind. The inlay is engineered to remove process difficulties and offer an exceptional product. We make the card manufacturer's job easier without sacrificing quality.

Specification
1.Operating Frequency: LF 125KHz,
2.Chip IC: F08, MIFARE 1K, MIFARE 4K, MIFARE Ultralight, MIFARE DESFire EV1, I CODE SLI,
3.Protocol: ISO1443,ISO15693,ISO18000
4.Material: PVC/PET

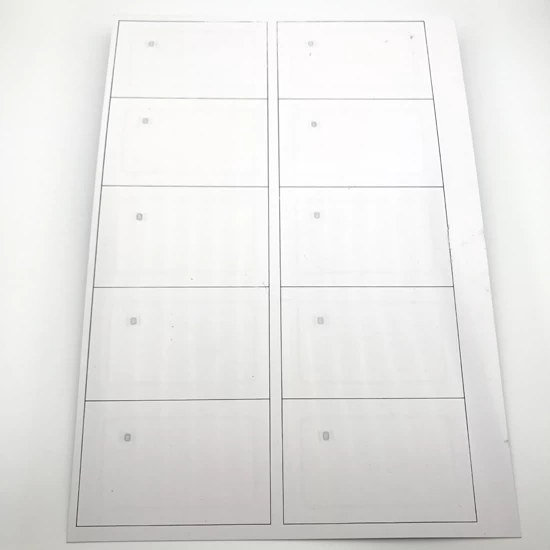

5.Dimension: 310mm*468mm,Max size 520mm*420mm,A4 210mm*297mm
6.Layout: 3*7,5*5,3*8,4*8,4*6,2*5,2*4, or any customization of CR80 card or any unit antenna
7.Thickness: HF: normal 0.45mm, 0.5mm,min 0.3mm
                    LF: normal 0.6mm,min 0.5mm
                    UHF: 0.6mm,0.5mm
8.Antenna: HF:air antenna,altrasonic embeding or air etching
                 LF:air antenna or altrasonic embeding
                 UHF:AL etching
9.Bonding: LF: wire bonding
                 HF:FUDAN,ULTRALIGHT,ICODE SLI
                 UHF: ALIEN, H3
10.Read range: depands on the reader and the chip
11.Working temperature: -25℃~55℃
12.Storage temperature: -25℃~65℃

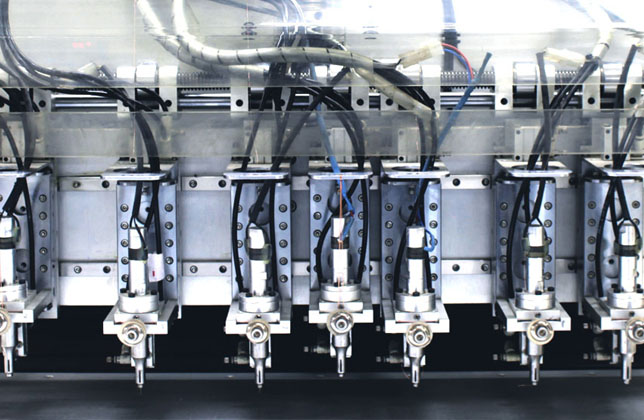

Fully Automatic Process
