Pressure Regulating Unit

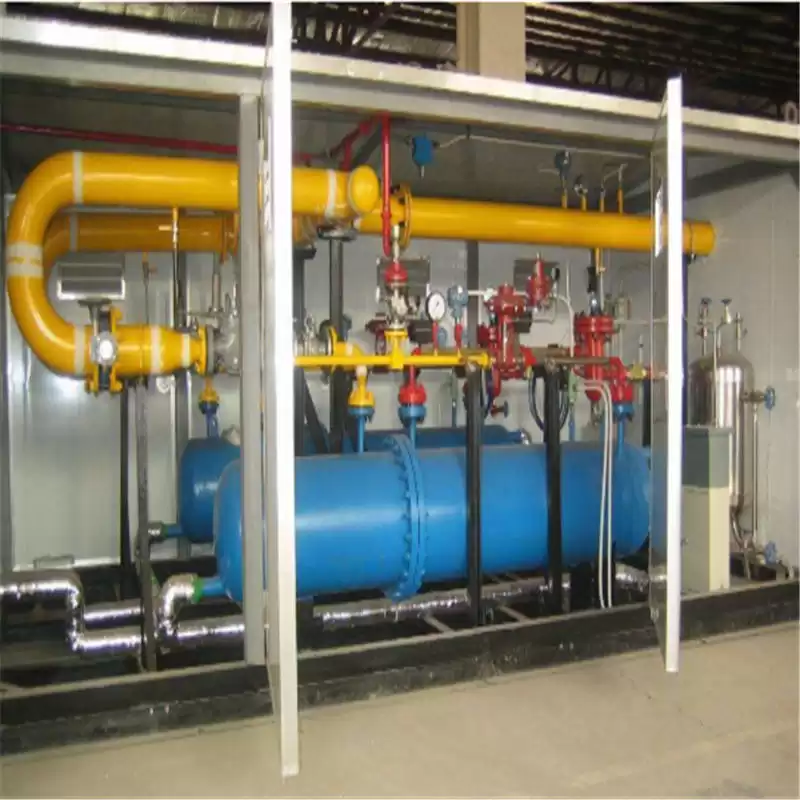

CNG Pressure Regulator Skid, the incoming air in the tanker is regulated by the decompression device and then supplied to the downstream device.
Features
-
Skid mounted, pre-packaged
-
Automatic control, automatic cut off
Technical Parameters
|
Design Capacity
|
500-3000 Nm3/h
|
|
|
Inlet temperature
|
5～20℃
|
|
|
Discharge ttemperaturetemperature
temperature temperature
|
5～20℃
|
|
|
Inlet
pressure
|
20～25 MPa
|
Inlet pressure
display
|
|
Discharge pressure
|
0.2~0.4Mpa
|
Outlet
pressure display
|
|
Pressure regulating process structure
|
2+0
|
Regulator
with overpressure cut protection
|
|
Metering process structure
|
1
|
Flow meter
on-site display
|
|
Inlet caliber
|
DN25mm
|
Required
with mating flange
|
|
Outlet caliber
|
DN80mm
|
Required
with mating flange
|
|
Installation method
|
|
Skid mounted,
open air installation
|
