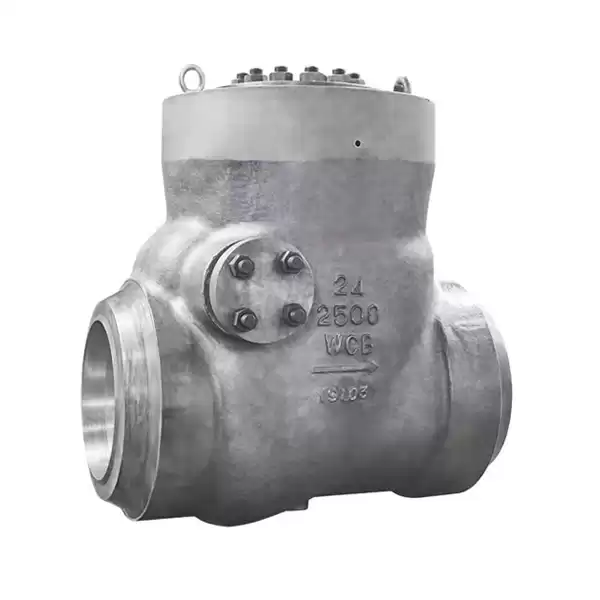

Pressure Seal Swing Check Valve 24Inch 2500LB WCB

API 594 Pressure Seal Swing Check Valve

24Inch,2500LB,WCB,CF8+STL

Manufacture STAVAL Factory Offers.

Key Specification

Type	Swing Check Valve
Size	24Inch
Pressure	2500LB
Construction	Pressure Seal, Full Bore, Full Open, External Hinge
Connection	BW End
Body Material	A216 WCB+STL
Cover Material	ASTM A105
Disc Material	ASTM A351 CF8
Hinge Material	ASTM A351 CF8
Hinge Pin Material	A182 F304
Bolt/Nut	B8/8
Design Standard	BS1868 / ASME B16.34
Face to Face Dimension	ASME B16.10
End Connection	ASMEB 16.5
Inspection & Test Std.	API598
Temperature Range	-29℃~+450℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
