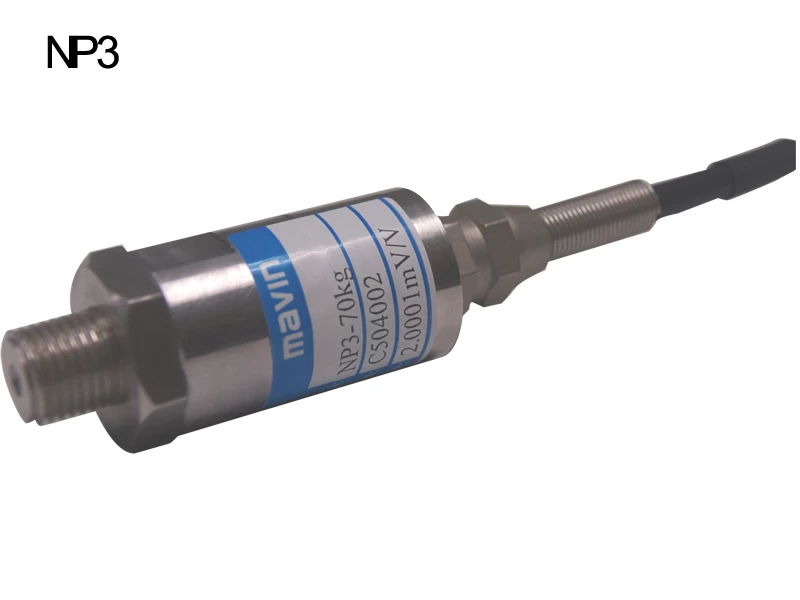

Pressure transducer NP3
The NP3 is an Oil Forced Pressure Transducer. With a special purpose for testing force, the stainless steel force sensor is suitable for Force measurement, Fork Lift Truck scale, Industrial weighing scale, Automation weighing systems.
Key Features：
Low
profile
Stainless
Steel / steel alloy Construction
Capacity: 100，200，350，500
( kgf / cm2 )
Accuracy:0.2%R.O.
Protection class:IP67/PI68
Rated Output: 1.0 mV/V±1%
Usage & Applications：
Pressure
transducer
Force measurement
Fork Lift Truck
Industrial weighing
system

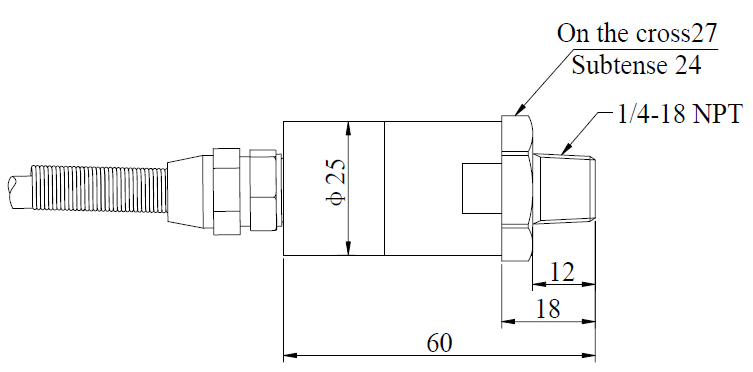

Dimension：
NP3 Specification：
|
Rated Capacities
|
100, 200, 350, 500 (kgf / cm2 )
|
|
Rated Output
|
1.0 mV/V±1%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.2 %R.O.
|
|
Hysteresis
|
0.2 %R.O.
|
|
Repeatability
|
0.2 %R.O.
|
|
30mins Creep
|
0.2 %R.O.
|
|
30mins Return
|
0.2 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.02 %R.O./℃
|
|
Temperature Effect On Zero
|
0.02 %R.O./℃
|
|
Input Impedance
|
390±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel Alloy; Stainless Steel
|
|
Protection Class
|
IP67 / IP68
|
|
Cable
|
φ5×1.8m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
